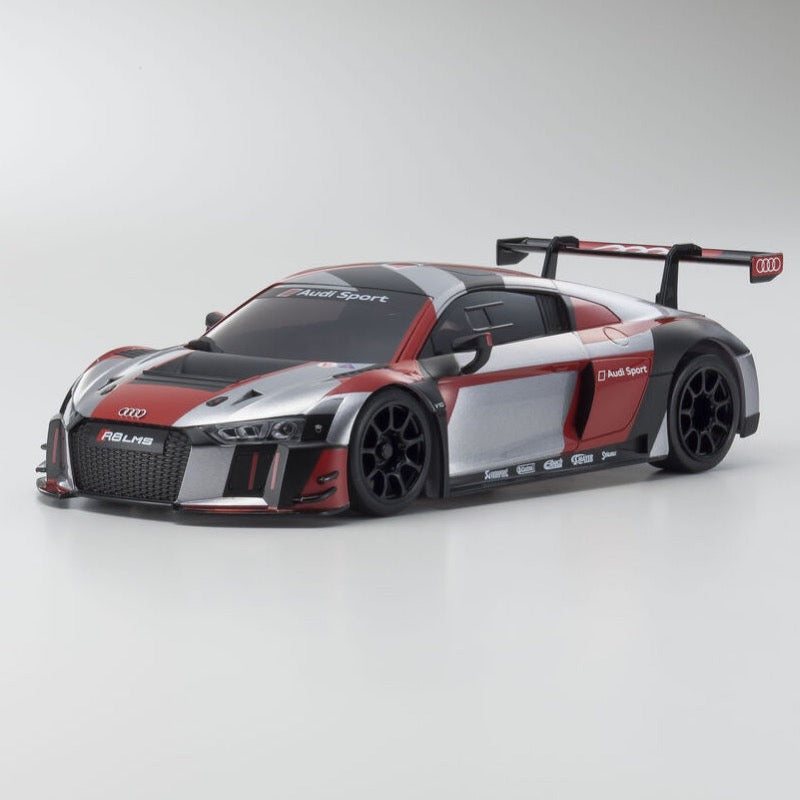

Kyosho Mini-Z Audi R8 LMS 2016 "Gray/Red" RWD MR-04 Readyset 32357RGB

Latest high-performance MR-04 chassis

Now the standard MINI-Z RWD model!

Enjoy the full experience of high-performance R/C car racing right out of the box; just insert batteries into the car and transmitter. This is the simplicity of Kyosho Readyset packages. The small scale of the MINI-Z Racer is ideal for driving indoors and for people just becoming familiar with R/C cars. This MINI-Z RWD Readyset includes a renewed 2-wheel drive chassis at its core. Previous Readyset packages incorporated the 3rd generation MR-03 chassis, but the new RWD Readyset includes the 4th generation MR-04 chassis that was first released in 2023. While retaining some basic elements of the MR-03 design, the new MR-04 demonstrated its lower center of gravity and remodeled steering design with blistering speed and excellent handling in the top-of-the-line EVO2 debut model. The MR-04 chassis is mounted with R/C system and features a completed body finished to display model standard. This Readyset includes the same standard MR-04 chassis as other high-end MR-04 models and includes user-friendly 130-class brushed motor and the reliable Syncro KT-531P pistol grip transmitter. Just insert 4 x AAA alkaline batteries into both the car and the transmitter, and you’re ready for the fun to begin. High-performance comes straight from the standard setup, but you can tune up for elite-level performance with a wide range of MINI-Z optional parts. With its dynamic maneuverability display model finish, the updated MR-04 chassis takes the authentic R/C experience to a higher level.

• Recreation of Team Phoenix Racing’s Audi R8 LMS with its signature blue and yellow Bilstein livery that scorched the 2010 Nürburgring 24 hour race.
• While retaining the best aspects of the MR-03, the lower center of gravity of the new MR-04 delivers significant performance improvements. The easier control of the MR-04 makes it an ideal introduction to R/C cars.

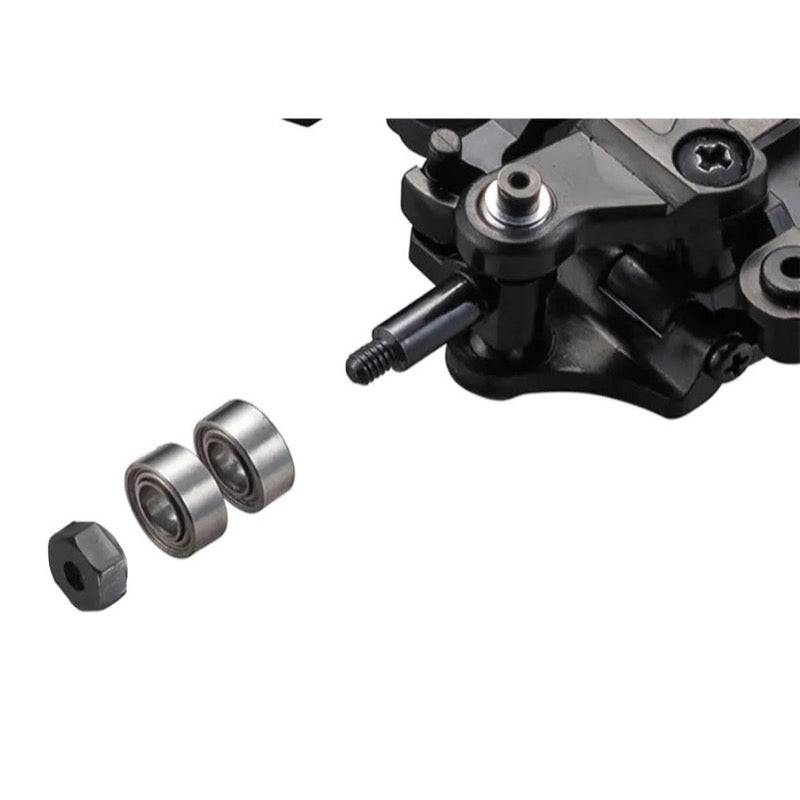

• New front knuckles with integrated kingpins reduce scrub by 1.5mm on each side compared to the MR-03, realizing sharper and more linear control. The change to 3mm inner diameter ball bearings also reduces rotational resistance.

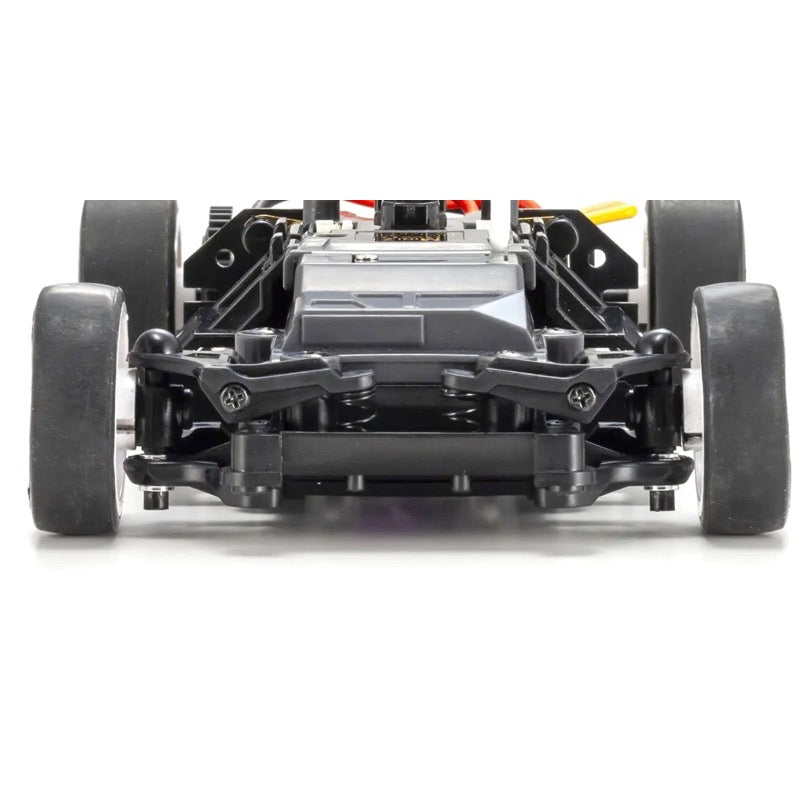

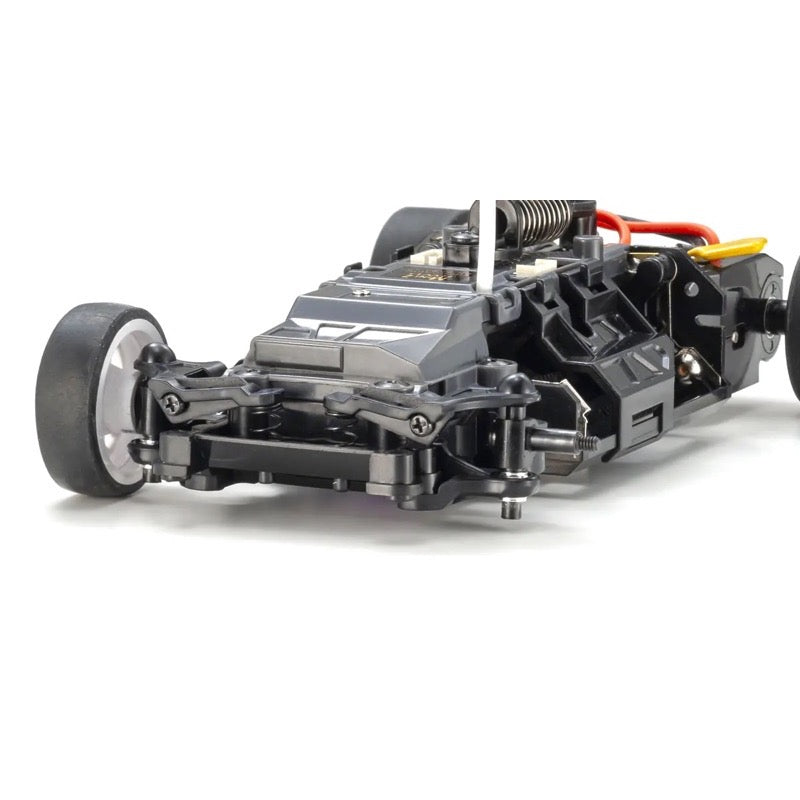

• Front suspension dynamically aligns the camber angle with movement of the upper arm to maintain optimal tire contact during cornering. Revised caster angle also delivers improved steering response.
• The car is powered by four AAA alkaline or rechargeable nickel-metal hydride batteries. The batteries are mounted lower than the MR-03, lowering the center of gravity of the entire chassis to deliver improved cornering stability and straight-line handling.

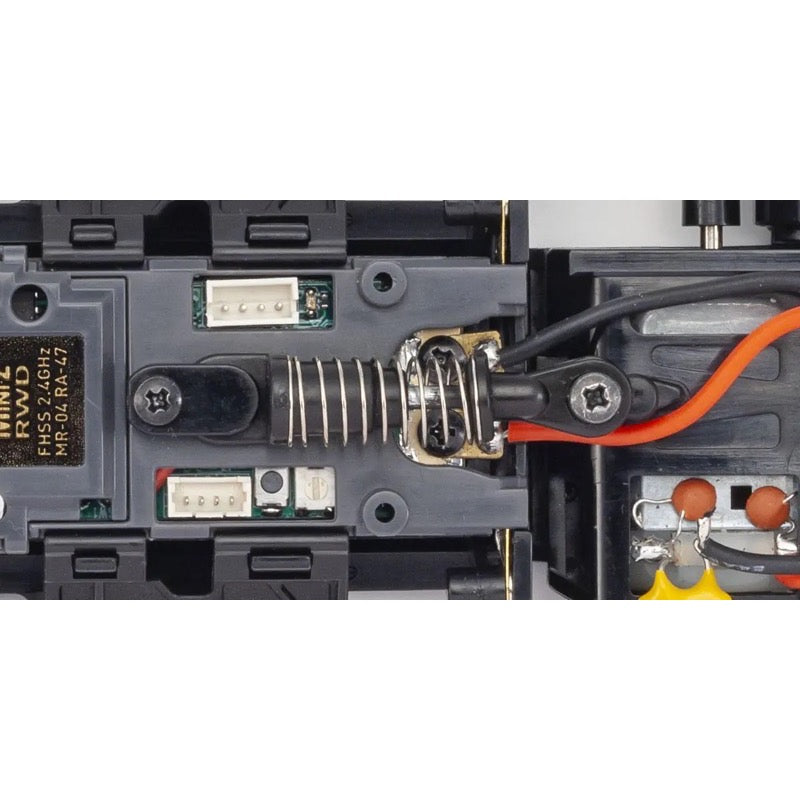

• The rear suspension uses a coil spring damper to cushion shocks from the road surface and improve driving stability. It can also be upgraded to an optional oil-filled shock absorber.

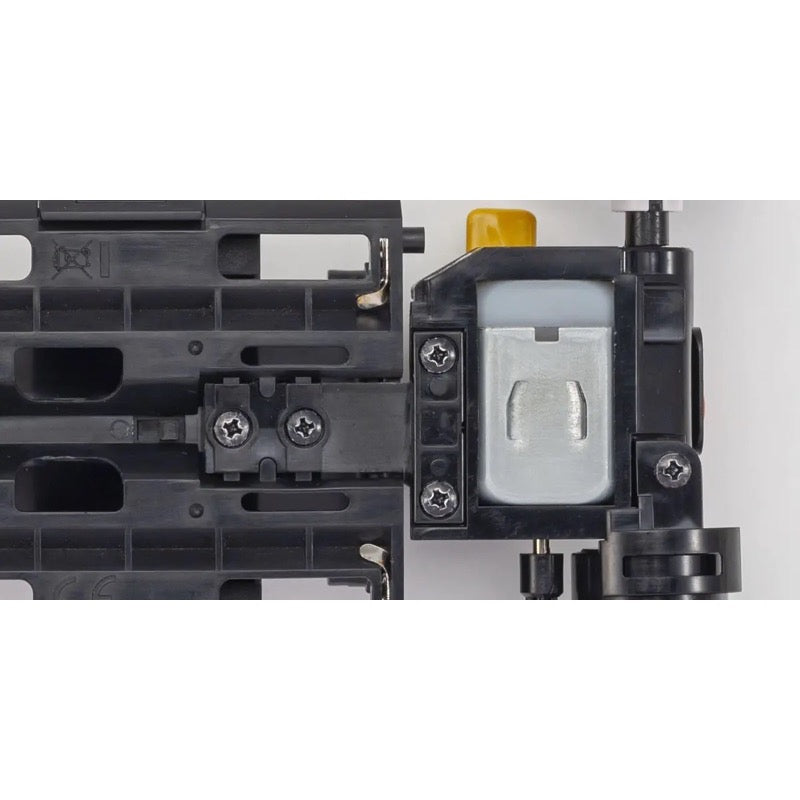

• Flexibility of the T-bar rear suspension plate that holds the entire rear pod, including the motor and rear axle, produces excellent suspension effect. Optional parts are also available in FRP and carbon.

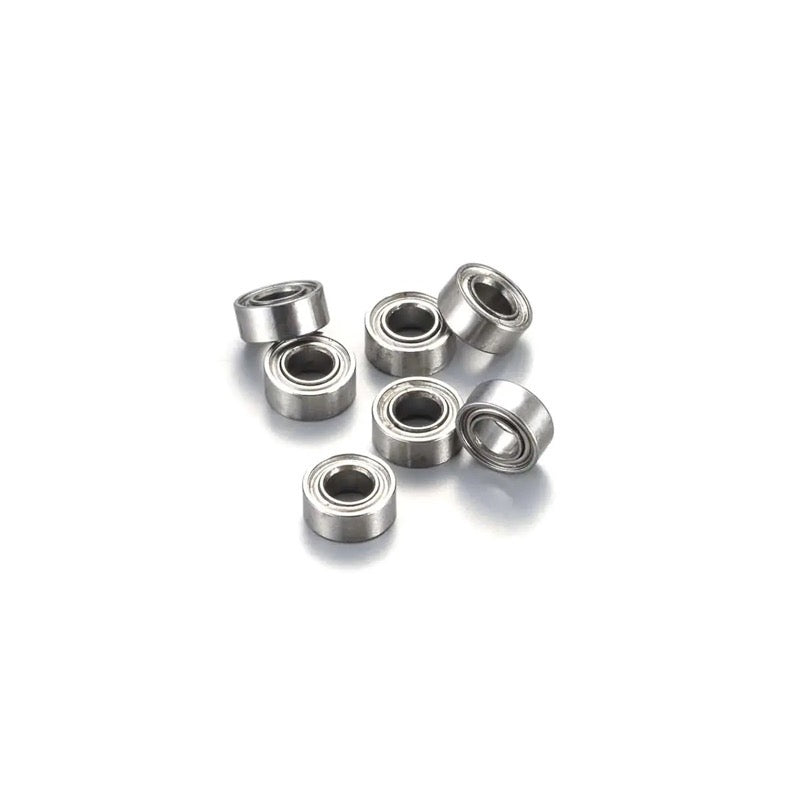

• All axles are equipped with low rotational resistance ball bearings as standard. The same size ball bearings are used for both front and rear for spare parts efficiency.
• When changing from the standard body, a parts set is included to change the front tread (vehicle width) to match the non-standard body to be installed. Rear tread can be changed by changing the wheel offset.

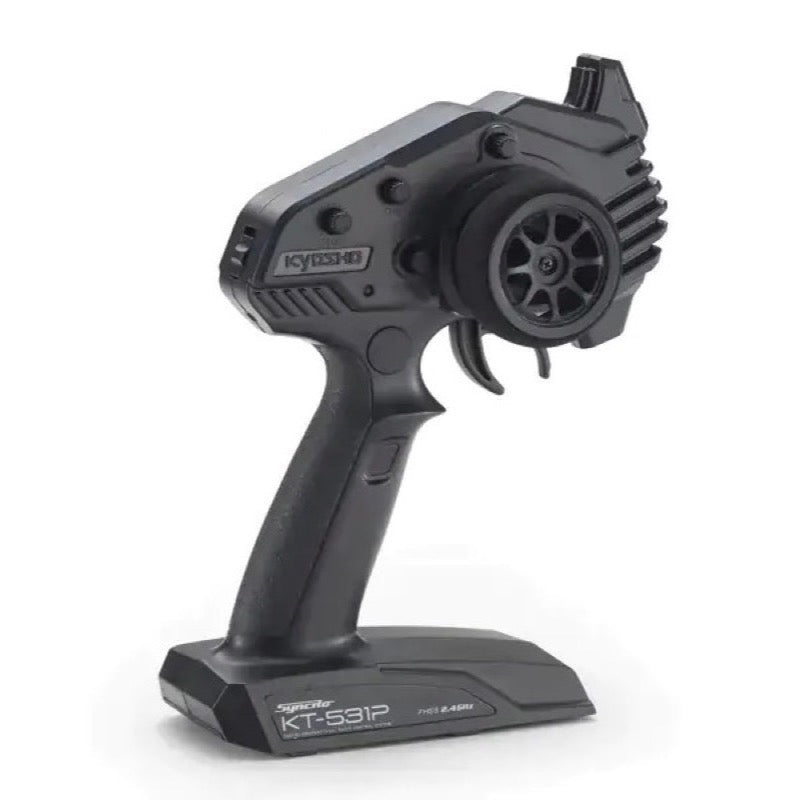

• Includes Syncro KT-531P transmitter with a steering wheel that mimics the steering wheel of a real car and pistol-grip throttle (speed control). Adjust the neutral position of steering and throttle with trims, as well as steering angle with dual rate adjustment. It is also possible to operate in training mode with a reduced vehicle speed (training mode is the default setting).


Simply insert the battery into the car body and transmitter and you can enjoy driving a full-fledged R/C car right away, which is the appeal of Kyosho Ready Sets. Among them, the small-scale MINI-Z Racer is easy to drive indoors and is ideal for those who have little experience with R/C cars. The MINI-Z RWD, a rear 2-wheel drive chassis Ready Set that could be said to be the core model of the MINI-Z Racer, will be renewed with a new chassis!

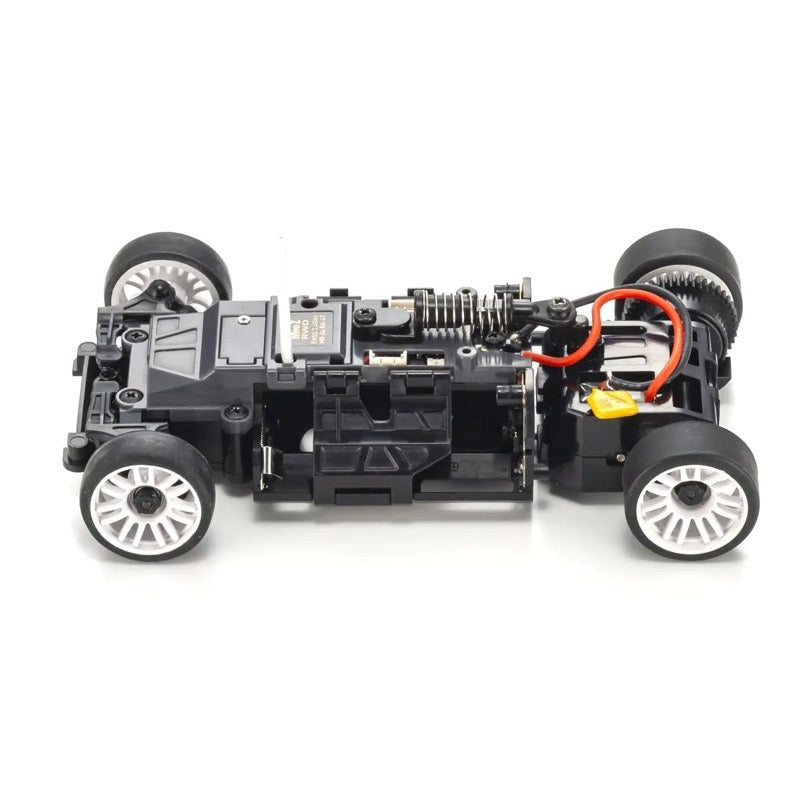

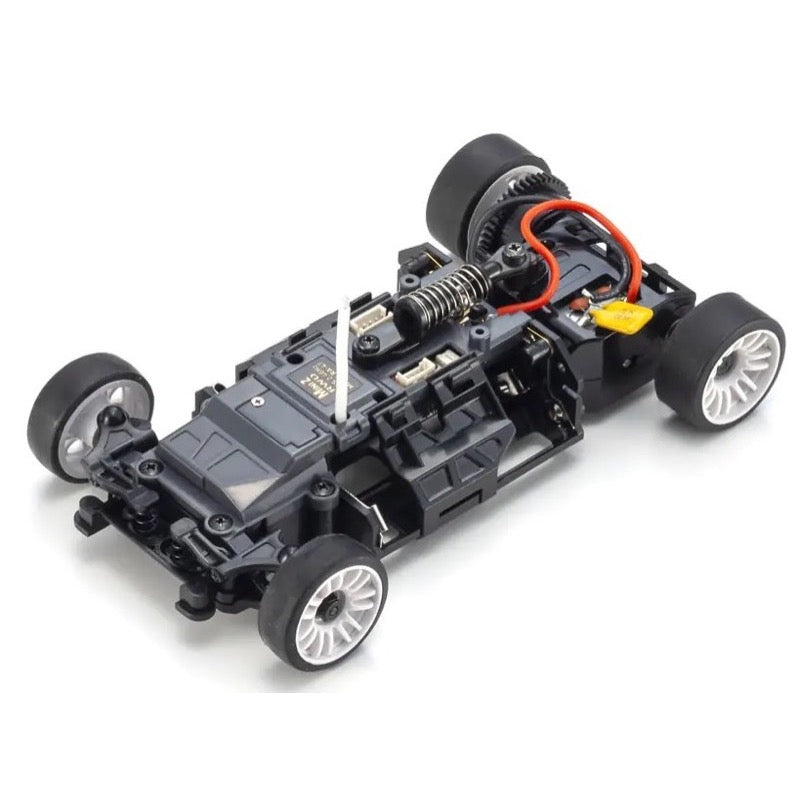

Previous Ready Sets used the third-generation MR-03 chassis of the rear 2WD MINI-Z Racer, but this renewal will be based on the fourth-generation MR-04 chassis that debuted in 2023. While inheriting the basic design of the MR-03, the MR-04 has evolved significantly by lowering the center of gravity and changing the design around the steering. It debuted in the MINI-Z's top-of-the-line model EVO2, demonstrating overwhelming speed and excellent maneuverability. The MR-04 chassis is equipped with an R/C unit for a Readyset, and is combined with a completed body of quality comparable to a display model. The materials of each part of the chassis have not been changed even when it was made into a Readyset, so the quality is the same as that of a high-end model. The motor is an easy-to-handle 130 class brush motor, and the transmitter is a Syncro KT-531P with a steering wheel and gun grip type that is popular for R/C cars, and is extremely reliable. The chassis and transmitter can be equipped with four AAA alkaline batteries each to be ready to run. Not only can you enjoy driving in the standard condition, but by using a wide range of optional parts for the MINI-Z, you can also turn it into a machine that can compete in top-class races. The MINI-Z RWD can be tuned up for operation and can also be enjoyed as a decorative item, and the renewal to the MR-04 chassis will invite owners into the world of authentic R/C cars at a higher level.

Features

• A small-scale authentic EP (electric) R/C car that can be driven indoors.

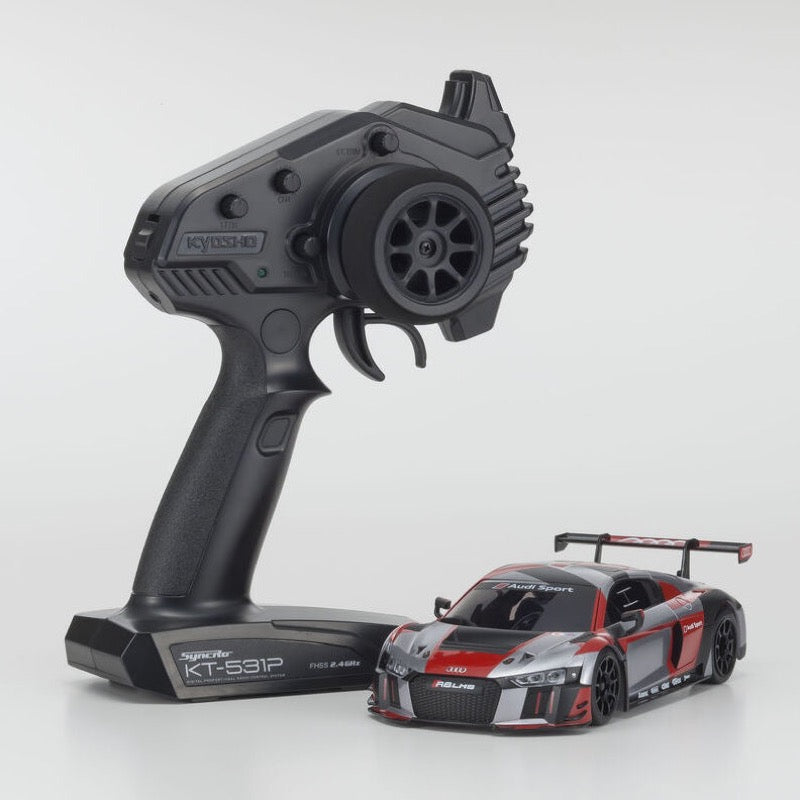

• The chassis and body are factory assembled and sold as a Readyset that also includes a transmitter.
• The included transmitter is the highly reliable and multi-functional Syncro KT-531P.
• The latest MR-04 chassis is a major evolution of the conventional MR-03.

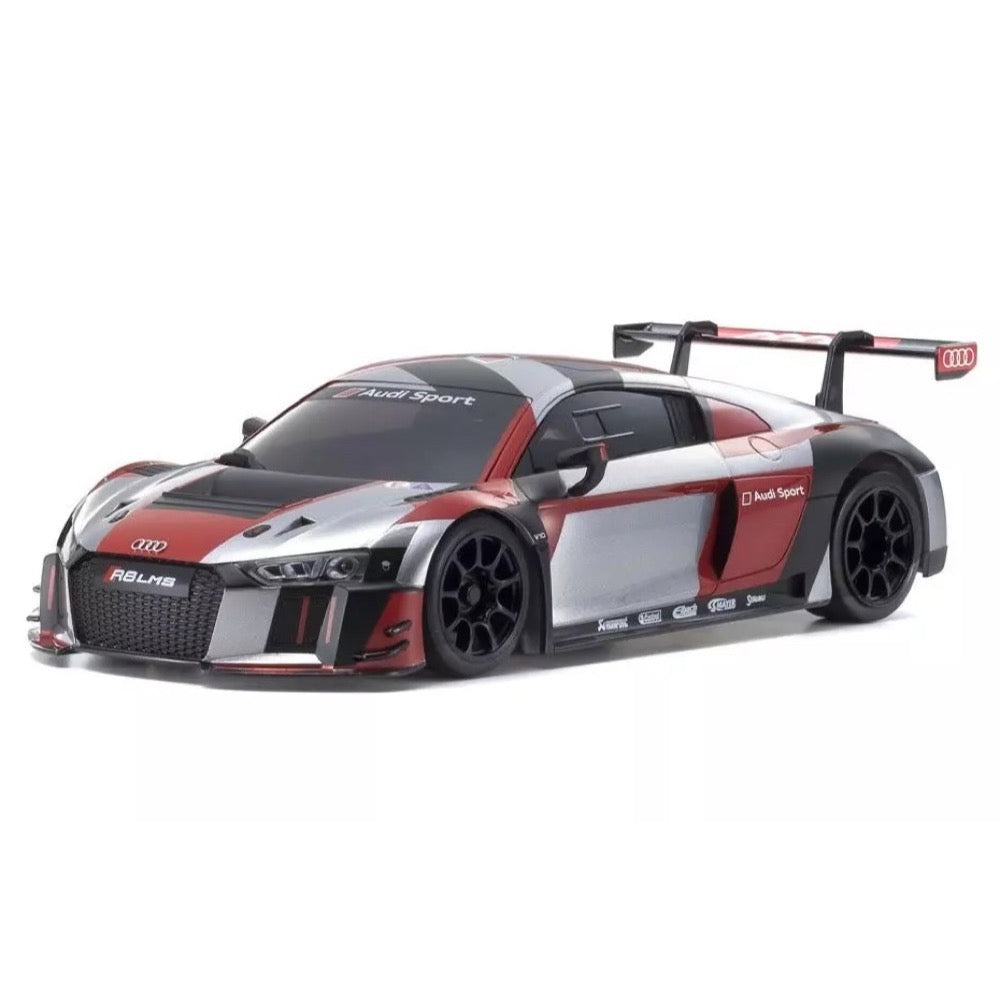

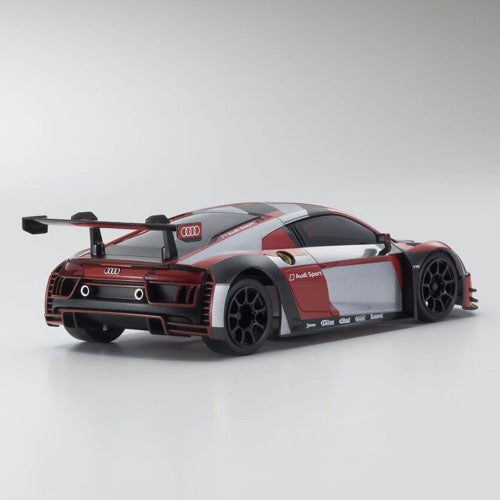

• Includes a high-quality painted body with decals applied that can be used as a display model.
• All Mini-Z Racer bodies can be installed. *A motor case and differential gear assembly that matches the installed body are required separately.
• Equipped with a gear-type differential (gear diff) that enables smooth cornering.
• Full ball bearing specifications.
• An optional gyro unit (MZW711) can be installed to make control even easier. Gyro sensitivity can also be adjusted using the volume on the chassis.
• You can also enjoy tuning up with the wide range of Mini-Z Racer options.

Requires

• 4 AAA alkaline or nickel-metal hydride batteries for operation
• 4 AAA alkaline batteries for transmitter

• Overall length 166.5mm
• Overall width 75mm
• Overall height 44.0mm
• Wheelbase 98mm (LL)
• Tread wide
• Chassis used RWD (MR-03)
• Motor mount MM
• Front wheel offset narrow +1.5mm (for RWD)
• Rear wheel offset wide +1.5mm (for RWD)
• Transmitter used Syncro KT-531P
