Tamiya 58753 1/10 DB01SR RC Chassis Kit

This chassis kit creates a 2 belt-driven 4WD buggy with identical belts and option parts for great off-road race performance. A slipper clutch provides stable drive and the gear differentials feature steel bevel gears which need less maintenance and are compatible with high-power motors. The kit features front and rear universal shafts for efficient drive and reinforced drive belts. Front and rear hex hubs allow a wide choice of wheels and tires, and square-shaped battery packs can be installed.

4WD 2 Part Belt-Drive DB01SR Chassis

The DB01's 4WD system features a centrally located spur gear driving two belts. Both the spur gear and drive belts are protected by plastic covers that prevent dirt and debris from interfering with the drivetrain. Front and rear bulkheads are integrated with the chassis, simplifying construction and maintenance. To ensure the chassis can manage the stresses of off-road racing, it is made from fiberglass-reinforced nylon material for greater strength. Furthermore, the underside of the chassis is completely flat, enabling excellent skid characteristics.

Please note that the motor, remote control equipment, battery pack, etc. are sold separately.

Hop-Up Option Parts Included

• Item 54015 DB01 Assembly Universal Shaft (Front)
• Item 54016 DB01 Assembly Universal Shaft (Rear)
• Item 54668 4WD Buggy Aluminum Hex Hubs (Front)
• Item 54669 Buggy Aluminum Hex Hubs (Rear)
• Item 51580 4WD Buggy Front Dish Wheels (Hex Hub)
• Item 51581 Buggy Rear Dish Wheels (Hex Hub)
• Item 54211 TRF201 Rear Wing Set
• Item 54140 DB01 Reinforced Drive Belt x2 sets.

Features

• 1/10 scale R/C model assembly kit.
• A slipper clutch (from Item 54018 DB01 Slipper Clutch Set) provides stable off-road drive.
• Features oil-filled gear differentials.
• The gear differentials (from Item 54329 DB01 Gear Differential Unit) feature steel bevel gears (from Item 54428 Steel Bevel Gears for TA06 Gear Differential Unit) which need less maintenance and are compatible with high-power motors.
• Front and rear universal shafts ensure efficient drive and minimal maintenance.
• Front and rear hex-hubs allow a wide choice of wheels and tires.
• Battery section of the chassis can accept square-shaped battery packs.
• Dedicated livery stickers, masking stickers for the window and Baldre body included. NOTE: Original Baldre body stickers are not included.
• Box packaging can be used as a carrying case.
• Required to complete: 2-channel radio, steering servo, ESC, motor, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint.

Featured Components

• Lower deck compatible with square-shaped battery packs
• Front/rear gear differential units with steel bevel gears
• Front/rear assembly universal shafts
• Front/rear aluminum hex hubs
• Front/rear dish wheels
• TRF201 rear wing set
• Reinforced drive belts
• Dual block tires K

Requires

• Brushless motor
• 2-channel R/C System with ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack and charger

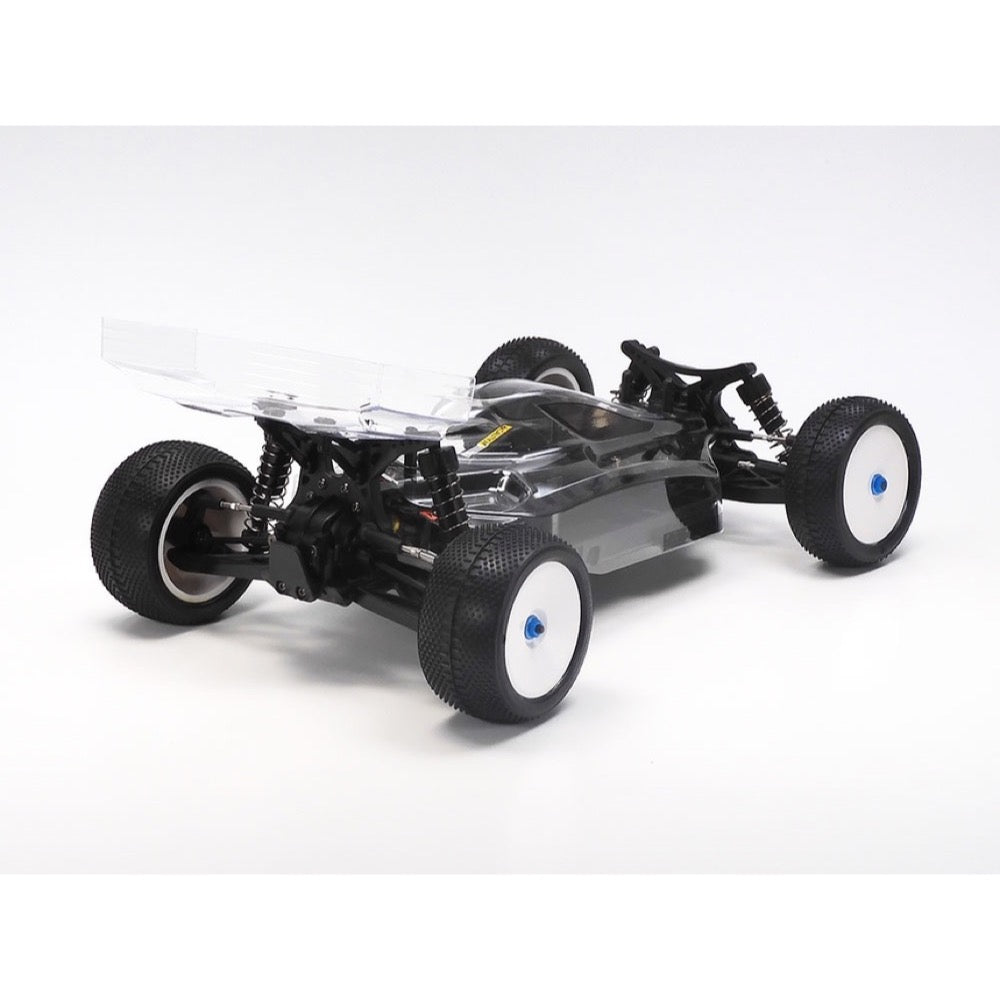

The kit comes with a polycarbonate body previously seen in the Baldre model.

A close-up on the 3-piece steering linkage with turnbuckle rods, and ball bearings for smooth motion.

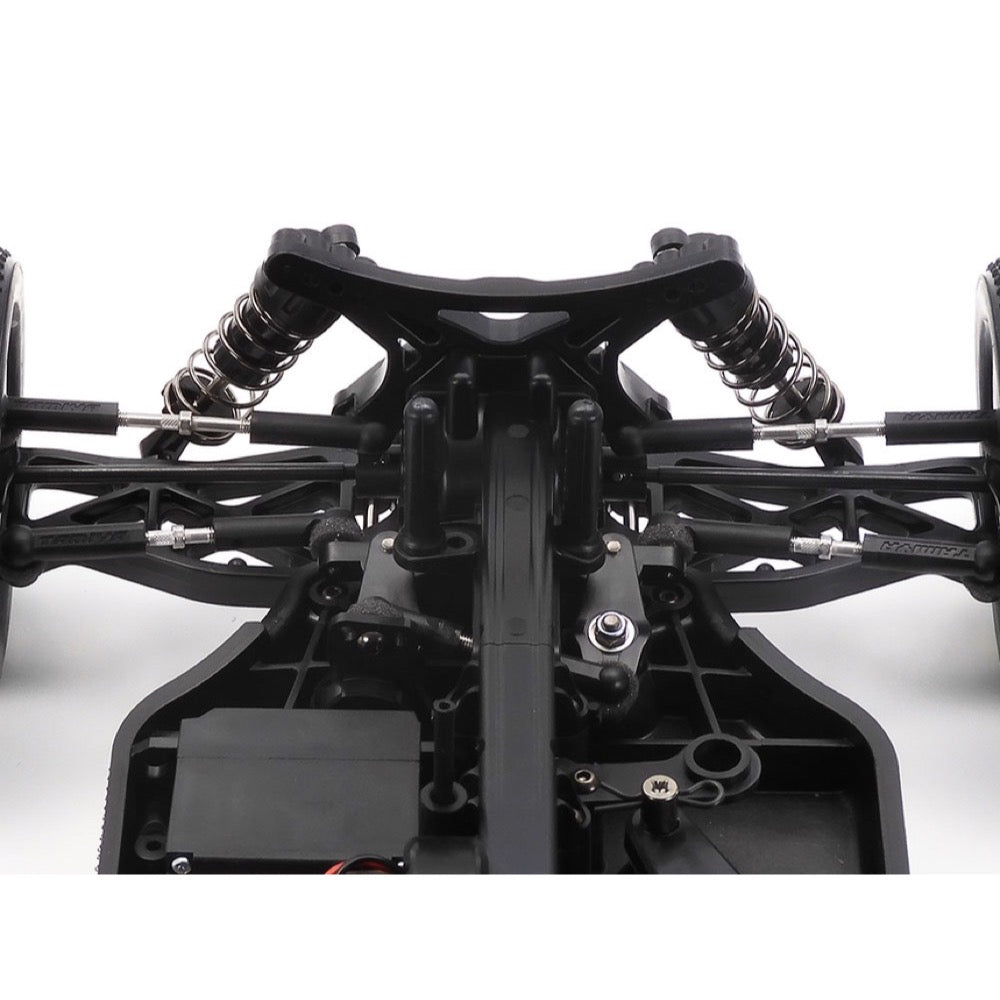

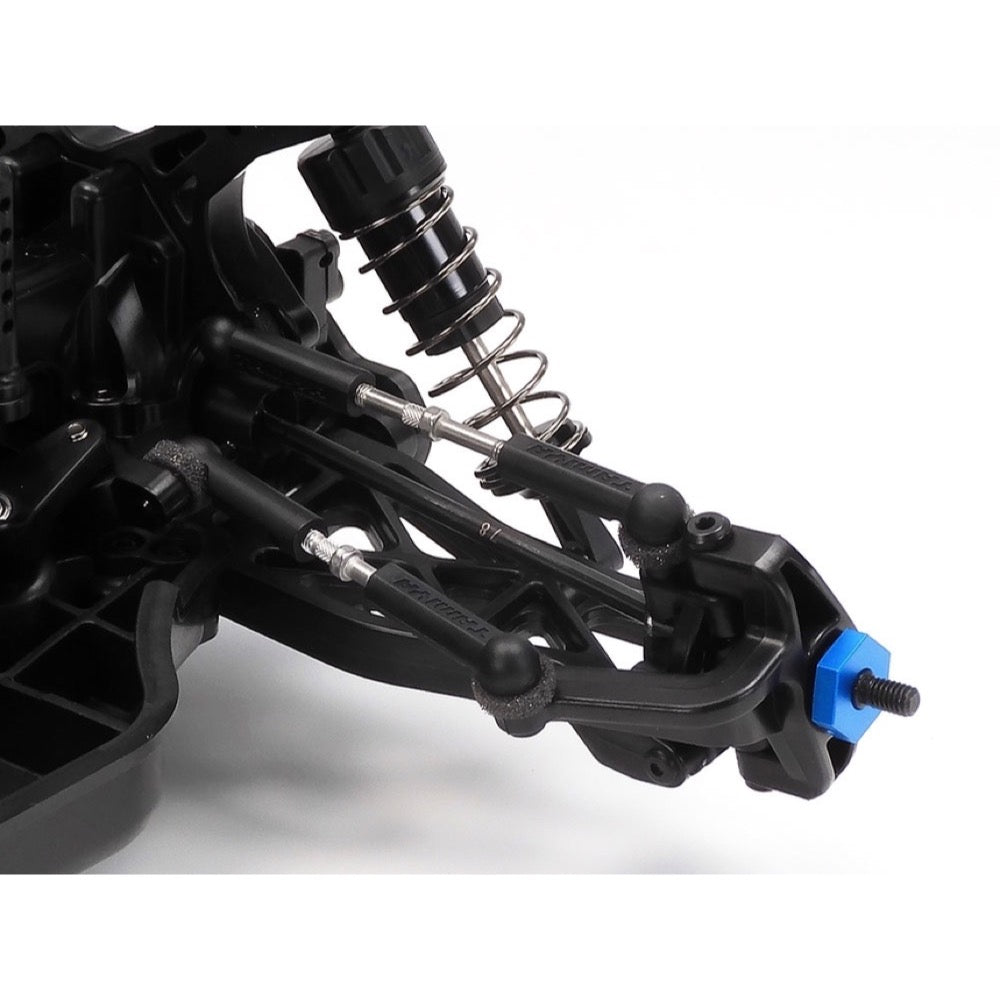

The double wishbone front suspension uses turnbuckle upper arms. Universal drive shafts are highly efficient.

Fine tune your suspension by using a choice of 4 upper and 3 lower positions for the CVA short dampers.

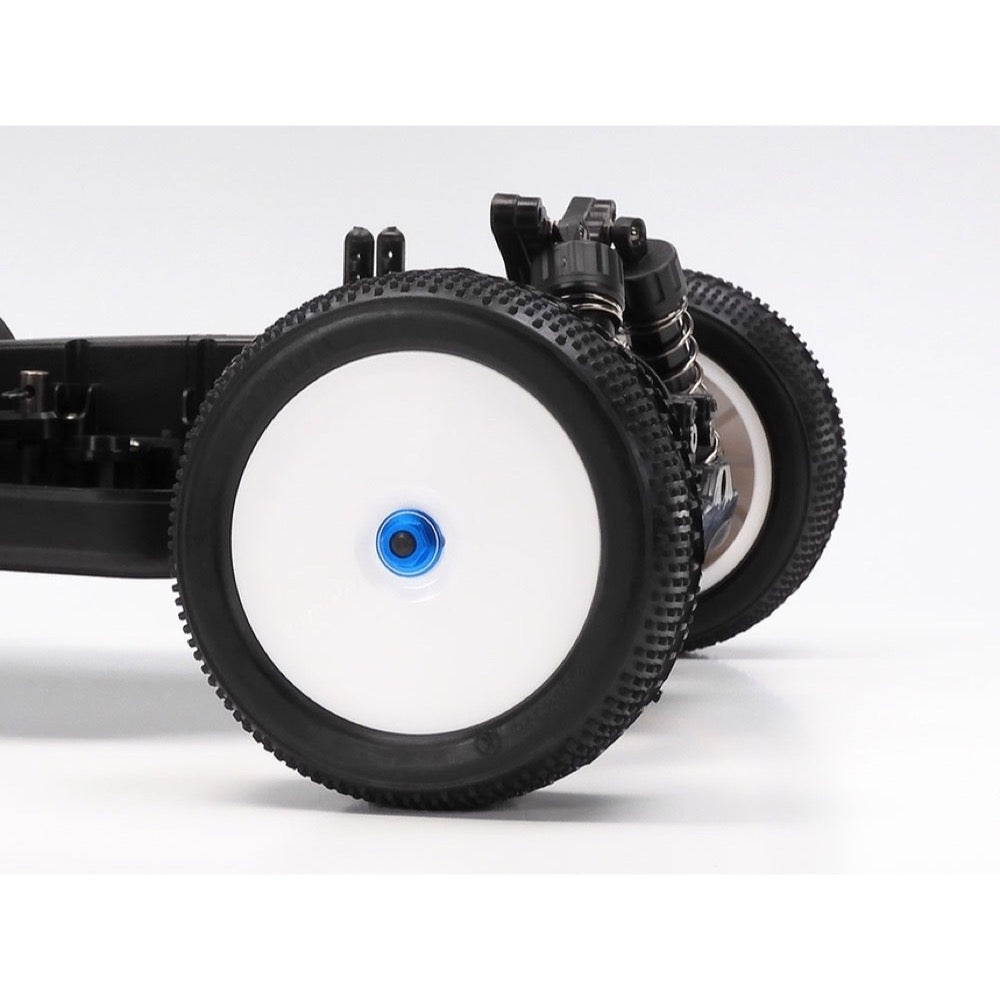

Flat dish wheels pick up less mud and dirt, and are paired with dual block K tires for great off-road grip.

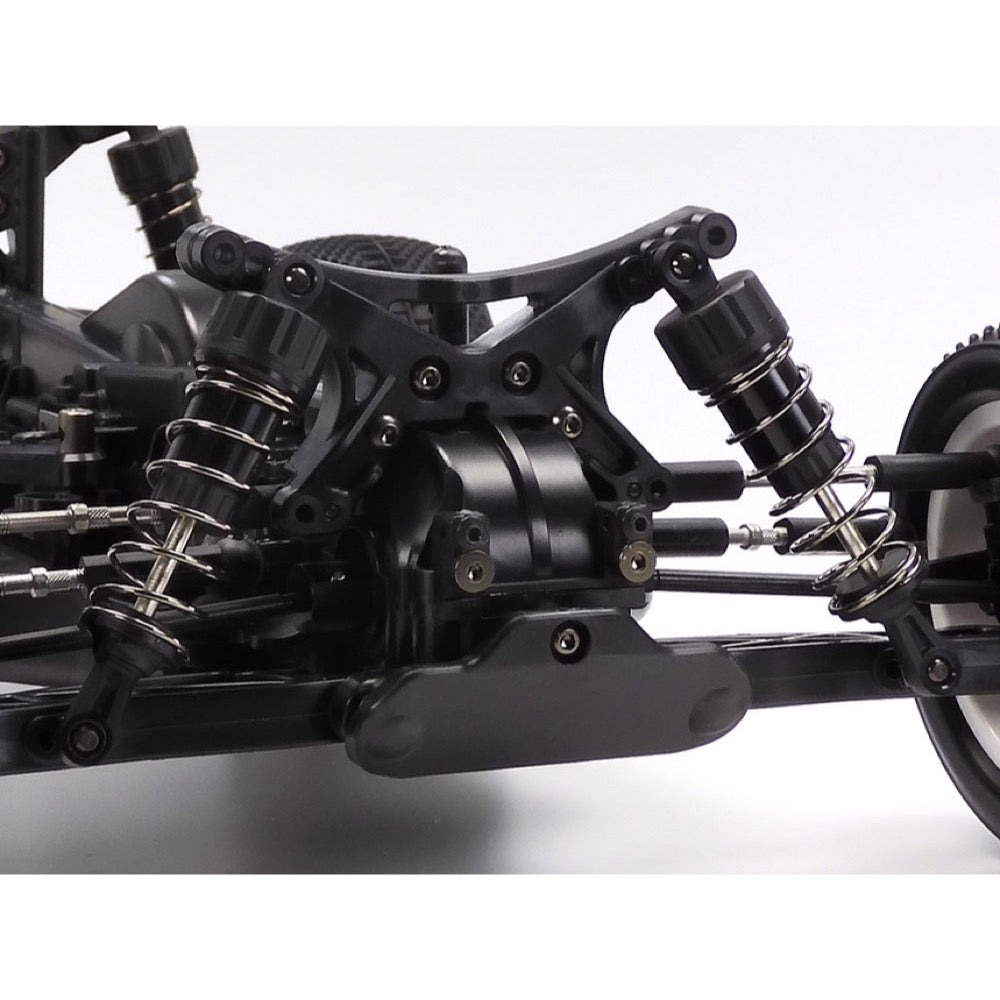

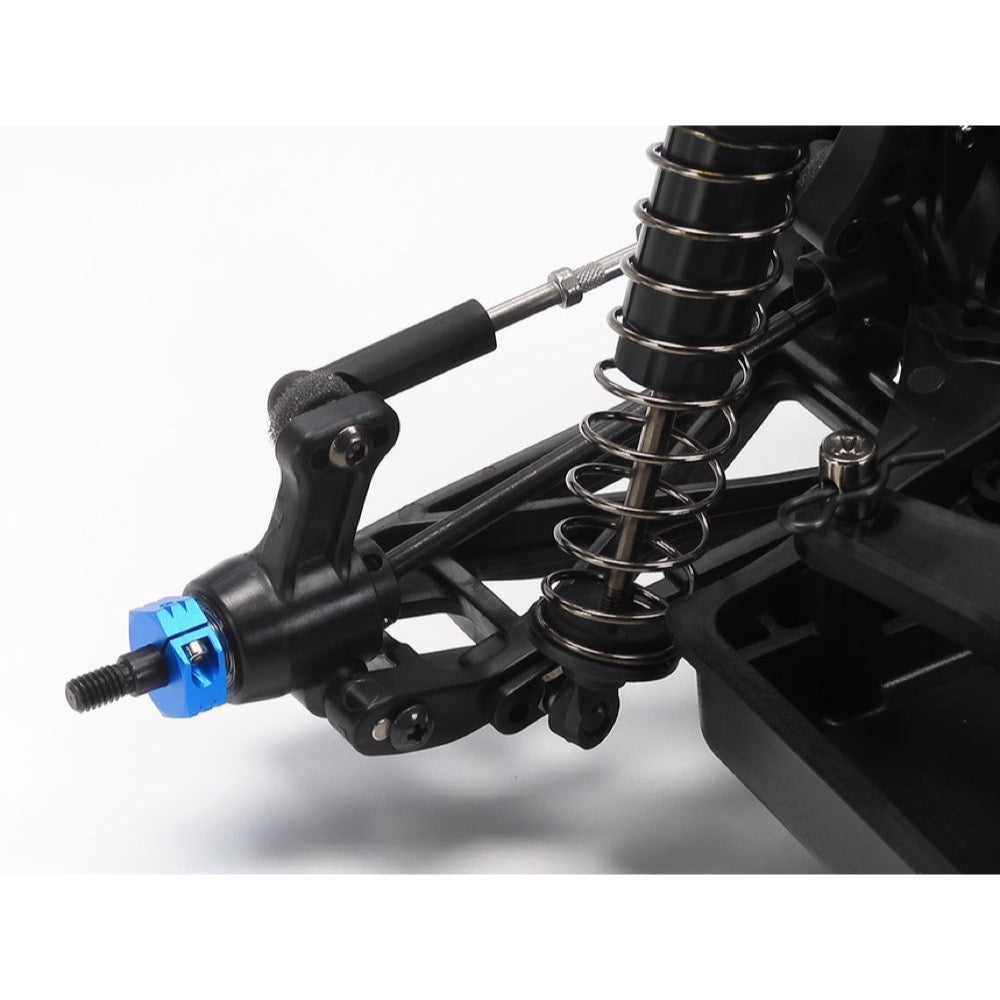

The rear suspension has wide-span “H” arms and upper “I” arms. Choose from 4 upper and 3 lower damper attachment points.

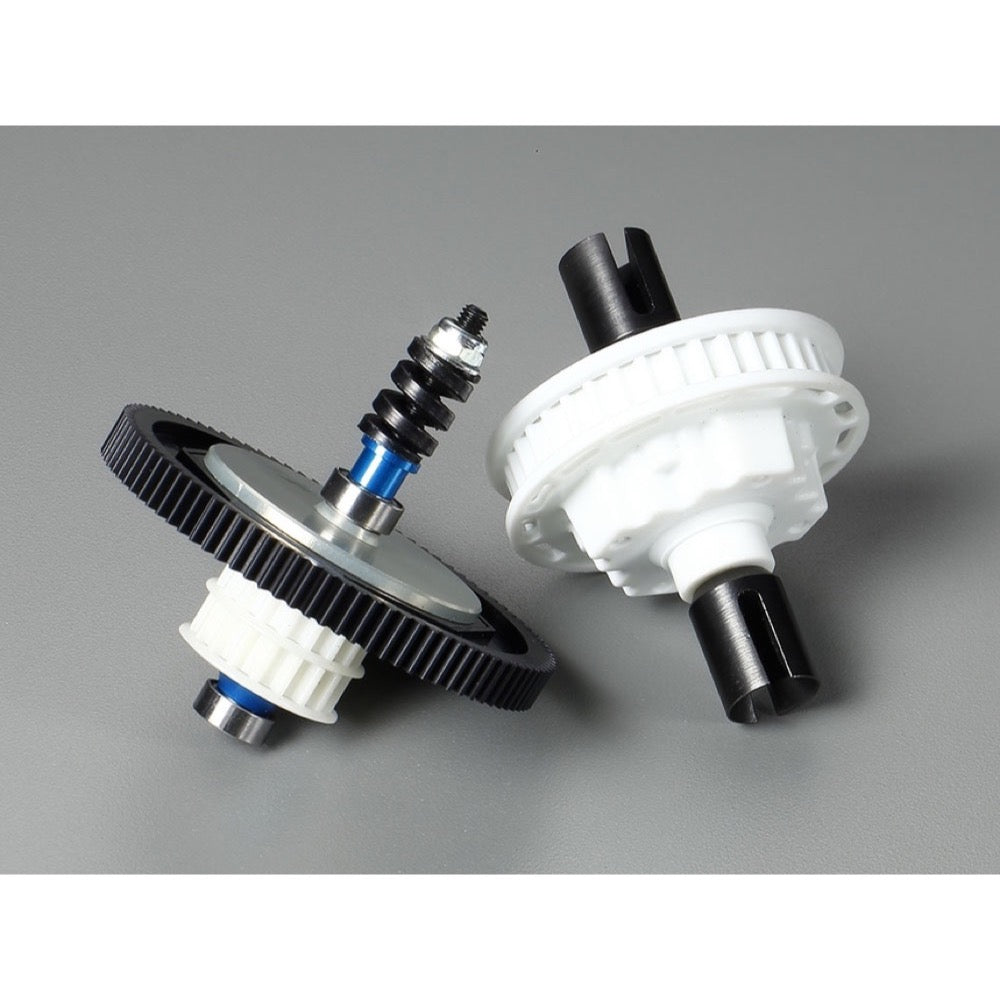

The DB01 SR has oil-filled gear differentials front and rear, joined by a central slipper clutch.

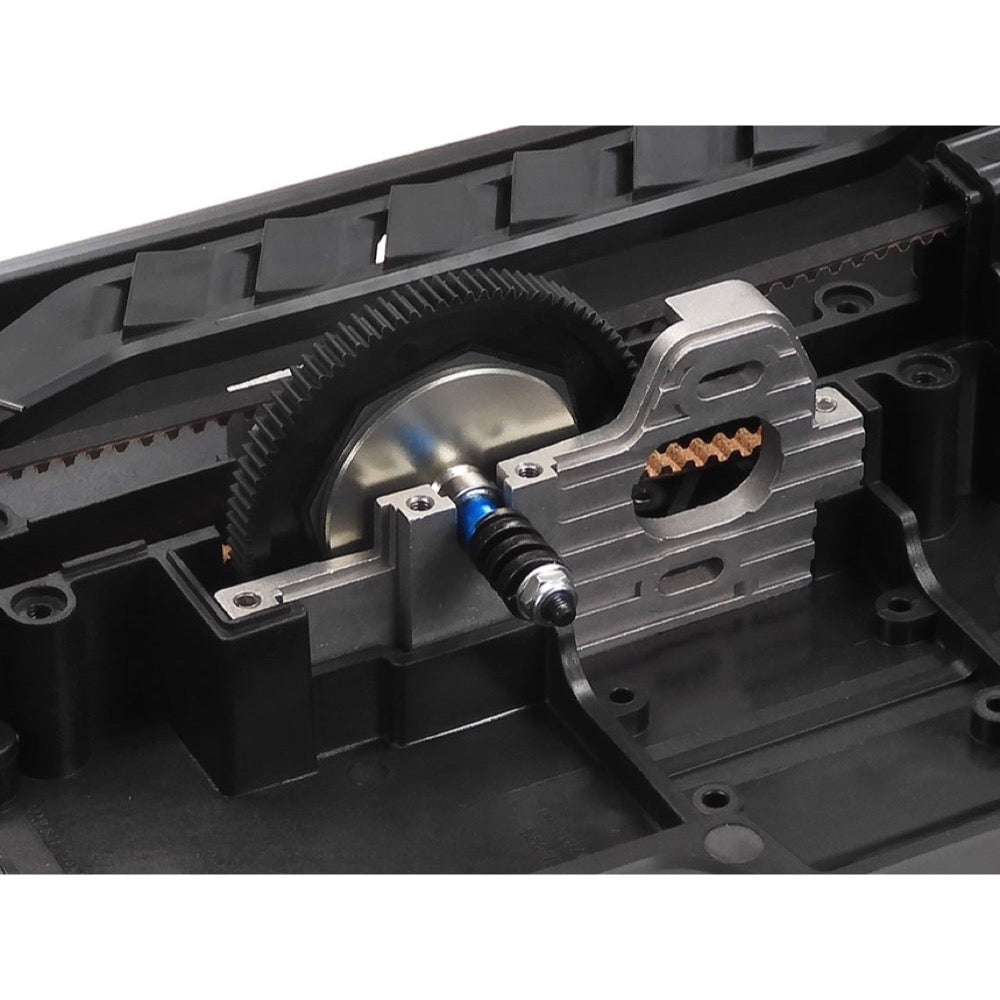

The aluminum motor mount has a heat sink design, and belts are reinforced.

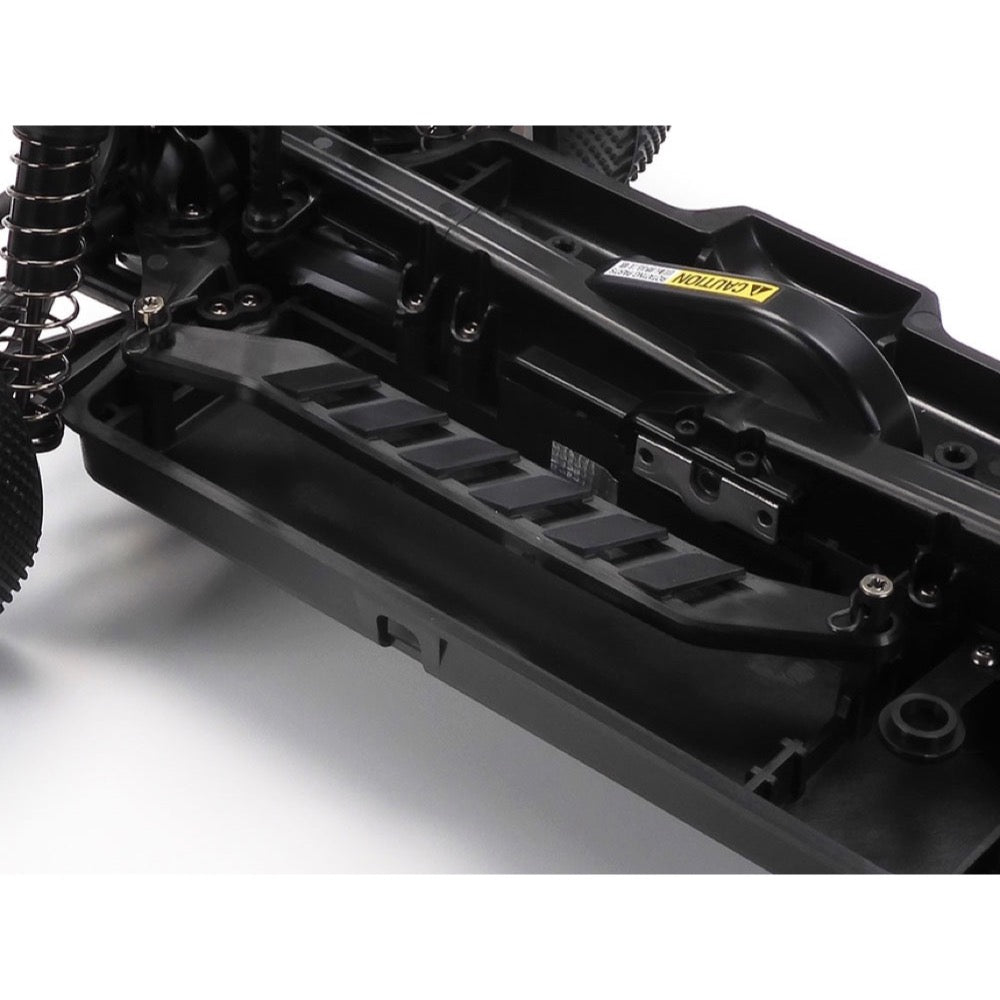

The glass fiber-reinforced nylon plastic frame is compatible with square-shaped battery packs.

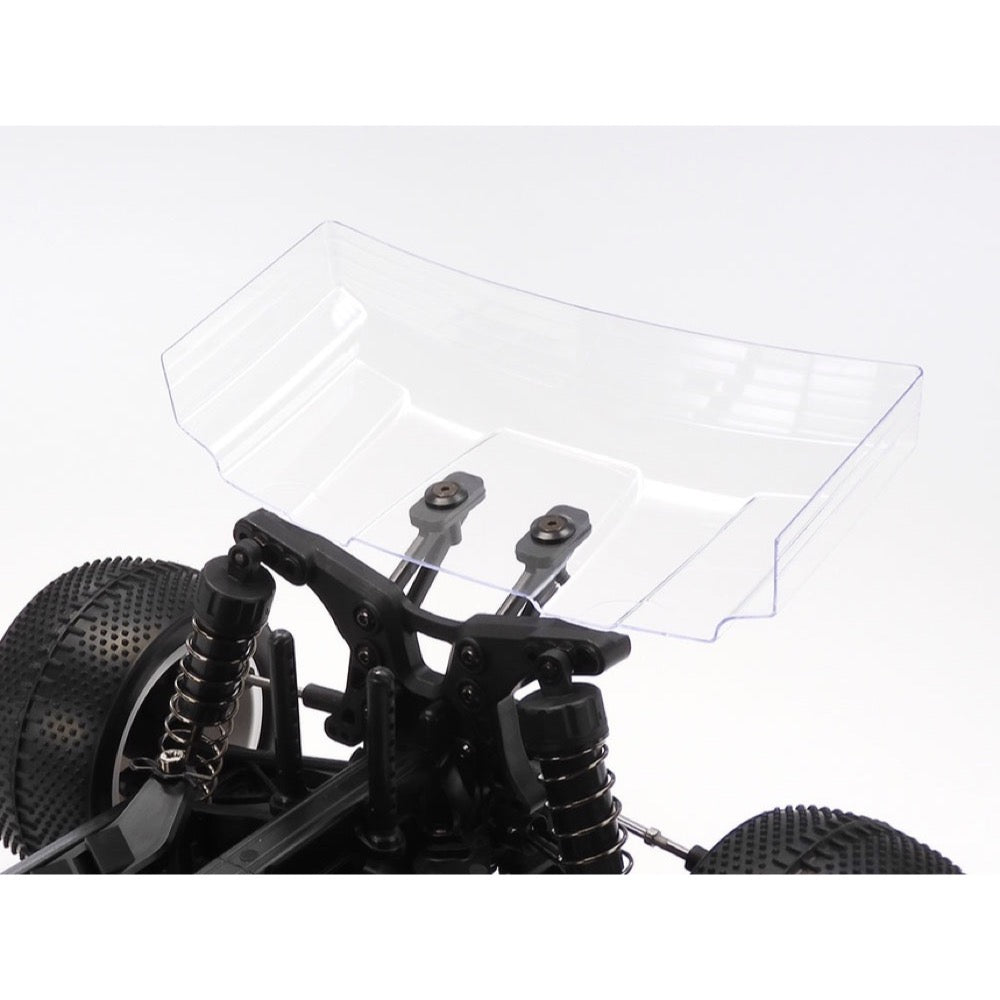

One of two wing angles can be used. Switch between them by changing the wing mount direction.

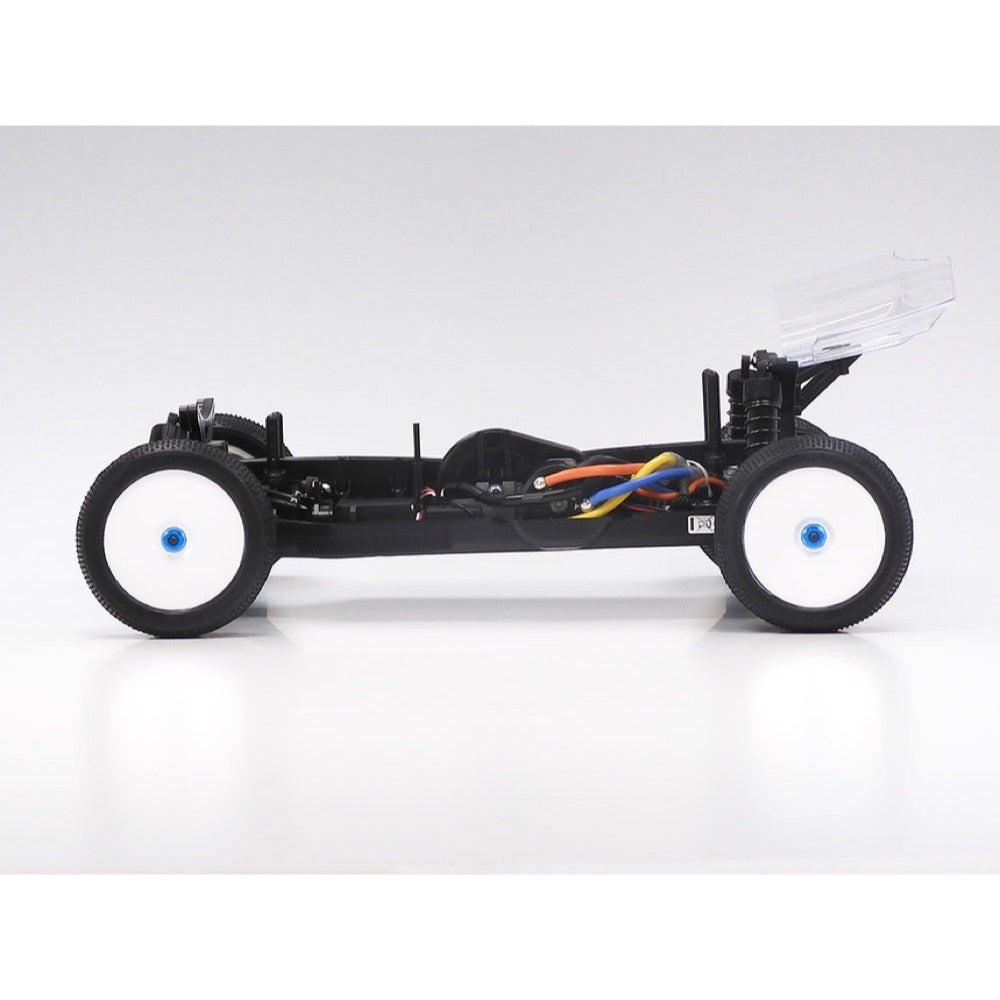

Viewed from the side you can see the ample ground clearance despite the DB01 SR’s low center of gravity.

• Length: 357mm (no body)
• Width: 251mm
• Wheelbase: 280mm
• Glass fiber-reinforced nylon chassis
• 2 belt-driven 4WD
• Front/rear oil-filled gear differentials
• CVA oil dampers
• Gear ratio = 11:1 with kit 17T pinion (11.69:1 to 8.13:1 with other pinions)
• Requires Type 540 motor (sold separately)
• Adjustable Gear Ratio Yes
• Bearings Full Ball Bearings Included
• Body Material Polycarbonate
• Chassis Material Fiberglass Reinforced Plastic (FRP)
• Chassis Type DB-01SR
• Construction Type Assembly Kit
• Differential Type Oil-Filled Gear Differential
• Drive Type 4WD
• Electronic Speed Control (esc) Sold Separately
• Motor Sold Separately
• Required To Complete 2-channel radio, steering servo, ESC, motor, 7.2-7.4volt battery & battery charger, and Tamiya PS paint.
• Scale 1/10
• Shock Damper CVA Oil-Filled
• Special Feature 1 Includes a wealth of Tamiya Hop-Up Option Parts
• Suspension Fully independent double wishbone
• Terrain Use Off Road

Download Product Manual
