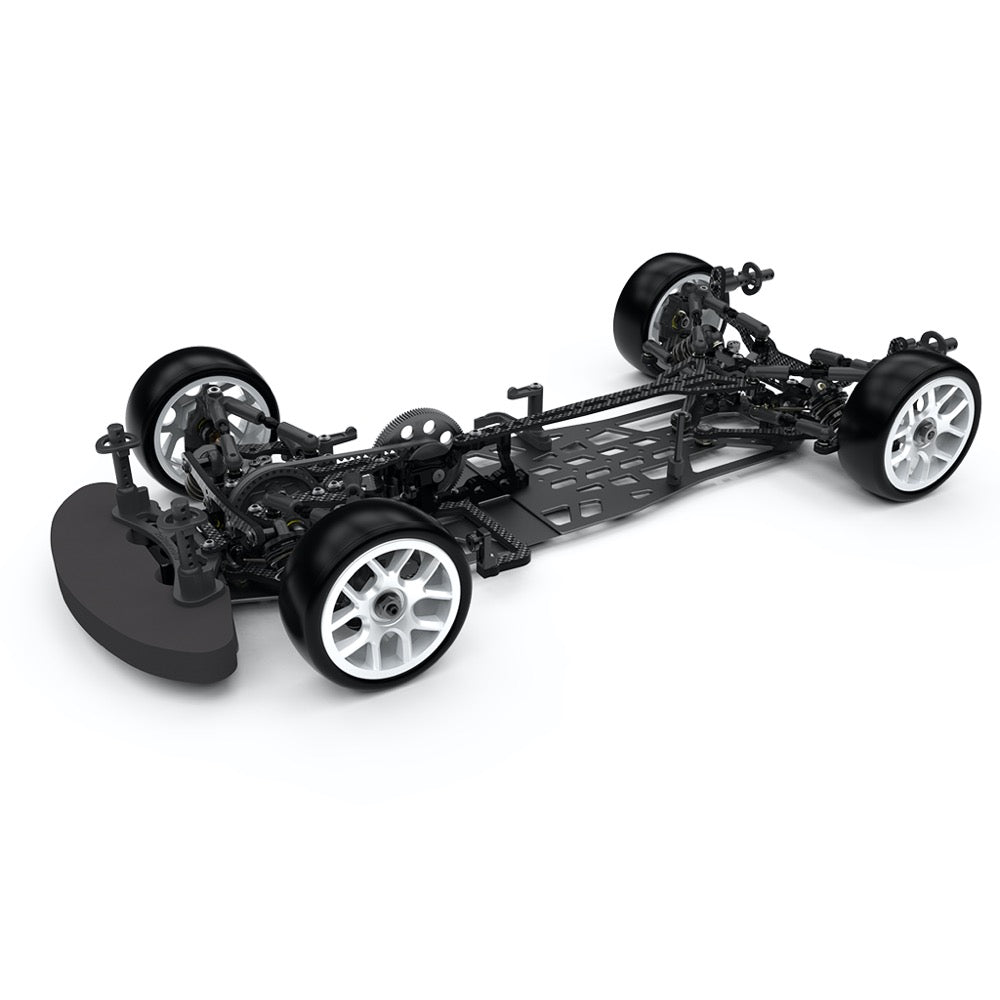

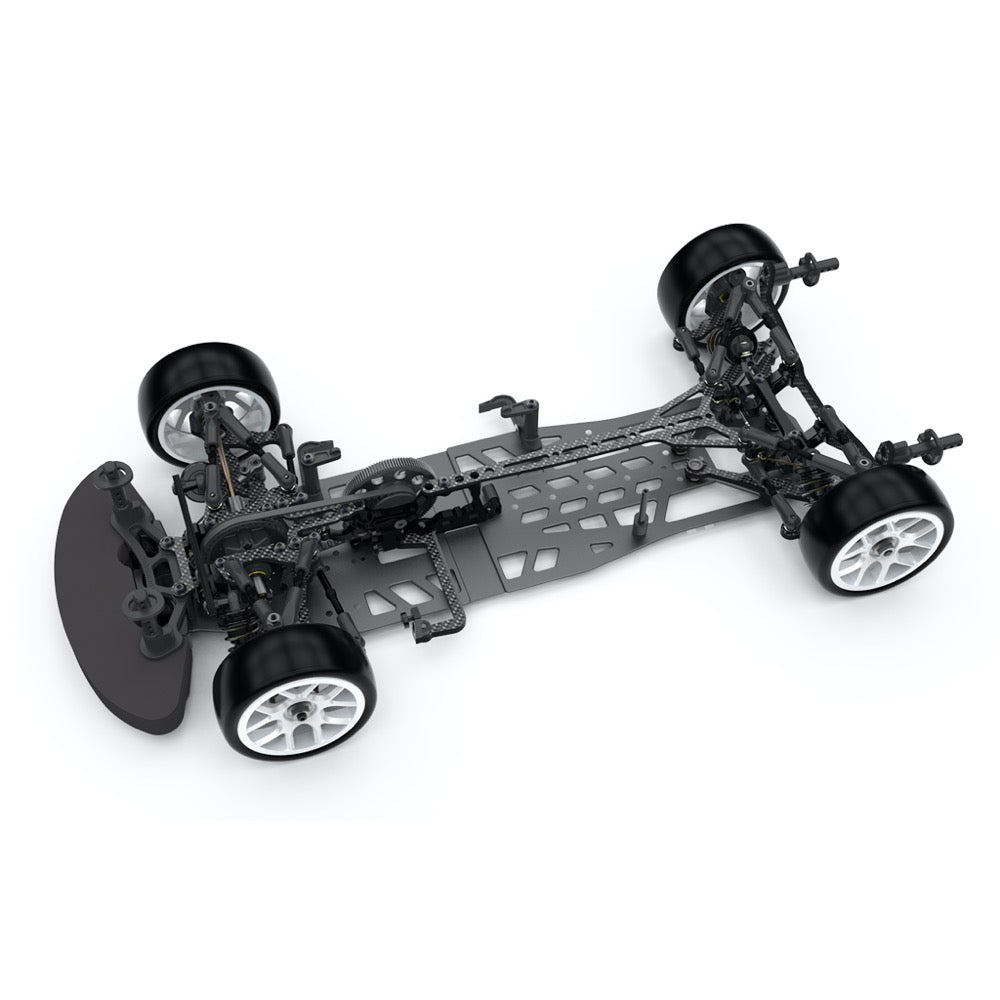

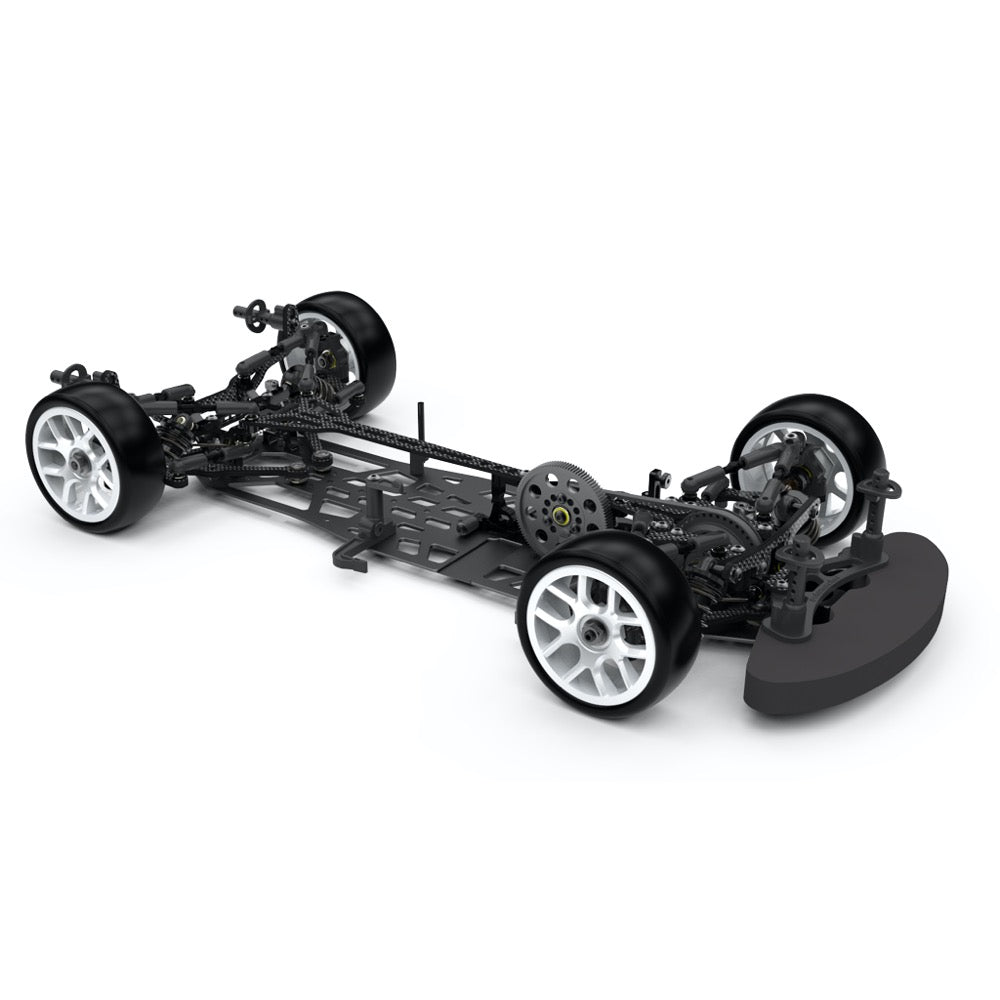

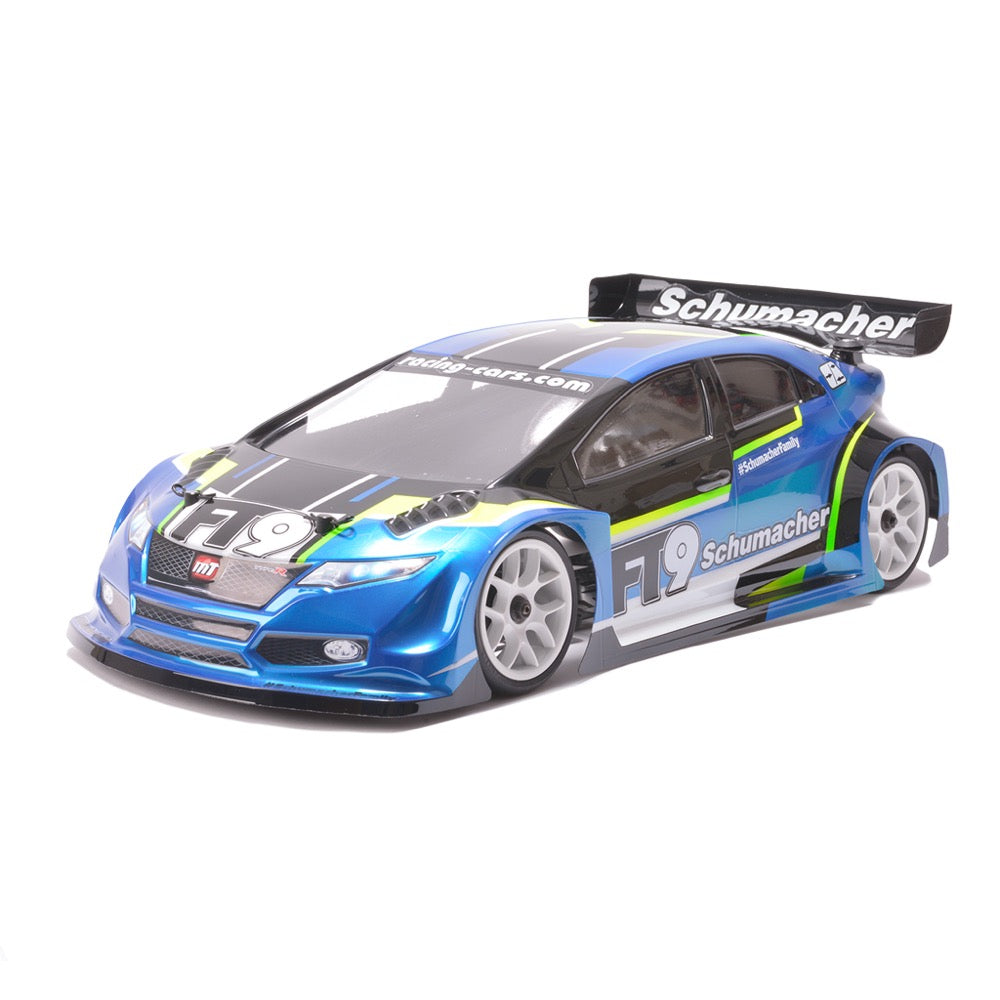

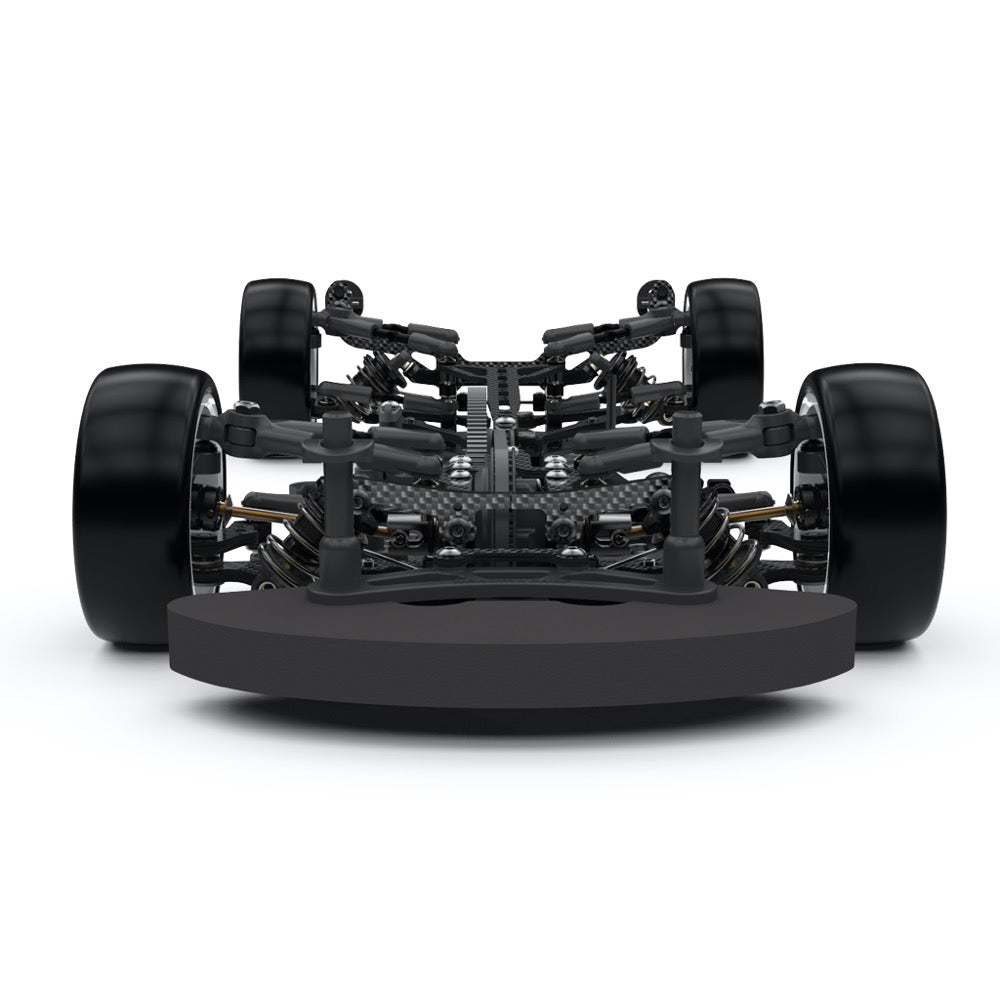

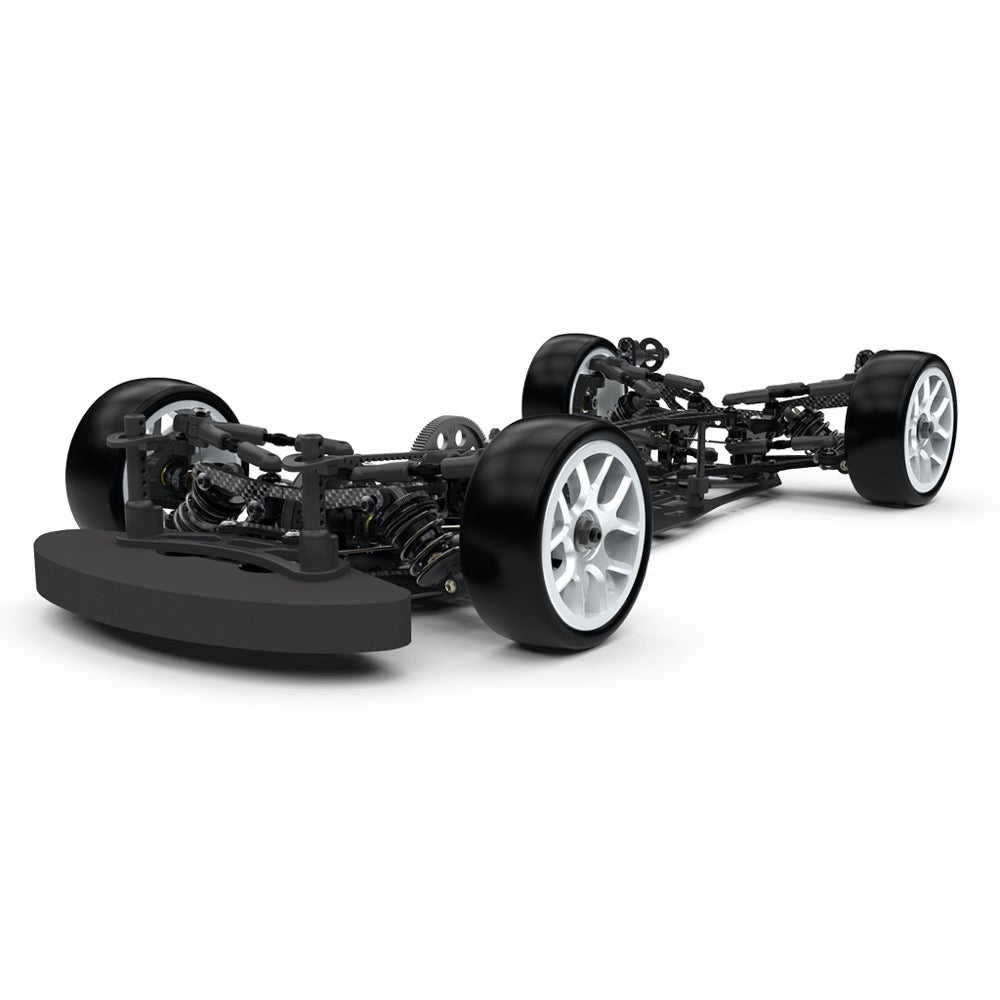

Schumacher FT9 Carbon Fibre 2WD Kit K219

Product Code: SCH-K219
Barcode: 5051294196271
$919.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

The FT9 is designed to be a winner in the close and exciting ‘Frontie’ FWD racing class.

The FT9 incorporates many features from the hugely successful Mi9 touring car, to make a superbly engineered racer.

It is fast, light weight, and agile with a super low centre of gravity.

The FT9 contains all the features and adjustments you need from a high end front wheel drive to take you to the top of the podium.

The FT9, drive from the front.

New Features

  • Two Kit versions, K220 Alloy Chassis 7075-T6 or K219 Special Stiff Weave Carbon Fibre Chassis. Each offering extreme weight reductions in the rear of the car, as well as advanced flexibility characteristics.
  • Front bumper design with foam bumper and black brass weight. Optional 60g (6x10g weights U8774) additional weight locations.
  • Rear suspension layout with all new shock mounting design. New geometry and forward bias weight distribution.
  • All new suspension geometry. Refined over countless hours by our team drivers and in house development engineers to provide maximum performance across all track conditions.
  • Fully updated front transmission housing. Same on the left and right side.
  • Rear Transmission housing for maximum rearward weight saving and optimum rigidity.
  • Lightweight gear differential design with ultra-smooth action, improved performance and improved ease of build, especially with requirement for maximum oil capacity seen in FWD. Optional oil bleeding design included for an even easier build technique.
  • Driveshaft design. All new low profile joint, joint positioning, ball bearing outputs and weight reduction provide performance improvements.
  • Nano shock absorbers with total length reduction of 7.6mm. Uncompromised stroke for improved performance and lower centre of gravity.
  • Front Hub carrier design. Plastic are included as standard with optional alloy hubs both providing improved wheel control and performance.
  • Front Wheel hex’s with improved wheel control and easier attachment.
  • Rear Alloy Wheel hex’s, lightweight, simple design with inner alloy nut fixing method offering easier wheel fitment.
  • Steering arms with new mounting and adjustable ackermann included and optional crash stop locations.
  • Lower wishbone design with enhanced flexibility, droop control and other improvements. The wishbones are now identical on the left and right hand side.
  • Outer wishbone ball and socket for improved durability and geometry.
  • Independent rear body mounting. Providing better handling performance and durability with shocks mounted separately.
  • Carbon Fibre Servo mount with low centre of gravity design, along with improved mounting location.
  • Compatible with Aerox AX067 LP1S servo, with direct mounting. (Wire extension required, such as KO36521).
  • Front split shock mount design with twist free design and a more consistent, smooth handling characteristic.
  • Lightweight centre layshaft and spur holder design.
  • Lightweight Motor Mount, which includes all new motor positioning with improved pinion accessibility and built in 30mm fan mount.
  • Steering radius arm assembly with new steering geometry for maximum steering with smooth characteristics.
  • Split Top Deck design and integration with the motor mount.
  • Aluminium upper link pivots for lightweight and lower centre of gravity included.
  • Black threaded inserts. Eliminates the need for nuts.
  • Bearing Eccentrics for the diff/spool with smaller diameter and new location type.
  • Precision layshaft with shortened design and revised spur gear position.
  • Motor Positioning with more central motor positioning .

Features

  • Improved belt efficiency which can be run much looser without slipping.
  • Anti roll bar design lowers centre of gravity.
  • Black alloy turnbuckles used throughout.
  • 20 precision ball raced bearings.
  • Arrowmax supplied 110T 64dp industry standard fitting spur gear.
  • Symmetrical chassis cutout offers consistent chassis flex.
  • LiPo adjustment for fine tuning weight distribution.
  • Rear track rod for infinite adjustment to rear toe-in. This can be tuned for the use of Active Rear Suspension.
  • Aerospace carbon fibre components throughout.
  • Ultra low centre of gravity.
  • Double wishbone suspension for increased suspension rigidity, and reduced play.
  • Durable and more efficient drive train with larger pulleys 22:40.
  • Fully adjustable, suspension geometry, wheelbase, castor, camber, roll centre, ackermann, droop, anti-dive, anti-squat, front and rear toe in/out, ride height and much more.
  • Option Parts available to fine tune to all track conditions.
  • LiPo retention mouldings. No tape required.

Requires

  • 2 Channel Radio
  • Motor
  • Servo (Low Profile)
  • Electric Speed Control
  • Wheels & Tyres
  • 2S Lipo Battery, stick or shorty
  • Bodyshell
  • Motor Pinion - 64dp


  • Power Source : ELECTRIC
  • Model Type : 2WD, ON-ROAD, COMPETITION
  • Length : 300mm
  • Width : 185mm
  • Top Speed : 40 MPH +
