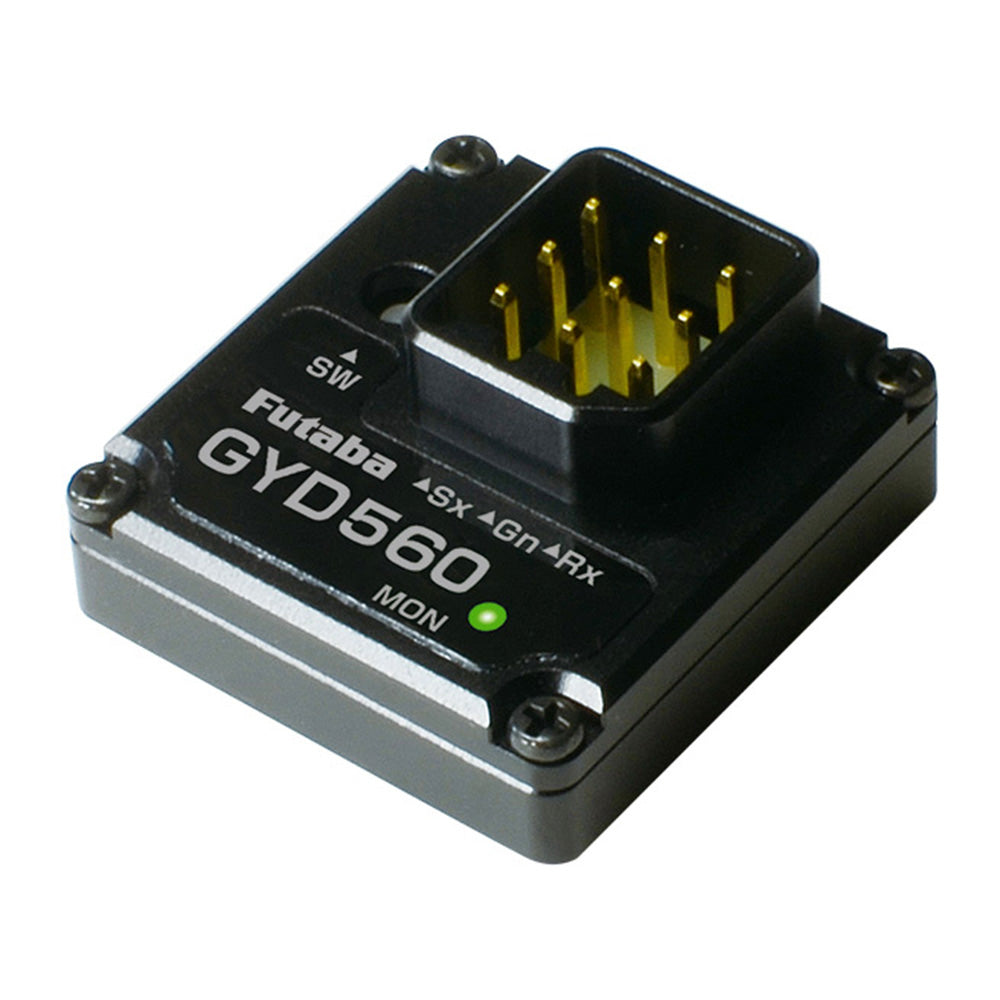

Futaba Drift Gyro GYD560 For Car

Product Code: FUTGYD560
Barcode: GYD560
$189.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This is Futaba GYD560 Ultra Respnse Steer Gyro System For 1/10 RC Drift. The GYD 560 is the latest offering from Futaba, fully equipped with UR mode support. GYD560 is a advanced gyro system designed to be used with 1/10th scale slick, carpet, and all drift surfaces. Having the latest UR Mode support which surpasses the SR mode for superior response. User adjustable parameters accessible WIRELESSLY with most Futaba transmitters, this allows you to change settings while on the drivers stand! Drifting has never been smoother, in control, and easy for beginners.

Features

  • Angular speed detection method: vibration gyro sensor
  • Operating Voltage: DC 3.5 V to 8.4 V
  • Current consumption: 30mA (when servo is not connected)
  • Operating temperature: -10°C to +45°C
  • External dimensions: 20.7×21.7×10.6mm (excluding protrusions)
  • Weight: 5.4 g
  • Power: Monitor LED, S.BUS/S.BUS2 compatible

Adjustment Features

  • Normal / AVCS Mode
  • High-Speed Response Mode
  • High-Gain Mode
  • Tail Slide Speed Adjustment
  • Gyro Curve Adjustment
  • Left/Right Endpoint Adjustment
  • Damper Adjustment
  • Stick Priority Mode Adjustment
  • Wireless Adjustment Function

Wireless adjustment is only available with the F-4G system on T10PX, T6PV, R404SBS, and R404SBS-E.

Software updates for T10PX, T6PV, R404SBS, and R404SBS-E are required to enable wireless adjustment for GYC480 and GYD560.

Key Functions

  • UR Mode Compatibility: Supports UR mode servos with the high-speed response system F-4G.
  • Remote Gain Function: Adjust gyro sensitivity directly from the transmitter (requires a transmitter/receiver capable of 3CH or higher with 3CH steering adjustment).
  • RC Drift Car-Specific Settings: Minimizes the impact of road surfaces and enhances drift performance with UR mode responsiveness.
  • Ultra-Compact and Lightweight: Achieved through high-density mounting technology.
  • Aluminum Case: Durable, high-rigidity, and lightweight aluminum case ensures accurate transmission of chassis movements to the internal sensor.
  • S.BUS System Compatibility: Can be used with S.BUS receivers for S.BUS connection (also compatible with non-S.BUS systems).
  • Digital Servo Exclusive: Designed for Futaba HPS/BLS servos and digital servos only (not compatible with analog servos).
