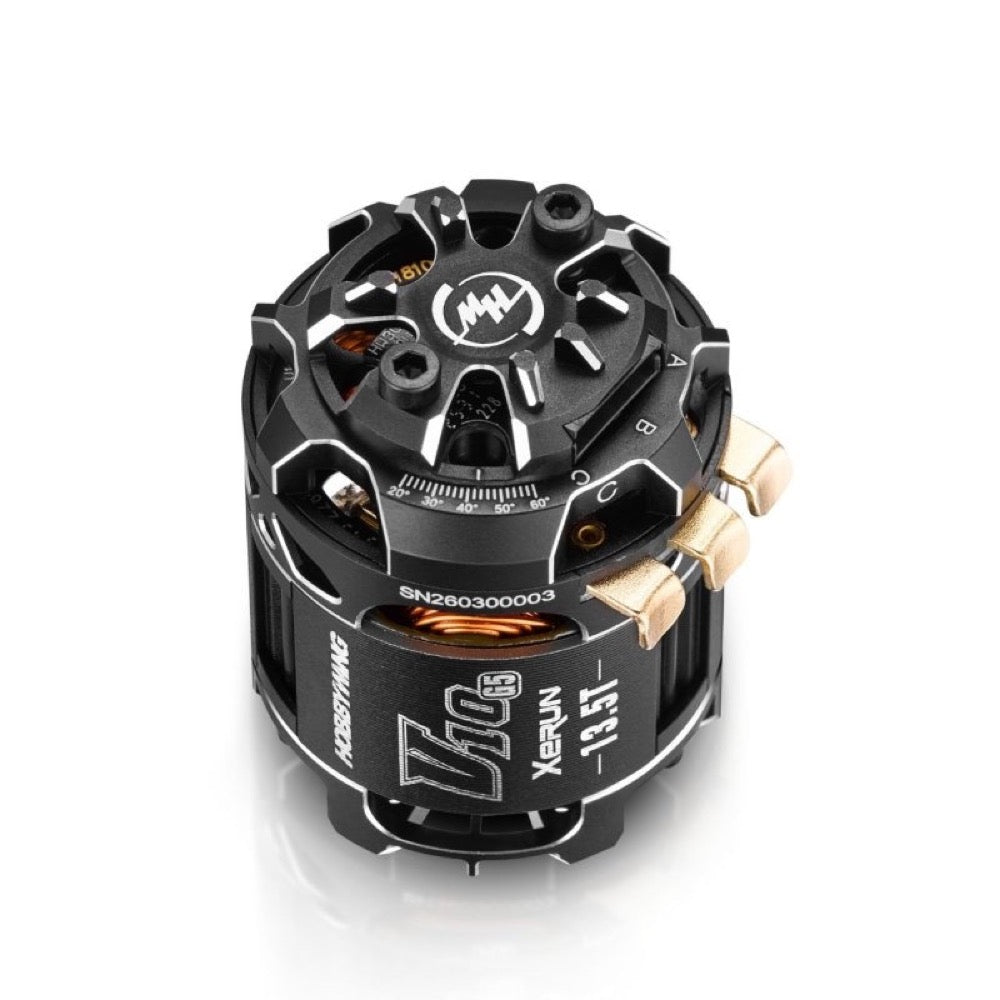

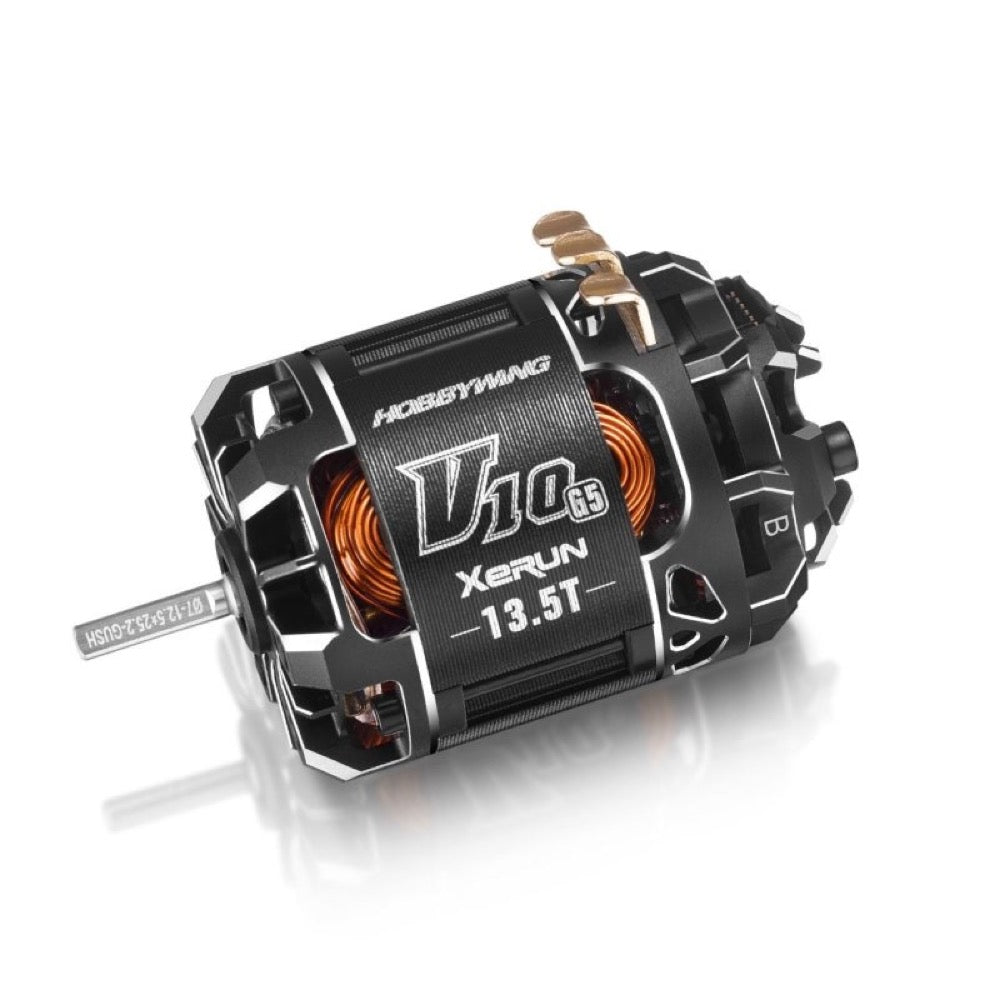

Hobbywing HW3041762 Xerun V10 Brushless Motor G5 13.5T

Product Code: HW3041762
Price coming soon
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

The XeRun V10 G5 motor from Hobbywing represents the next evolutionary step in competitive racing performance. Redesigned from the ground up, the G5 delivers 3.9% more maximum power output and over 4% improvement in efficiency under high load compared to its already impressive predecessor, the G4R. With 13g less weight than the G4R, the G5 offers a noticeably more agile and responsive driving experience on the track.

Heat management has been fundamentally revised in the G5. A new endbell design exposes more of the motor windings so that heat can be dissipated more effectively, while a patented cooling system integrated into the rotor keeps operating temperatures consistently low ? for consistent performance from run to run. A special coating on the rotor surface provides corrosion protection and improved magnetic properties, enabling higher load capacity and greater power output. In addition, the G5 has an optimized weight distribution that shifts the center of gravity closer to the center of the vehicle, improving driving stability and balance.

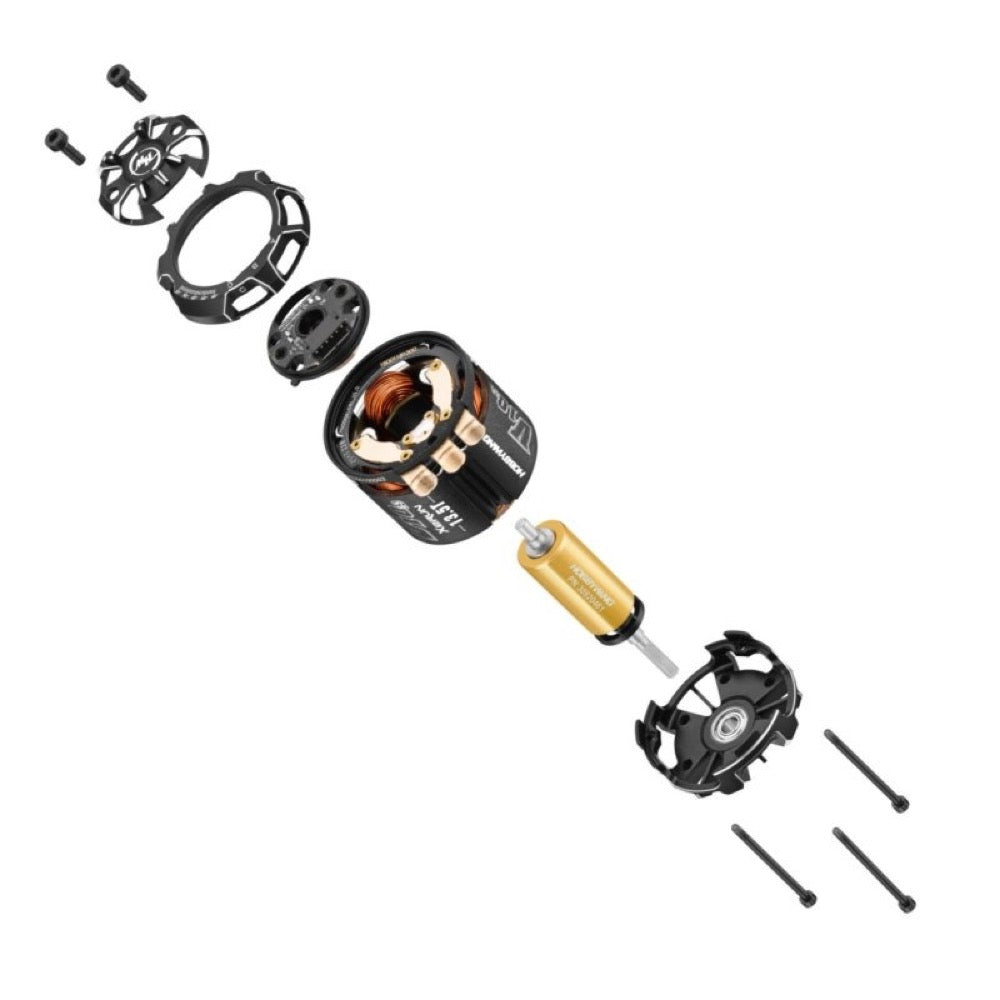

Fine tuning is taken to a new level with the G5: Adjustable Hall sensor timing accuracy and adjustable Hall sensor spacing via three included spacers (0.1 mm, 0.2 mm and 0.3 mm) allow drivers to precisely adjust the Hall sensor difference and feel of power delivery. The modular design allows quick and easy disassembly for cleaning and maintenance to keep your engine performing at its best, race after race.

Every single component of the XeRun V10 G5 has been redesigned to achieve the highest levels of performance, efficiency, durability and precise power delivery for competitive stock racing.

Specifications

  • Type: Brushless / Sensored
  • Pole: 2
  • kV value: 4050kV
  • Windings: 13.5T
  • LiPo cells: 1-3S
  • Idle current: 5.4A
  • Outer diameter: 35.8mm
  • Length: 51.5mm
  • Shaft diameter: 3.175mm
  • Weight: 138g
  • Front bearing: D9×D4×T4
  • Rear bearing: D8×D3×T4
  • Recommended controller: XeRun XR10 PRO G3 / G3X
  • Application: 1/10, 1/12
