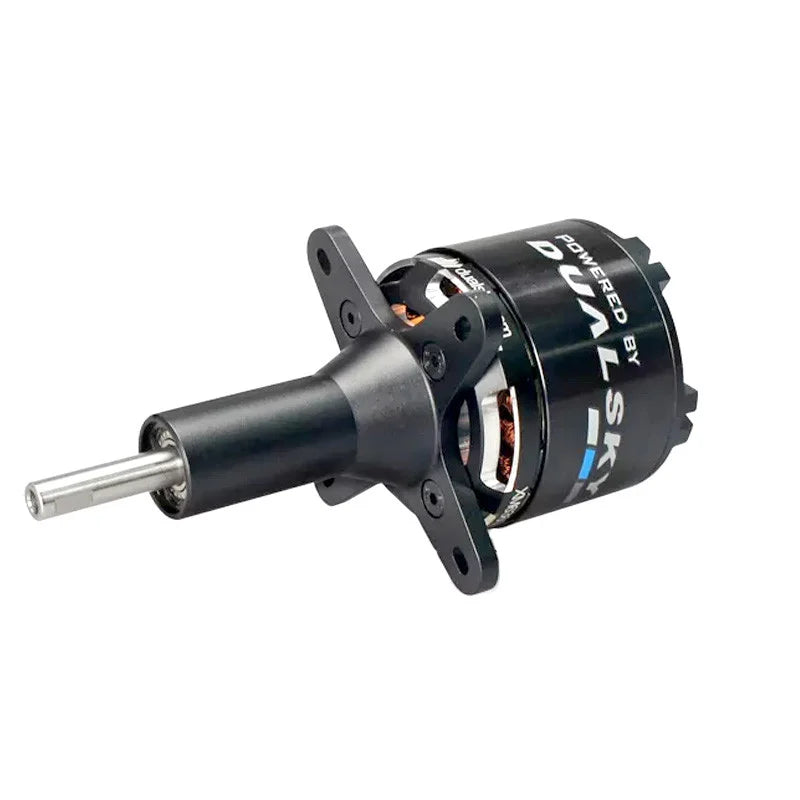

Dualsky XM6360EGL-19 220kv Brushless Glider Motor

Features

• 14 pole arc magnets provide stong direct drive torque
• Grade 220 enameled wire and high temperature epoxy adhesive of the same level are adopted with five-star overload resistance grade
• Motor front extension adopts a hollow shaft, convenient coupling design and supports EA V3 & ECO V2 series upgrade installation

• RPM/V : 220
• Weight : 725 g (weight includes MFE)
• Diameter : 63.1 mm
• Length : 63 mm, 123 mm (including extension)
• Diameter of Shaft : 8 mm, hollow
• Pitch of Holes : 32 / 44 mm
• Input Connectors : DB4
• Slots & Poles : 12N14P
• Io @ 10V (A) : 1.2
• Resistance (Ri) (mOhm) : 28
• No. of Cells : 44481
• Max. Efficiency Current : 50
• Max. Burst Current : 100
• Max. Power (15S)[W] : 4000
• Torque (mNM) : 5.4
• Recommended ESC : Summit 100HV to Summit 120HV
• Propeller : 10S: 21x12E, 22x10E, 12S: 19x10E, 20x8E, 20x10E
• Applications : Glider that weighs up to 20 kg

Download Product Manual
