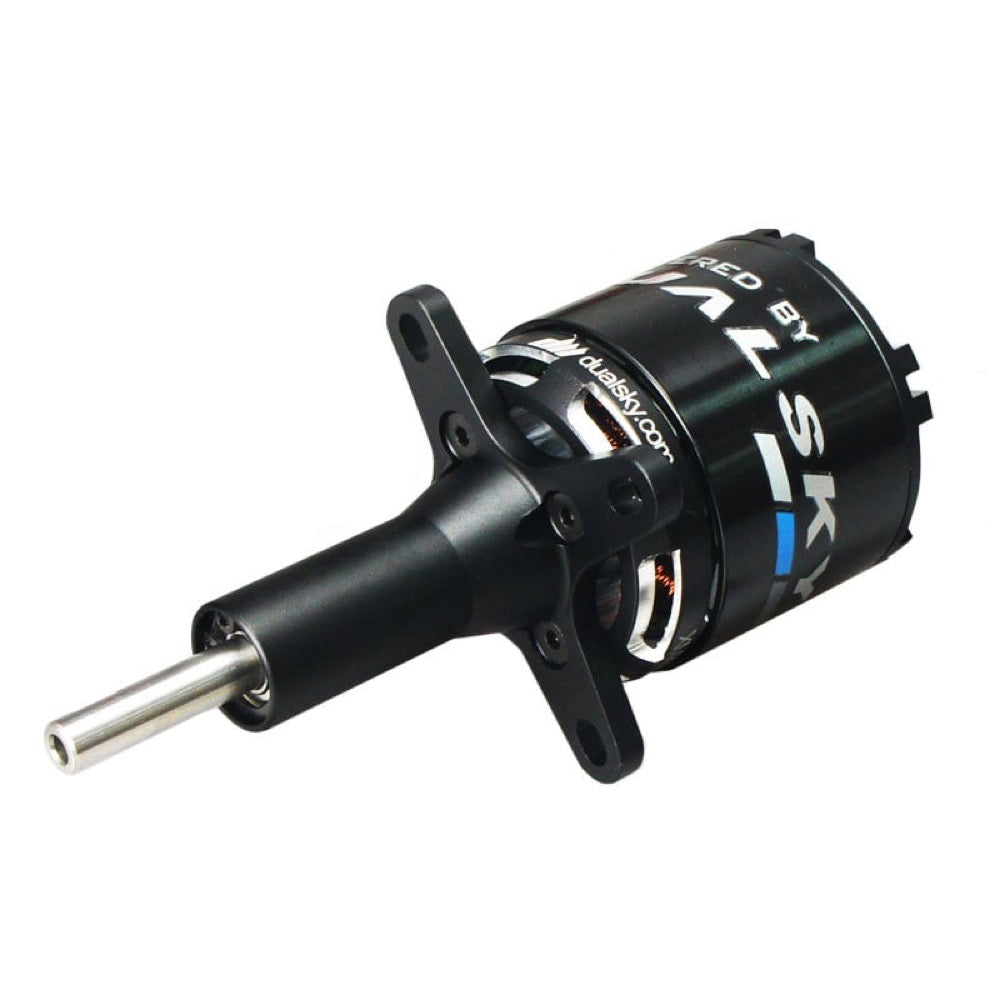

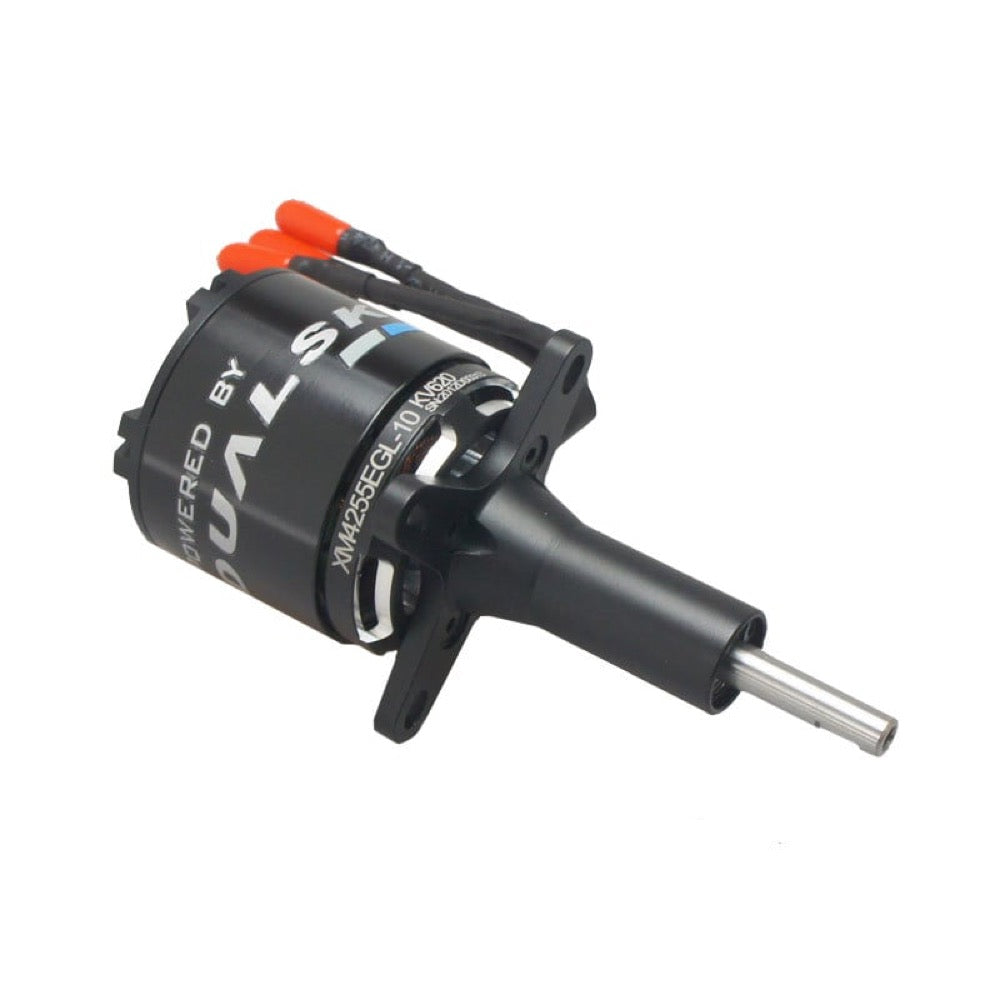

Dualsky XM4255EGL-10 620kv Brushless Glider Motor

Product Code: DSXM52069
$194.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky XM3548EGL-9 820kv Brushless Motor is compatible with RC gliders weighing up to 8400 g.

Features

  • Designed for gliders weighing up to 8400g
  • 14 pole arc magnets provide strong direct drive torque
  • Grade 220 enameled wire and high temperature epoxy adhesive of the same level are adopted with five-star overload resistance grade
  • Motor front extension adopts a hollow shaft, convenient coupling design and supports EA V3 & ECO V2 series upgrade installation
  • RPM/V: 620
  • Weight: 300 g (weight includes MFE)
  • Diameter: 43.2 mm
  • Length:
  • 49.9 mm
  • 91.9 mm (including extension)
  • Diameter of Shaft: 6 mm, hollow
  • Pitch of Holes: 25 / 25 mm
  • Input Connectors: DB4
  • Slots & Poles: 12N14P
  • Io @ 10V (A): 1.5
  • Resistance (Ri) (mOhm): 16
  • No. of Cells: 44291
  • Max. Efficiency Current: 36
  • Max. Burst Current: 72
  • Max. Power (15S)[W]: 1442
  • Torque (mNM): 1.4
  • Recommended ESC: XC-65-Lite to Summit 100 light
  • Propeller: 4S: 15x8E, 16x8E
  • 5S: 14x7E, 15x8E
  • Applications: Glider that weighs up to 8400 g
