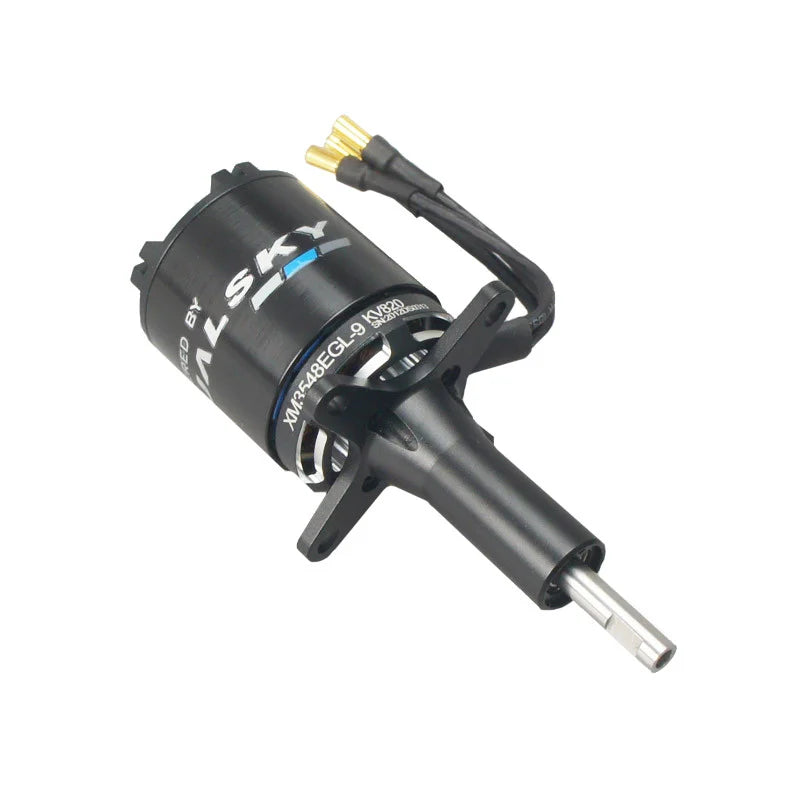

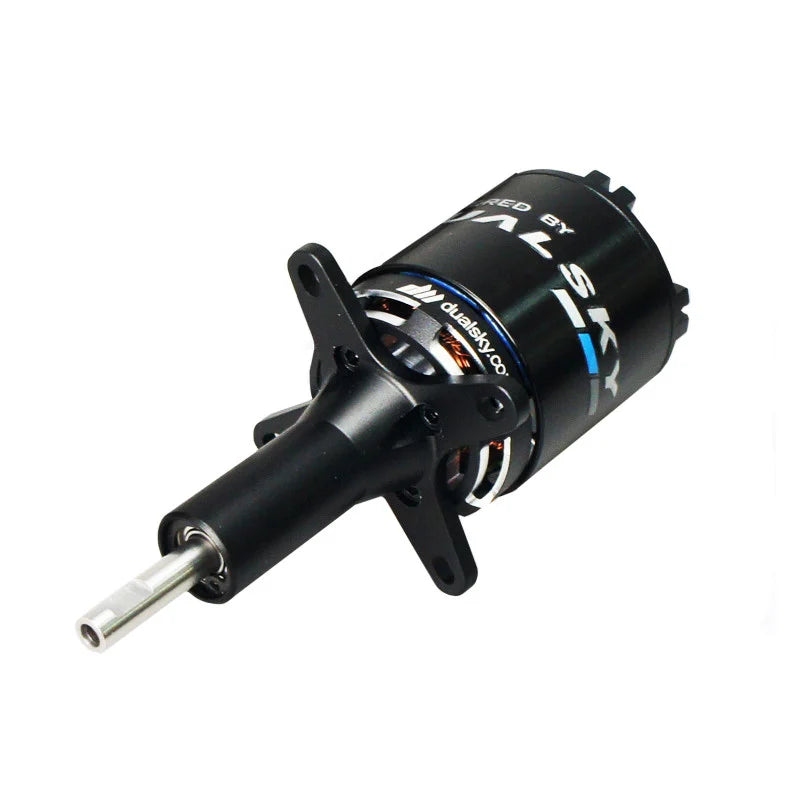

Dualsky XM3548EGL-9 820kv Brushless Glider Motor

Product Code: DSXM52068
$178.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky XM3548EGL-9 820kv Brushless Motor is compatible with medium and large scale RC gliders.

Features

  • 14 pole arc magnets provide stong direct drive torque.
  • Grade 220 enameled wire and high temperature epoxy adhesive of the same level are adopted with five-star overload resistance grade
  • Motor front extension adopts a hollow shaft, convenient coupling design and supports EA V3 & ECO V2 series upgrade installation
  • RPM / V: 820
  • Weight (g): 200 g
  • Diameter: 35 mm
  • Length: 48.2 mm, 86.2mm (inc. extension)
  • Diameter of Shaft: 5 mm (hollow)
  • Pitch of holes (mm): 19/19
  • Input Connectors: DB3
  • Slots & Poles: 12N14P
  • Io@10V (A): 1.5
  • Resistance (Ri) (mOhm): 20.5
  • No. of cells: 3 - 4
  • Max. Efficiency Current: 30 A
  • Max. Burst Current (15S): 60 A
  • Max. Power (15S): 960 W
  • Torque (mNM): 0.87
  • Recommended ESC: XC-65-Lite to Summit 100 light
  • Propeller: 3S: 14x8E, 15x6E, 15x8E, 4S: 12x7E, 13x7E, 13x8E
  • Applications: Model glider that weights up to 5600 g
