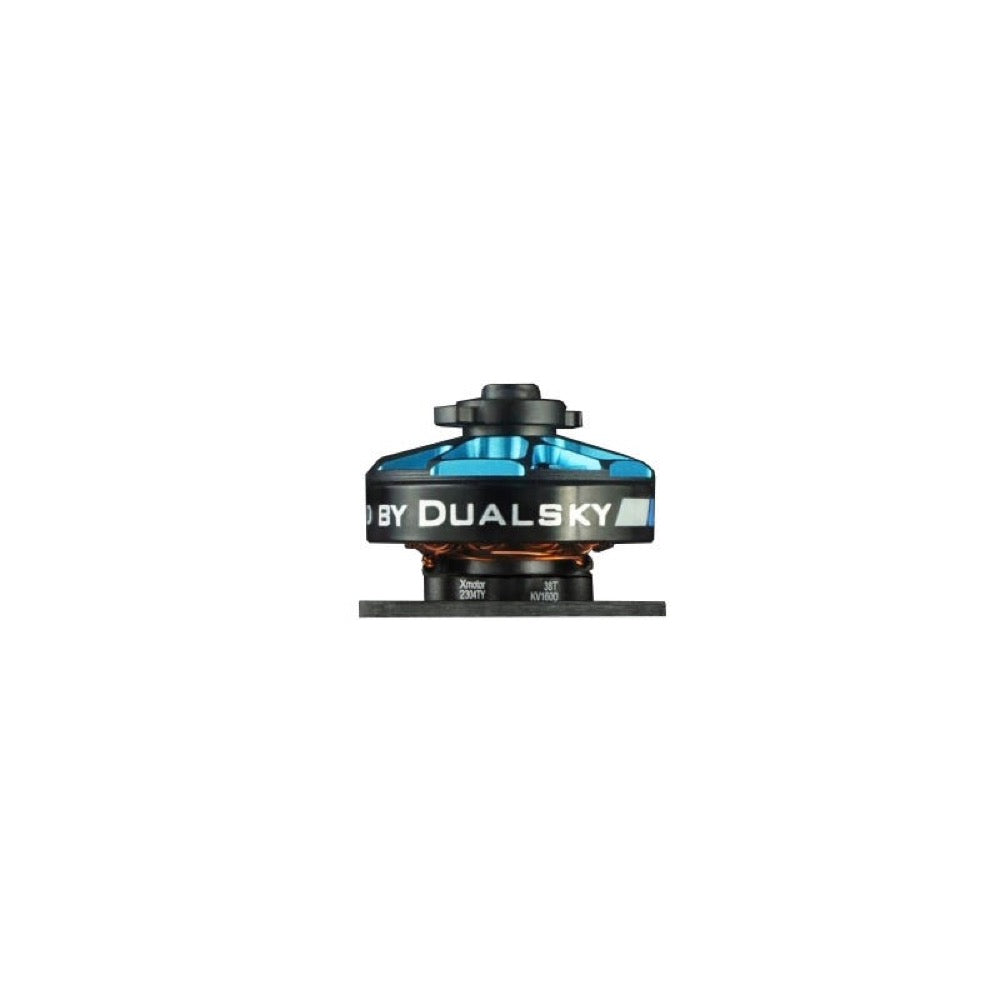

Dualsky DSXM52135 XM2304TY-38 1600kv F3P Brushless Motor

This is the Dualsky 2304 Typhoon series motor. It is great for indoor F3P, and freestyle.

Features

• Weighs only 24.7 grams
• 4mm hollow shaft
• Sleek spoked design with a blue finish

Specification

• RPM/V (KV): 1600
• Weight (g): 24.7
• Diameter (mm): 28.2
• Length (mm): 22.6
• Diameter of Shaft (mm): 4, hollow
• Pitch of holes (mm): 16/16,30/33 w/ motor mount
• Input Connectors: GC2.0, 3 Pairs
• Slots & Poles: 12N14P
• lo@10V(A): 0.55
• Resistance (Ri)(mOhm): 151
• No.of Cells(LiPo): 2S, 3S
• Max. Efficiency Current(A): 8.2
• Max. Burst Current (15S)[A]: 16.3
• Max. Power (15S)[W]: 196
• Torque (mNM): 139
• Recommended ESC: XC-22-Lite, Timing 15° (Middle)
• Propeller: 2S: 9x5, 9x6, 10x5 9x5 (3-Blade) 3S: 7x5, 8x4, 8x4.3, 7x4 (3-Blade)
• Applications: Indoor F3P, freestyle
