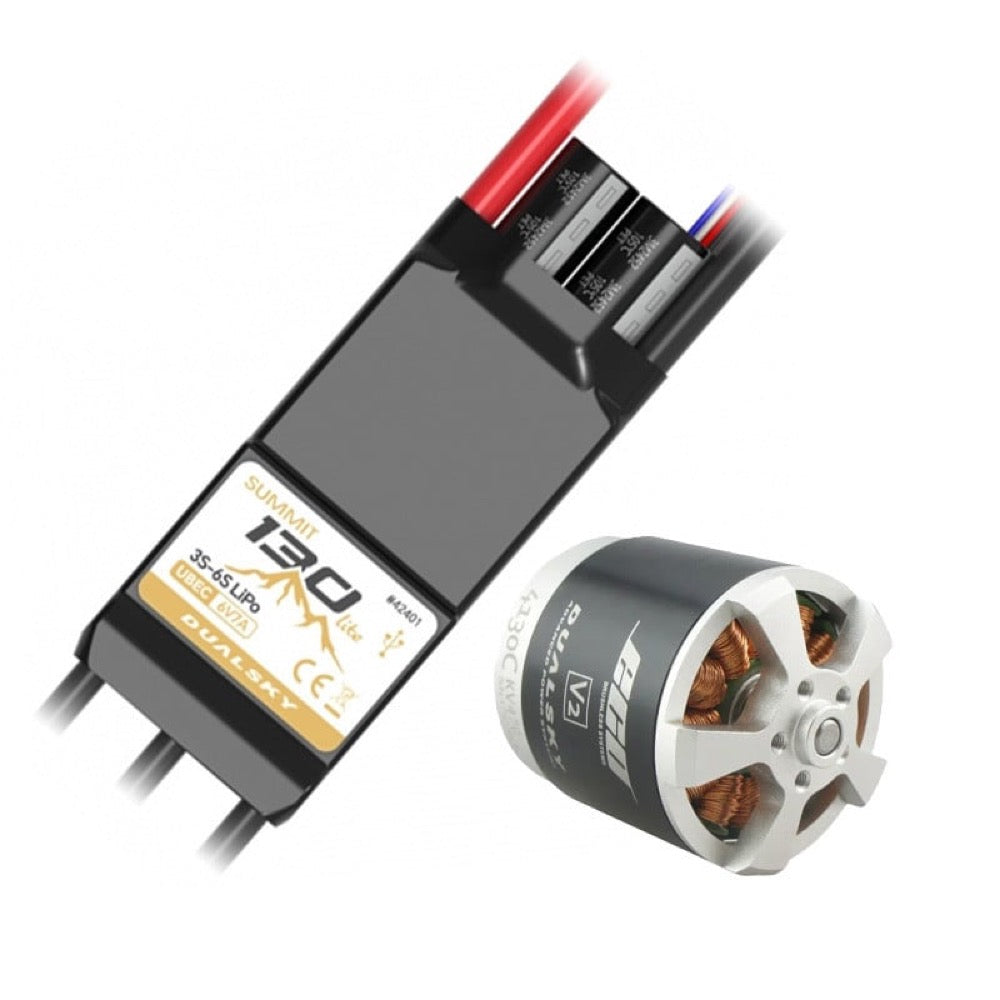

Dualsky 90E Tuning Combo with 4130C V2 375kv Motor and Summit Lite 130A ESC

Product Code: DSB59315
$255.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky 90E Tuning Combo with 4130C V2 375kv Motor and Summit Lite 130A ESC is compatible with 6S LiPo batteries and is designed for 0.80 - .110 4-stroke models.

Features

  • Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor

  • KV: 375
  • Turns: 7
  • Weight: 380g
  • Size (D x L): 49.5 x 55.2
  • Slots & Poles: 12N14P
  • Ri (mOhm): 25.2
  • Io @ 10V (A): 1.1
  • No. of Cells (LiPo): 6
  • Max. Efficiency Current (15S) [A]: 48
  • Max. Burst Current (15S) [A]: 80
  • Max. Power (15S) [W]: 1920
  • Max. Torque: 2.45Nm
  • Shaft Diameter: 6
  • Mounting Holes Pitch:
  • 30/30Input Connectors: GC4.0
  • Recommended ESC: XC8018BA
  • Propeller: 17x10E, 17x12E
  • Class: 0.80 - .110 4-stroke

ESC

  • Dimensions (LxWxH): 84 x 36 x 14.2mm (w/o wire)
  • Weight (w/ wire): 105.5g
  • Number of Cells: 3S-6S LiPo, 11.1V-22.2V
  • Continuous Current: 130A
  • Burst Current: 160A
  • Resistance (Ri) (mOhm): ~1.2 milliohms
  • Battery eliminate circuit BEC: 6.0V, Switching mode, 7A const./10A peaks
  • Signal & Frequency: Default = PWM(upto 333Hz), THR calibration Enabled
  • Timing System: Programmable (Default=18°)
  • Motor Direction: Normal - Reversed - Bidirectional (4D flight & EDF Braking)
  • Programming: USBLINK MP (BLHeli32_Suite)
  • Start Power: 50% (Programmable)
  • Work Frequency: LOW = 24KHZ, High = 24KHz (Programmable)
  • Telemetry: ON (Auto telemetry enabled, protocol=KISS)
  • Energy Recovery: YES (Default-Disable, freewheel)
  • Brake On Stop: Default=OFF (Adjustable)
  • Maximum Speeds: PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
  • Low Voltage Protection: Programmable (Default=3.00V/cell)
  • Acceleration: Default =125ms (Programmable)
  • Overheat Protection: YES(Default=140 C)
  • Water & Dust Proof: IP43
  • Beacon Beeps: YES, 20 Mins
  • Input Wires: 10AWG, 200mm
  • Wires to Motor: 12AWG, 100mm w/ DB4F
  • Signal Wires: JR, 350mm + 1pin telemetry
  • Tested Motors: Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
  • Applications: Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
