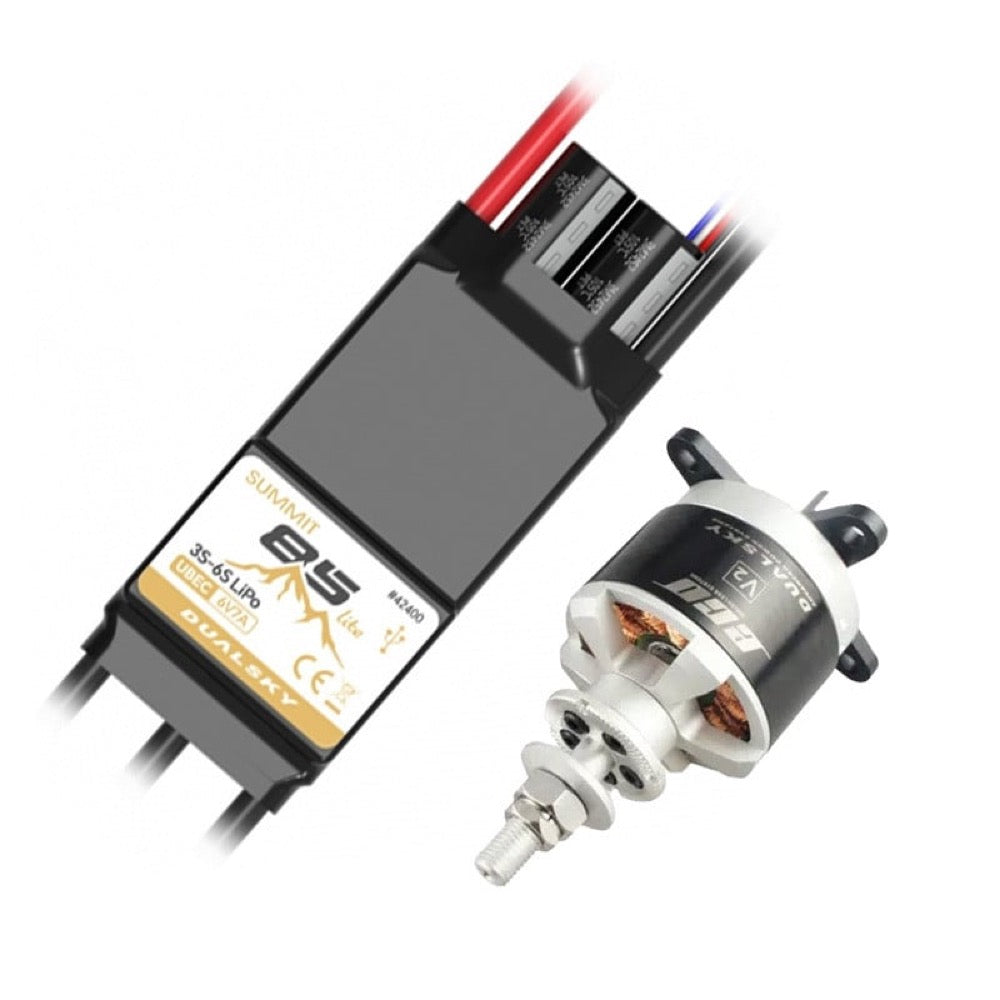

Dualsky 70E Tuning Combo with 4120C V2 500kv Motor and Summit Lite 85A ESC

Product Code: DSB59314
$217.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky 70E Tuning Combo with 4120C V2 500kv Motor and Summit Lite 85A ESC is compatible with 5S-6S LiPo batteries and is designed for .46-.55 2-stroke models.

Features

  • Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor

  • KV: 500
  • Turns: 8
  • Weight: 280g
  • Size (D x L): 49.5 x 45.2
  • Slots & Poles: 12N14P
  • Ri (mOhm): 25
  • Io @ 10V (A): 1.1
  • No. of Cells (LiPo):
  • 5S, 6SMax. Efficiency Current (15S) [A]: 36
  • Max. Burst Current (15S) [A]: 60
  • Max. Power (15S) [W]: 1440
  • Max. Torque: 1.38
  • Shaft Diameter: 6
  • Mounting Holes Pitch: 30/30
  • Input Connectors: GC4.0
  • Recommended ESC: XC-65-LITE or XC6018BA
  • Propeller: 5S: 16x8E, 15x8E or 6S: 14x7E, 15x8E
  • Class: .46-.55 2-stroke

ESC

  • Dimensions (LxWxH): 84 x 36 x 9.5mm (w/o wire)
  • Weight (w/ wire): 84g
  • Number of Cells: 3S-6S LiPo, 11.1V-22.2V
  • Continuous Current: 85A
  • Burst Current: 110A
  • Resistance (Ri) (mOhm): ~2.4 milliohm
  • Battery eliminate circuit BEC: 6.0V, Switching mode, 7A const./10A peaks
  • Signal & Frequency: Default = PWM(upto 333Hz), THR calibration Enabled
  • Timing System: Programmable (Default=18°)
  • Motor Direction: Normal - Reversed - Bidirectional (4D flight & EDF Braking)
  • Programming: USBLINK MP (BLHeli32_Suite)
  • Start Power: 50% (Programmable)
  • Work Frequency: LOW = 24KHZ, High = 24KHz (Programmable)
  • Telemetry: ON (Auto telemetry enabled, protocol=KISS)
  • Energy Recovery: YES (Default-Disable, freewheel)
  • Brake On Stop: Default=OFF (Adjustable)
  • Maximum Speeds: PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
  • Low Voltage Protection: Programmable (Default=3.00V/cell)
  • Acceleration: Default =125ms (Programmable)
  • Overheat Protection: YES(Default=140 C)
  • Water & Dust Proof: IP43
  • Beacon Beeps: YES, 20 Mins
  • Input Wires: 12AWG, 200mm
  • Wires to Motor: 12AWG, 100mm w/ DB4F
  • Signal Wires: JR, 350mm + 1pin telemetry
  • Tested Motors: Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
  • Applications: Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
