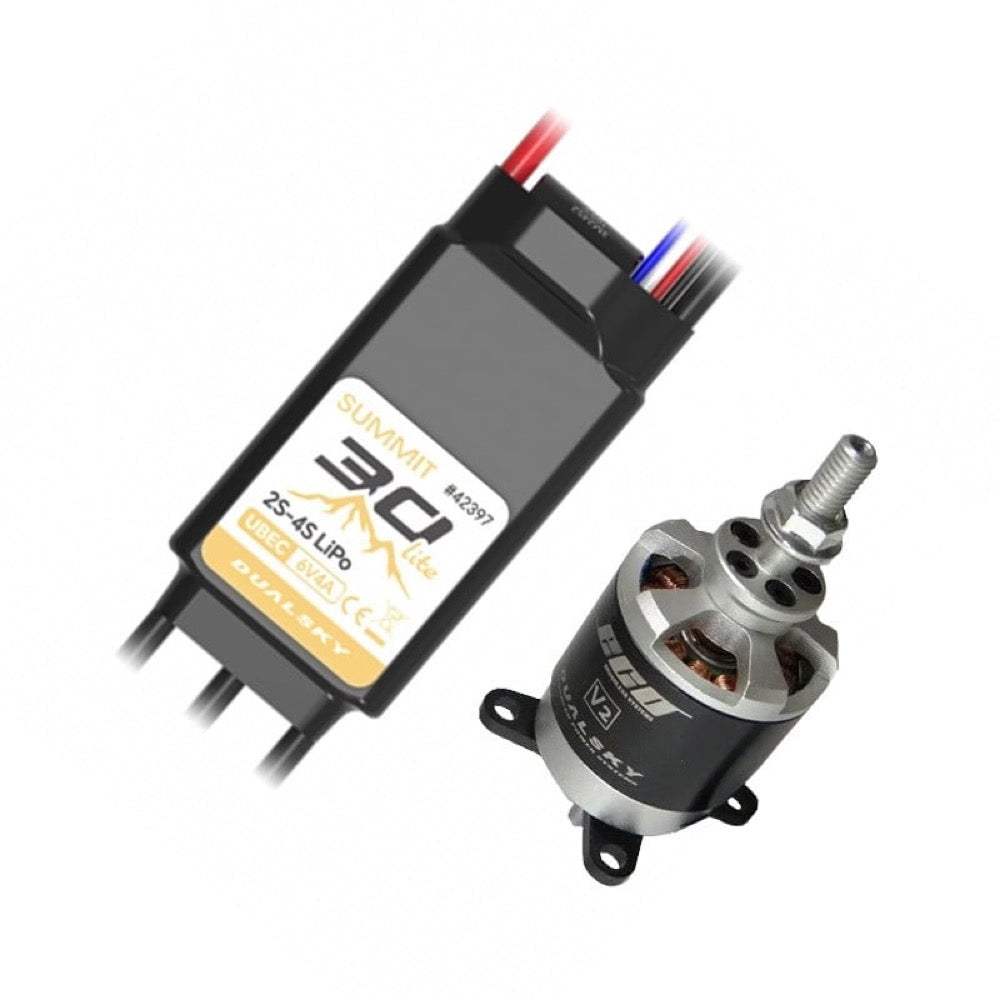

Dualsky 480 Tuning Combo with 2316C V2 1250kv Motor and Summit Lite 30A ESC

Product Code: DSB59309
$94.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky 450 Tuning Combo with 2316C V2 980kv Motor and Summit Lite 30A ESC is compatible with 3S-4S LiPo batteries and is designed for 600-1400g airplanes.

Features

  • Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor

  • KV: 1250
  • Turns: 6.5
  • Weight: 72g
  • Dimensions (D x L): 28.8 x 32.9mm
  • Slots & Poles: 12N14P
  • Ri (mOhm): 52.2
  • Io @10V (A): 1
  • No. of Cells: 2 - 3
  • Max. Efficiency Current (15S) [A]: 18
  • Max. Burst Current (15S) [A]: 30
  • Max. Power (15S)[W]: 360
  • Max Torque [NxM]:
  • 0.28Shaft Diameter (mm): 3.175
  • Mounting holes pitch: 16/16
  • Input Connectors: GC3.5
  • Recommended ESC: XC-45-LITE or XC3012BA
  • Propeller: 2S: 12x6E, 13x6.5E
  • 3S: 9x6E, 10x7E
  • Class: 600-1400g airplanes

ESC

  • Dimensions (LxWxH): 44 x 23 x 7.2mm (w/o wire)
  • Weight (w/ wire): 19.7g
  • Number of Cells: 2S-4S LiPo, 7.4V-14.8V
  • Continuous Current: 30A
  • Burst Current: 50A
  • Resistance (Ri) (mOhm): ~2.8 milliohms
  • Battery eliminate circuit BEC: 6.0V, Switching mode, 4A const./8A peaks
  • Signal & Frequency: Default = PWM(upto 333Hz), THR calibration Enabled
  • Timing System: Programmable (Default=16°)
  • Motor Direction: Normal - Reversed - Bidirectional (4D flight & EDF Braking)
  • Programming: USBLINK MP (BLHeli32_Suite)
  • Start Power: 100% (Programmable)
  • Work Frequency: LOW = 24KHZ, High = 24KHz (Programmable)
  • Telemetry: ON (Auto telemetry enabled, protocol=KISS)
  • Energy Recovery: YES (Default-Disable, freewheel)
  • Brake On Stop: Default=OFF (Adjustable)
  • Maximum Speeds: PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
  • Low Voltage Protection: Programmable (Default=3.00V/cell)
  • Acceleration: Default = Maximum (Programmable)
  • Overheat Protection: YES(Default=140 C)
  • Water & Dust Proof: IP43
  • Beacon Beeps: YES, 20 Mins
  • Input Wires: 18AWG, 120mm
  • Wires to Motor: 18AWG, 70mm w/ DB3F
  • Signal Wires: JR, 200mm + 1pin telemetry
  • Tested Motors: Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
  • Applications: Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
