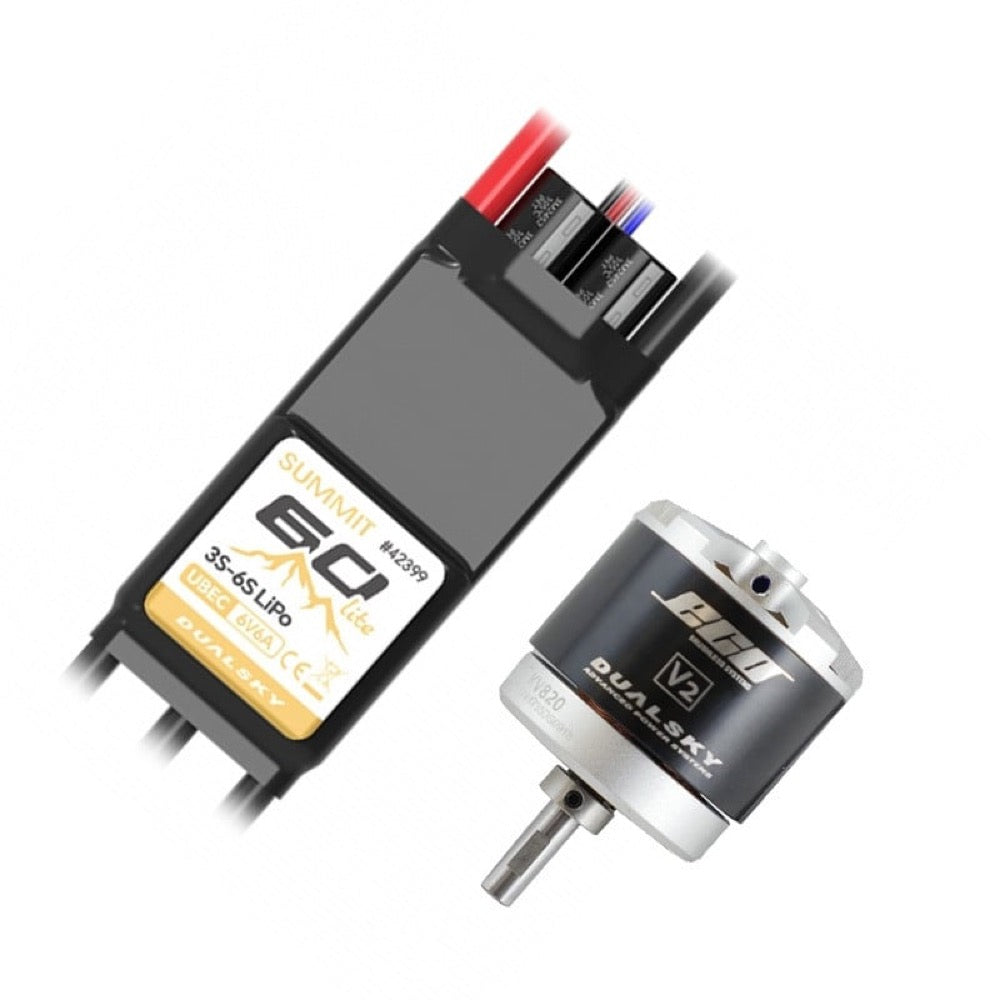

Dualsky 40E Tuning Combo with 3520C V2 820kv Motor and Summit Lite 60A ESC

Product Code: DSB59312
$167.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky 40E Tuning Combo with 3520C V2 820kv Motor and Summit Lite 60A ESC is compatible with 3S-4S LiPo batteries and is designed for .50 4-stroke or .32-.40 2-stroke (40E) models.

Features

  • Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor

  • KV: 820
  • Turns: 5
  • Weight (g): 210
  • Dimensions(D x L) [mm]: 43.2x42.4
  • Slots & Poles: 12N14P
  • Ri (mOhm):
  • 18.7lo @10V (A): 1.7
  • No. of Cells (LiPo): 3.4
  • Max. Efficiency Current [A]: 40
  • Max. Burst Current (15S) [A]: 65
  • Max. Power(15S) [W]:
  • 1040Max. Torque [N*M]: 0.91
  • Shaft diameter(mm): 6
  • Mounting holes pitch: 25/25
  • Input Connectors: GC4.0
  • Recommended ESC: XC-65-Lite or XC6018BA
  • Propeller: 4S: 13x8E, 14x76, 15x6E
  • Class: .50 4-stroke or .32-.40 2-stroke (40E)

ESC

  • Dimensions (LxWxH): 66 x 25 x 10.7mm (w/o wire)
  • Weight (w/ wire): 49g
  • Number of Cells: 3S-6S LiPo, 11.1V-22.2V
  • Continuous Current: 60A
  • Burst Current: 80A
  • Resistance (Ri) (mOhm): ~1.4 milliohms
  • Battery eliminate circuit BEC: 6.0V, Switching mode, 6A const./10A peaks
  • Signal & Frequency: Default = PWM(upto 333Hz), THR calibration Enabled
  • Timing System: Programmable (Default=16°)
  • Motor Direction: Normal - Reversed - Bidirectional (4D flight & EDF Braking)
  • Programming: USBLINK MP (BLHeli32_Suite)
  • Start Power: 100% (Programmable)
  • Work Frequency: LOW = 24KHZ, High = 24KHz (Programmable)
  • Telemetry: ON (Auto telemetry enabled, protocol=KISS)
  • Energy Recovery: YES (Default-Disable, freewheel)
  • Brake On Stop:
  • Default=OFF (Ajustable): Maximum Speeds
  • PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz : with sine: 280k erpm
  • Low Voltage Protection: Programmable (Default=3.00V/cell)
  • Acceleration: Default =125ms (Programmable)
  • Overheat Protection: YES(Default=140 C)
  • Water & Dust Proof: IP43
  • Beacon Beeps: YES, 20 Mins
  • Input Wires: 14AWG, 150mm
  • Wires to Motor: 14AWG, 80mm w/ DB4F
  • Signal Wires: JR, 350mm + 1pin telemetry
  • Tested Motors:
  • Dualsky EG, EAV3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
  • Applications: Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
