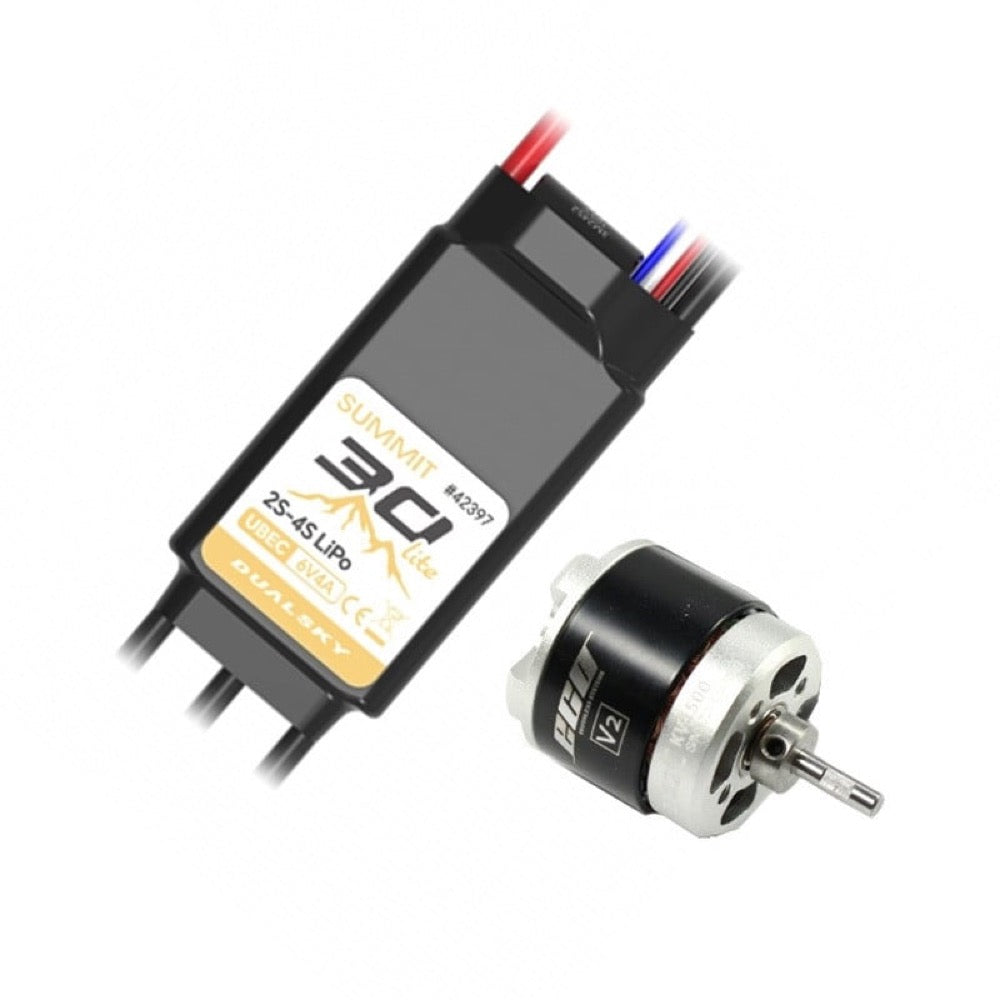

Dualsky 400H Tuning Combo with 2312C V2 1500kv Motor and Summit Lite 30A ESC

Product Code: DSB59307
$83.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky 400H Tuning Combo with 2312C V2 1500kv Motor and Summit Lite 30A ESC is compatible with 2S-3S LiPo batteries and is designed for 400-800g sports airplanes, 400 size.

Features

  • Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor

  • Capacity (mAh): 900
  • Voltage (V): 18.5
  • Energy (Wh): 16.65
  • Number of Cells: 5S1P
  • Dimensions L x W x T (mm): 66x30x34
  • Weight (g): 124
  • Wiring & Connector: 14AWG (XT60)
  • Max Charge: 12C
  • Max Charge Current (A): 11
  • Max Cont. Discharge: 120C
  • Max Cont. Current (A): 108
  • Max Cont. Output (W): 2000
  • Aerobatic Models: 2.3kg
  • Extreme 3D Models: 1.6kg
  • Applications: High power models & FPV racing

ESC

  • Dimensions (LxWxH): 44 x 23 x 7.2mm (w/o wire)
  • Weight (w/ wire): 19.7g
  • Number of Cells: 2S-4S LiPo, 7.4V-14.8V
  • Continuous Current: 30A
  • Burst Current: 50A
  • Resistance (Ri) (mOhm): ~2.8 milliohms
  • Battery eliminate circuit BEC: 6.0V, Switching mode, 4A const./8A peaks
  • Signal & Frequency: Default = PWM(upto 333Hz), THR calibration Enabled
  • Timing System: Programmable (Default=16°)
  • Motor Direction: Normal - Reversed - Bidirectional (4D flight & EDF Braking)
  • Programming: USBLINK MP (BLHeli32_Suite)
  • Start Power: 100% (Programmable)
  • Work Frequency: LOW = 24KHZ, High = 24KHz (Programmable)
  • Telemetry: ON (Auto telemetry enabled, protocol=KISS)
  • Energy Recovery: YES (Default-Disable, freewheel)
  • Brake On Stop: efault=OFF (Adjustable)
  • Maximum Speeds: PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
  • Low Voltage Protection: Programmable (Default=3.00V/cell)
  • Acceleration: Default = Maximum (Programmable)
  • Overheat Protection: YES(Default=140 C)
  • Water & Dust Proof: IP43
  • Beacon Beeps: YES, 20 Mins
  • Input Wires: 18AWG, 120mm
  • Wires to Motor: 18AWG, 70mm w/ DB3F
  • Signal Wires: JR, 200mm + 1pin telemetry
  • Tested Motors: Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
  • Applications: Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
