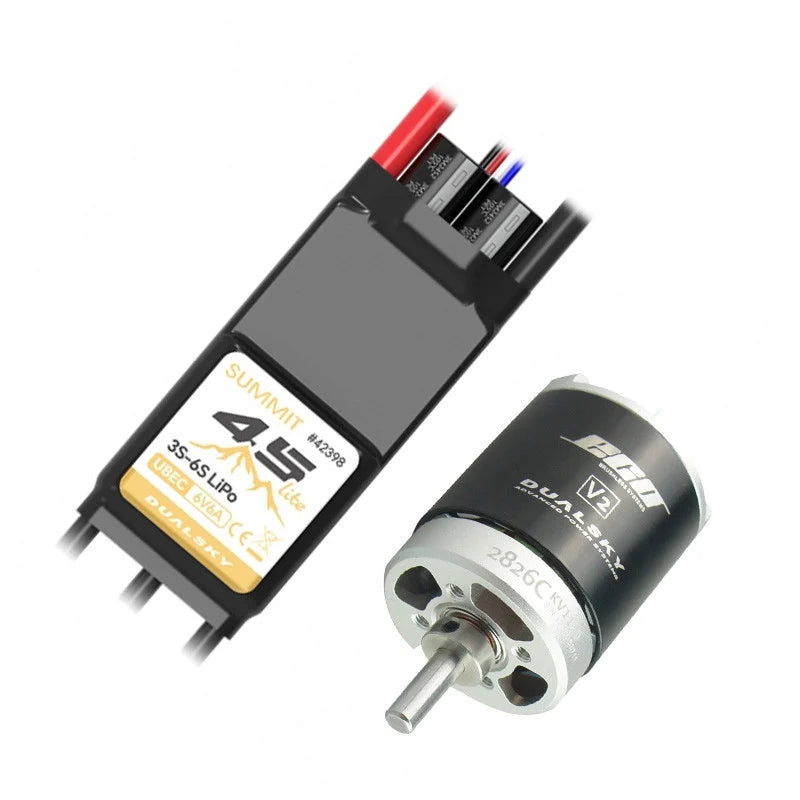

Dualsky 30E Tuning Combo with 2826C V2 850kv Motor and Summit Lite 45A ESC

Product Code: DSB59311
$145.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky 30E Tuning Combo with 2826C V2 850kv Motor and Summit Lite 45A ESC is compatible with 3S-4S LiPo batteries and is designed for .25-.32 (30E) Class (e.g. Extreme Flight 48inch airplanes.)

Features

  • Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor Specs

  • KV: 850
  • Weight: 167g
  • Turns: 4.5
  • Dimensions: 3.52 x 46.2
  • Slots & poles: 12N14P
  • Ri(mOhm): 26.9
  • Io @10V (A): 1.7
  • No. of cells (LiPo): 3S-4S
  • Max Efficiency Current (A): 30
  • Max. Burst Current (15S) [A]: 45
  • Max. Power (15S) [W]: 720
  • Max Torque [N*M]: 0.61
  • Shaft Diameter (mm): 5
  • Mounting Holes pitch: 19/19
  • Input Connectors: GC3.5
  • Recommended ESC: XC-65-LITE or XC6018BA
  • Propeller: 3S: 15 x 8E, 14 x 7E, 4S: 13 x 6.5E, 12 x 7E
  • Class: .25-.32 (30E) Class e.g. Extreme Flight 48inch airplanes

ESC Specs

  • Dimensions (LxWxH): 66 x 25 x 10.7mm (w/o wire)
  • Weight (w/ wire): 44g
  • Number of Cells: 3S-6S LiPo, 11.1V-22.2V
  • Continuous Current: 45A
  • Burst Current: 70A
  • Resistance (Ri) (mOhm): ~3.0 milliohms
  • Battery eliminate circuit BEC: 6.0V, Switching mode, 6A const./10A peaks
  • Signal & Frequency: Default = PWM(upto 333Hz), THR calibration Enabled
  • Timing System: Programmable (Default=16°)
  • Motor Direction: Normal - Reversed - Bidirectional (4D flight & EDF Braking)
  • Programming: USBLINK MP (BLHeli32_Suite)
  • Start Power: 100% (Programmable)
  • Work Frequency: LOW = 24KHZ, High = 24KHz (Programmable)
  • Telemetry: ON (Auto telemetry enabled, protocol=KISS)
  • Energy Recovery: YES (Default-Disable, freewheel)
  • Brake On Stop: Default=OFF (Adjustable)
  • Maximum Speeds: PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
  • Low Voltage Protection: Programmable (Default=3.00V/cell)
  • Acceleration: Default =125ms (Programmable)
  • Overheat Protection: YES(Default=140 C)
  • Water & Dust Proof: IP43
  • Beacon Beeps: YES, 20 Mins
  • Input Wires: 14AWG, 150mm
  • Wires to Motor: 16AWG, 80mm w/ DB3F
  • Signal Wires: JR, 350mm + 1pin telemetry
  • Tested Motors: Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
  • Applications: Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
