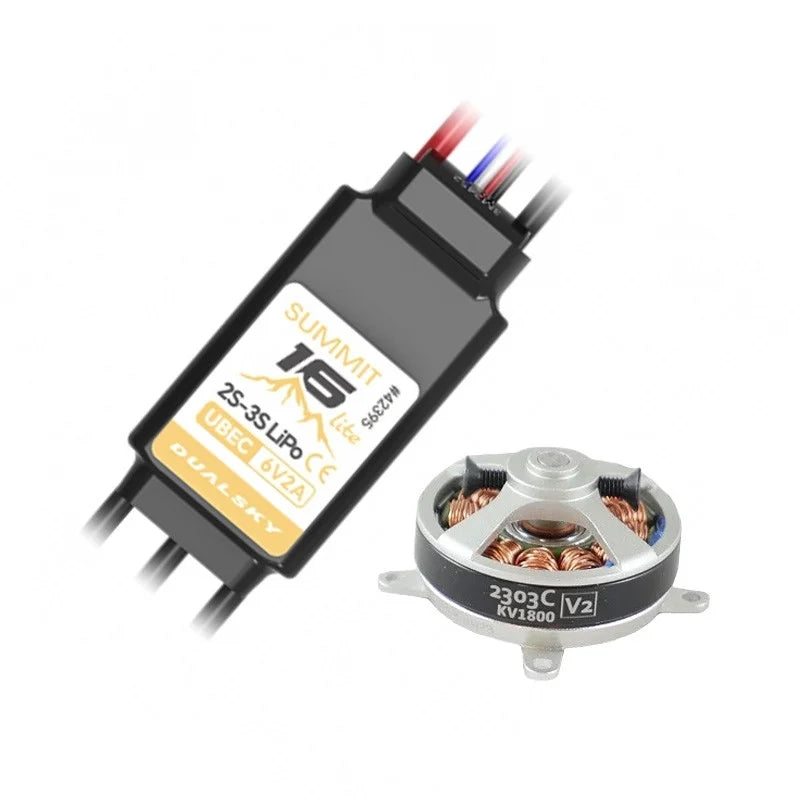

Dualsky 180 Tuning Combo with 2303C V2 1800kv Motor and Summit Lite 16A ESC

Product Code: DSB59303
$59.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky 180 Tuning Combo with 2303C V2 1800kv Motor and Summit Lite 16A ESC is compatible with 2S-3S LiPo batteries and is designed for 100-150g airplanes (e.g. F3P or indoor freestyle).

Features

  • Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Motor Specs

  • KV: 1800
  • Turns: 25
  • Weight: 19g
  • Dimensions: 28.5 x 15.7mm
  • Slots & Poles: 12N14P
  • Ri (mOhm): 276
  • Io @ 10V (A): 0.4
  • No. of Cells (LiPo): 2..3
  • Max. Efficiency Current [A]: 6
  • Max Burst Current (15S) [A]: 10
  • Max. Power (15S) [W]: 80
  • Max Torque [N*M]: 0.064
  • Shaft Diameter (mm): 3.175
  • Mounting Holes Pitch: 32
  • Input Connectors: GC2.0
  • Recommended ESC: XC-12-LITE or XC1010BA
  • Propeller: 2S: PT 9x3E, 8x4.7SF, 3S: 5x3E, 5.1x4.5E
  • Class: 100-150g airplanes e.g. F3P or indoor freestyle

ESC Specs

  • Dimensions (LxWxH): 32 x 15 x 5.5mm (w/o wire)
  • Weight (w/ wire) 10.2g
  • Number of Cells: 2S-3S LiPo, 7.4V-11.1V
  • Continuous Current: 16A
  • Burst Current: 30A
  • Resistance (Ri) (mOhm): ~4.8 milliohms
  • Battery eliminate circuit BEC: 6.0V, Switching mode, 2A const./4A peaks
  • Signal & Frequency: Default = PWM(upto 333Hz), THR calibration Enabled
  • Timing System: Programmable (Default=16°)
  • Motor Direction: Normal - Reversed - Bidirectional (4D flight & EDF Braking)
  • Programming: USBLINK MP (BLHeli32_Suite)
  • Start Power: 100% (Programmable)
  • Work Frequency: LOW = 24KHZ, High = 24KHz (Programmable)
  • Telemetry: ON (Auto telemetry enabled, protocol=KISS)
  • Energy Recovery: YES (Default-Disable, freewheel)
  • Brake On Stop: Default=OFF (Adjustable)
  • Maximum Speeds: PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k, erpm / Dshot at 16kHz with sine: 280k erpm
  • Low Voltage Protection: Programmable (Default=3.00V/cell)
  • Acceleration: Default = Maximum (Programmable)
  • Overheat Protection: YES(Default=140 C)
  • Water & Dust Proof: IP43
  • Beacon Beeps: YES, 20 Mins
  • Input Wires: 20AWG, 100mm w/ JST
  • Wires to Motor: 20AWG, 50mm w/ DB2F
  • Signal Wires: JR, 150mm + 1pin telemetry
    Tested Motors: Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
  • Applications: Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
