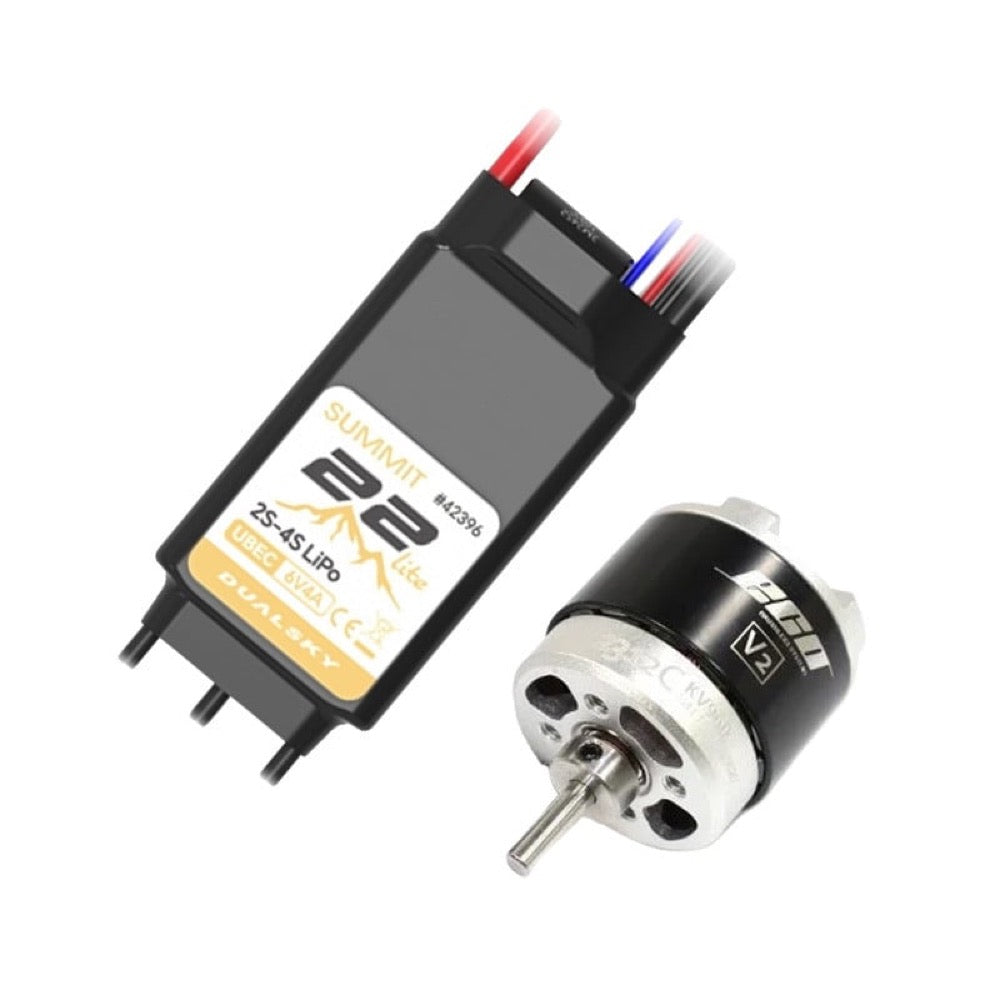

Dualsky 400 Tuning Combo with 2312C V2 960kv Motor and Summit Lite 22A ESC

Product Code: DSB59306
$81.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

This Dualsky 400 Tuning Combo with 2312C V2 960kv Motor and Summit Lite 22A ESC is compatible with 3S-4S LiPo batteries and is designed for 400-800g sports airplanes, 400 size.

Features

  • Includes new generation Summit Lite ESC
  • Selectable rotation direction
  • Program the ESC using the Dualsky USB Link Multi Purpose (DSB22382, sold separately)
  • Integrated high-current UBEC with excellent peak performance
  • Low voltage, overheat, throttle, current, and low RPM protection.

Specification

Motor

  • KV: 960
  • Turns: 11.5
  • Weight: 58
  • Dimensions: 28.8 x 28.9
  • Slots & Poles: 12N14P
  • Ri (mOhm): 123.5
  • Io@10V: 0.5
  • No. of cells: 3S-4S
  • Max. Efficiency Current [A]: 13
  • Max. Burst Current (15S) [A]: 21.5
  • Max. Power (15S)[A]: 258
  • Max. Torque [N*M]: 0.26
  • Shaft diameter: 3.175mm
  • Mounting holes pitch: 16/16
  • Input Connectors: GC3.5
  • Recommended ESC: XC-22-LITE or XC2512BA
  • Propeller: 3S: 10x5E, 10x7E
  • 4S:9x4.5E, 8x6E
  • Class: 400 size, 400-800g sports airplanes

ESC

  • Dimensions (LxWxH): 44 x 23 x 7.2mm (w/o wire)
  • Weight (w/ wire): 18.2g
  • Number of Cells: 2S-4S LiPo, 7.4V-14.8V
  • Continuous Current: 22A
  • Burst Current: 40A
  • Resistance (Ri) (mOhm): ~6.0 milliohms
  • Battery eliminate circuit BEC: 6.0V, Switching mode, 4A const./8A peaks
  • Signal & Frequency: Default = PWM(upto 333Hz), THR calibration Enabled
  • Timing System: Programmable (Default=16°)
  • Motor Direction: Normal - Reversed - Bidirectional (4D flight & EDF Braking)
  • Programming: USBLINK MP (BLHeli32_Suite)
  • Start Power: 100% (Programmable)
  • Work Frequency: LOW = 24KHZ, High = 24KHz (Programmable)
  • Telemetry: ON (Auto telemetry enabled, protocol=KISS)
  • Energy Recovery: YES (Default-Disable, freewheel)
  • Brake On Stop: Default=OFF (Adjustable)
  • Maximum Speeds: PWM at 8KHz: 510k erpm, Multishot at 16kHz: 450k erpm / Dshot at 8kHz: 470k erpm / Dshot at 16kHz with sine: 280k erpm
  • Low Voltage Protection: Programmable (Default=3.00V/cell)
  • Acceleration: Default = Maximum (Programmable)
  • Overheat Protection: YES(Default=140 C)
  • Water & Dust Proof: IP43
  • Beacon Beeps: YES, 20 Mins
  • Input Wires: 18AWG, 120mm
  • Wires to Motor: 20AWG, 70mm w/ DB2F
  • Signal Wires: JR, 200mm + 1pin telemetry
  • Tested Motors: Dualsky EG, EA V3 series, Dualsky EVO V2 line, Dualsky GA line. * Please follow the parameter compatibility requirements of the motor
  • Applications: Middle class electric powered gliders, 3D/ sports aircraft, F3As and Fixed wing UAVs/ eVOLs
