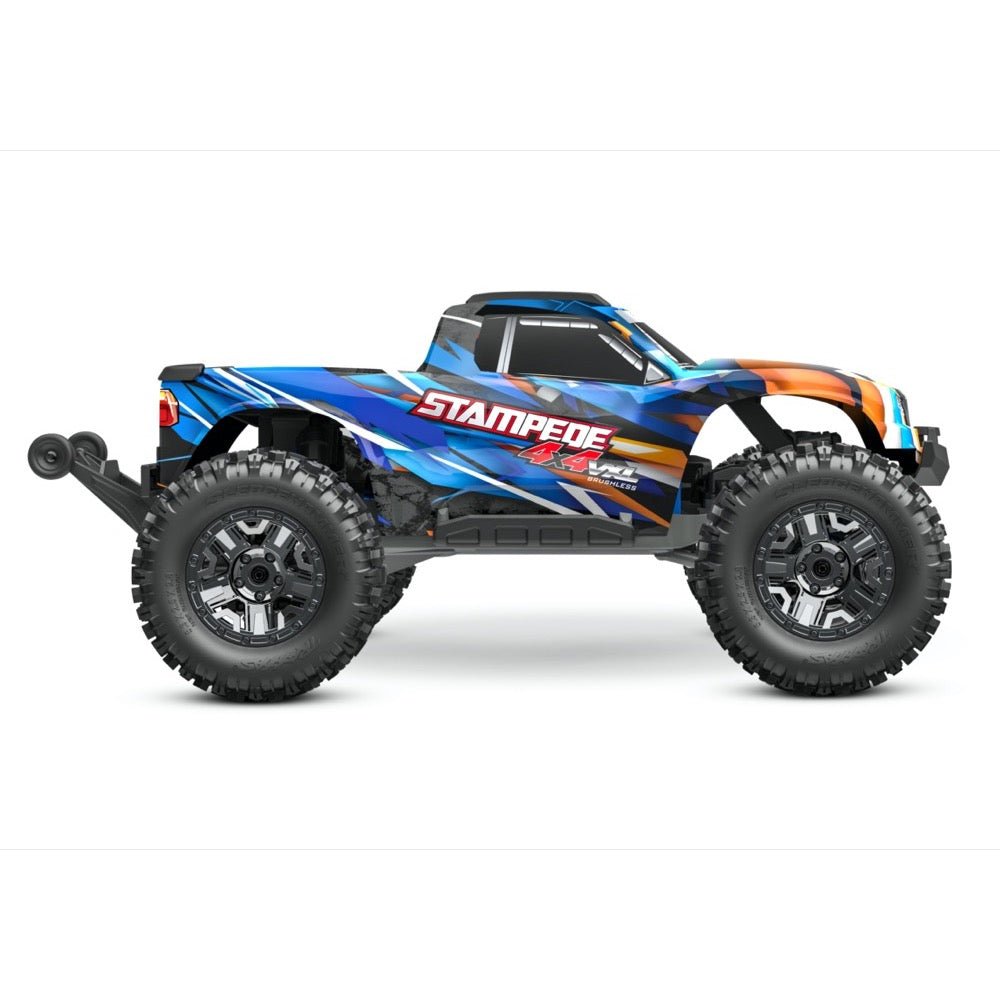

Traxxas Stampede 4x4 Brushless 3S VXL 1/10 RC Monster Truck (Orange) 90376-4

BACK WITH A VENGEANCE

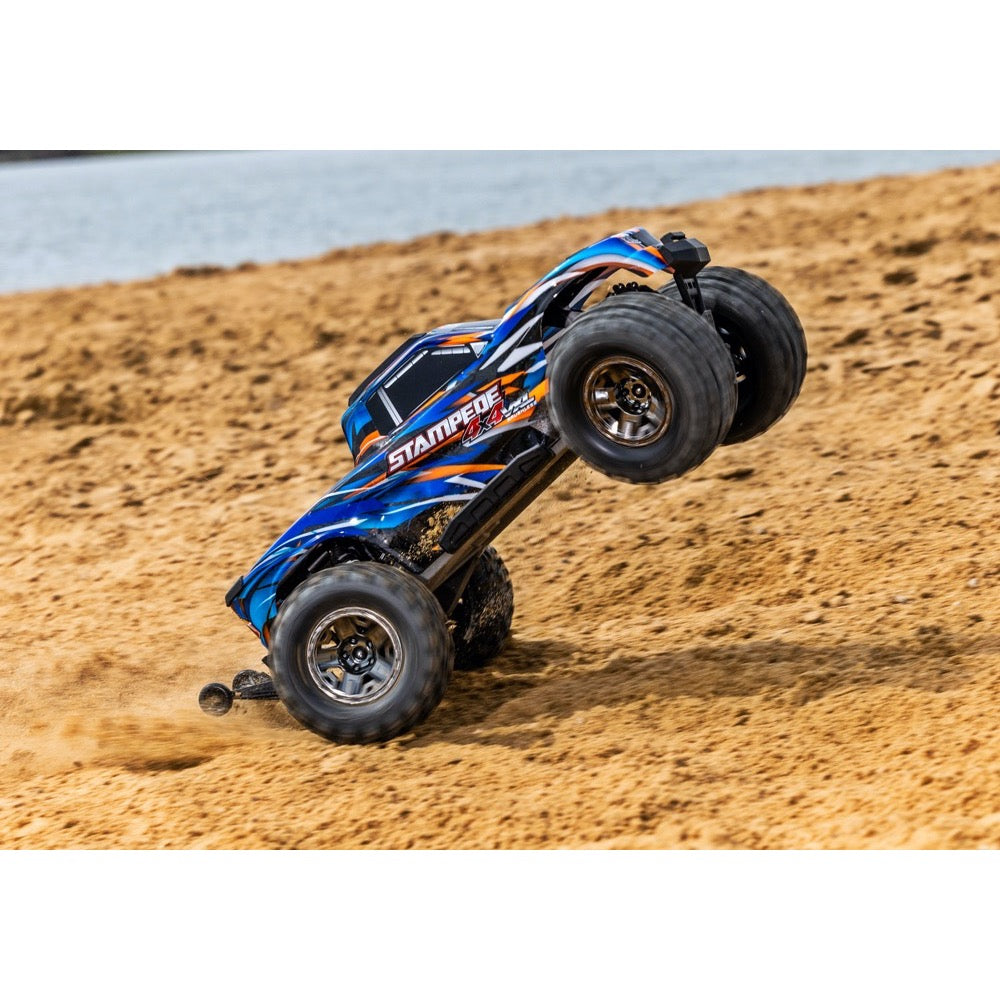

Stampede® 4X4 VXL is back–bigger and stronger than ever before! Backed by the massive torque of the Velineon® 540XL motor, Stampede muscles its way over the toughest obstacles and reaches speeds of 60 mph and beyond. Stampede 4X4 comes outfitted to shred any terrain with the strength of Traxxas’ Extreme Heavy Duty Upgrade Kit and aggressive grip of its huge 5.3″ Sledgehammer® tires. Drive harder, go faster, hang tougher—nothing stops Stampede 4X4 VXL!

540XL TORQUE

For those who believe “there’s no replacement for displacement,” Traxxas has built a monster truck for you. Stampede 4X4 VXL packs the same Velineon 540XL brushless motor found in the Maxx® extreme monster truck. It’s the largest motor we’ve ever offered in a truck this size. The Velineon VXL-3s™ speed control rolls out the power smoothly utilizing large 6.5 mm connectors and an integrated cooling fan for fast, reliable fun.

EXTREME HEAVY DUTY UPGRADE KIT

Along with added power, Stampede 4X4 VXL also gets a massive boost in strength with its factory-installed Extreme Heavy Duty Upgrade Kit. The kit replaces key drivetrain and suspension components with beefed-up parts made for ultimate strength and durability. From the HD suspension arms to the steel wheel hubs, this is the strongest driveline ever offered in a Stampede.

EXTREME SLEDGEHAMMER GRIP

Stampede 4X4 VXL relies on huge Sledgehammer tires to put its massive torque to the ground. The 5.3″ tall Sledgehammers lift Stampede skyward for superior ground clearance and a menacing stance. The open-block tread design clears away mud and debris for unrivaled traction on loose surfaces. Sledgehammer tires come pre-glued with performance foam inserts and they’re TSM®-rated for speeds of 60 mph and beyond!

INNOVATION

Traxxas uses technology and innovation to deliver a fun and exciting RC experience with more power, speed, and convenience than you ever thought possible.

DETAILS

Our engineers evaluated every detail on the Stampede 4X4 VXL in order to build a truck strong enough to withstand the most punishing drivers on the toughest terrain.

Features

Clipless ProGraphix® Body

• Easy one-handed removal
• Reinforced inner cage

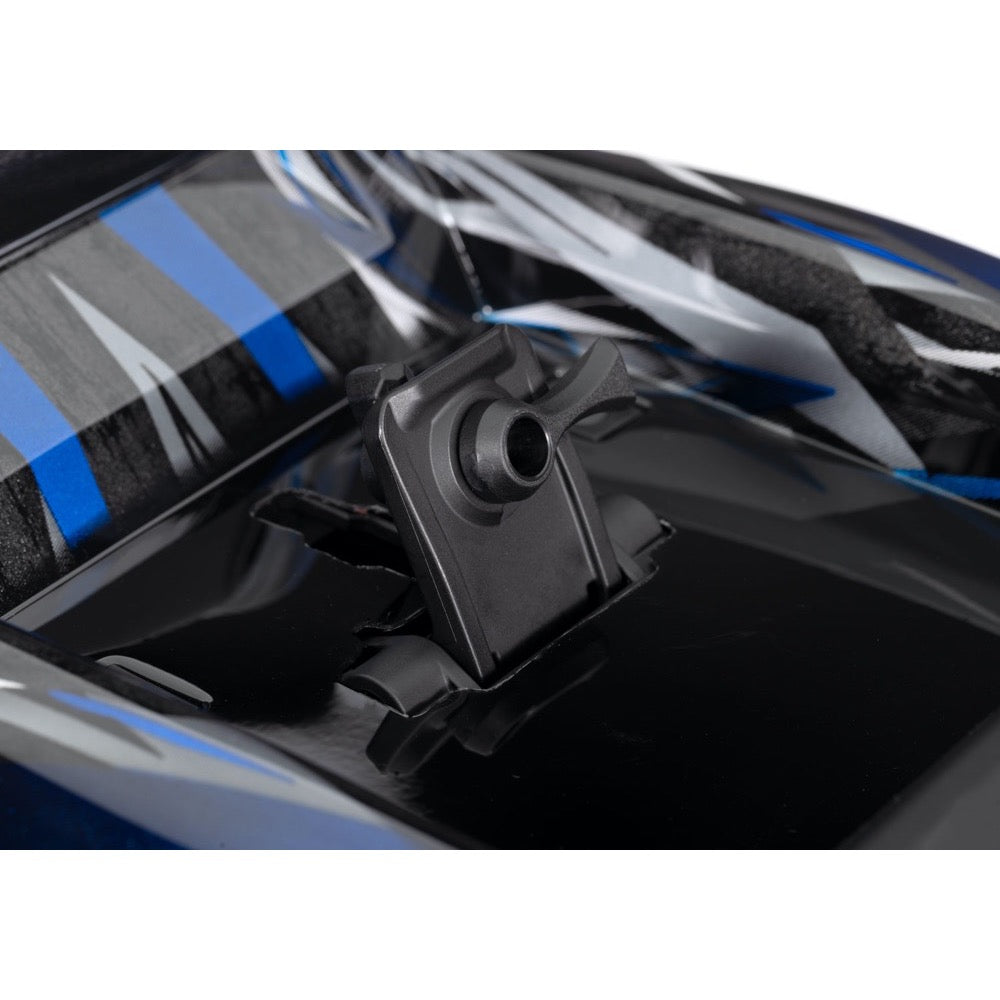

• Strong oversized latch
• Rugged roof rollover protector
• Tailgate protector

Extreme Heavy Duty Upgrade Kit Installed

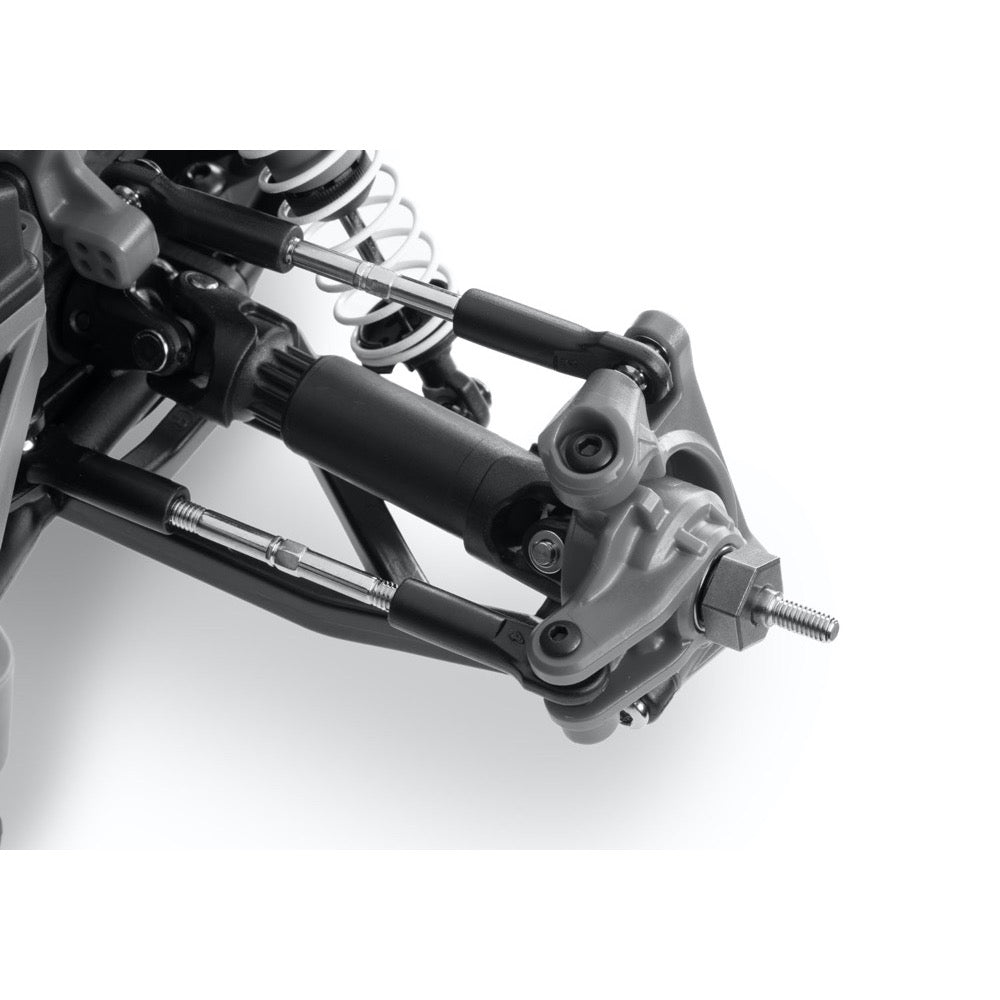

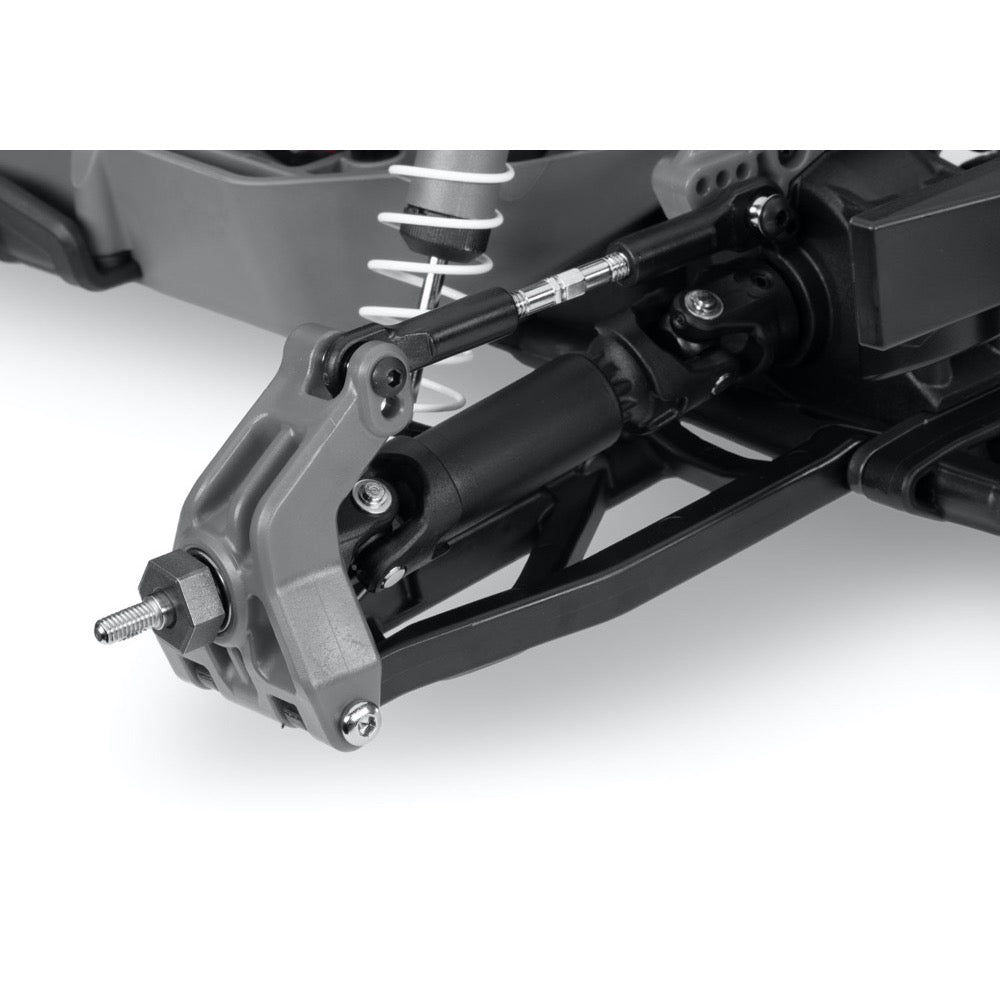

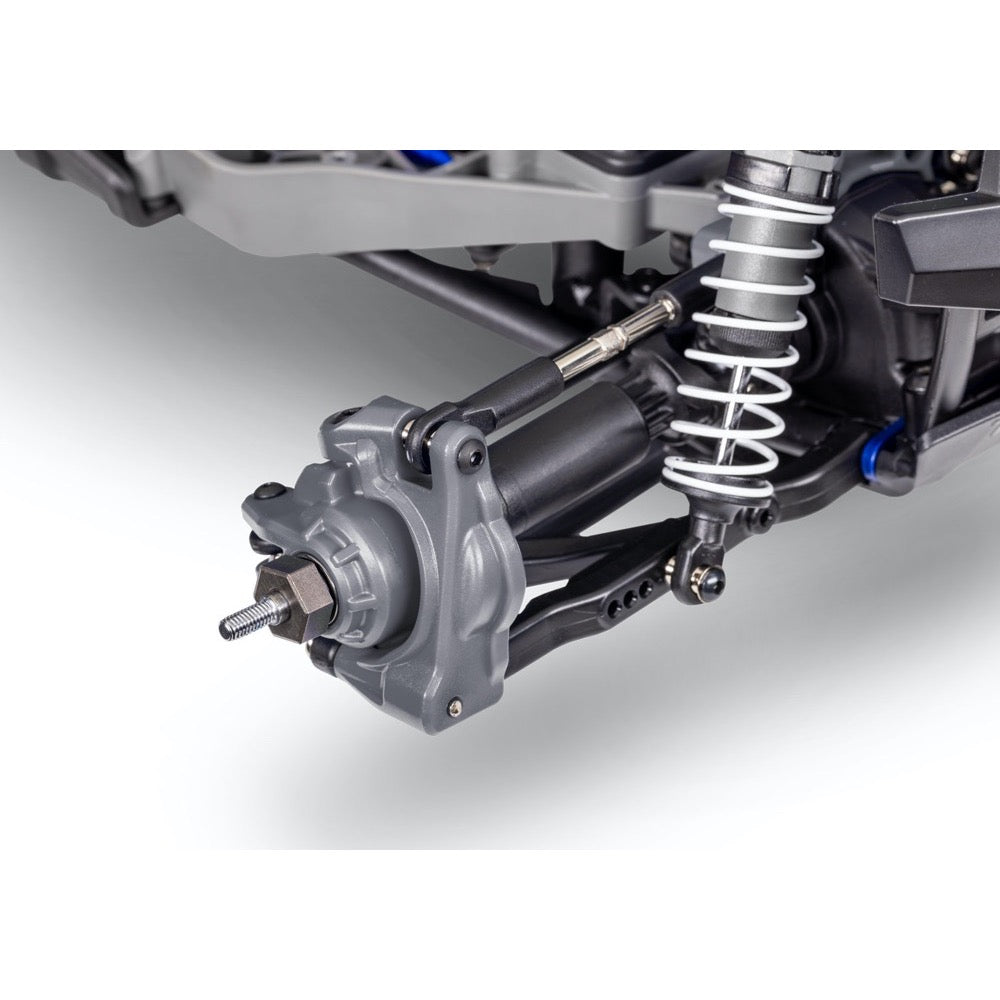

• Strengthened C-hubs, axle carriers, and steering blocks
• Maxx duty driveshafts
• Oversize diameter
• 6 mm axles
• Steel wheel hexes

Up to 60+ mph with 3s LiPo battery

TQi™ 2.4 GHz High Output Radio System

• TQi 2-channel transmitter
• Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
• Programmable multi-function knob
• Adjustable steering and throttle percentage (dual rates)
• Adjustable steering and throttle sensitivity (exponential)
• Adjustable steering and throttle end points
• 5-channel micro receiver (6533) with fail-safe security
• Patented waterproof receiver box with easy-access plug

VXL-3s™ Waterproof Electronic Speed Control

• Cooling fan with large heat sink
• Three Programmable Drive Profiles:
• Sport Mode - Forward / Brake / Reverse
• Race Mode - Forward / Brake
• Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• Large heat sink
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
• LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)

Velineon® 540XL Brushless Motor

• Long-format brushless motor
• 4-pole 2400 kV
• 5 mm output shaft
• Efficient, high-speed ball bearings
• Precision-balanced rotor
• Brilliant blue-anodized finish

Traxxas Stability Management® (TSM)

• Improves straight line acceleration and braking on low-traction surfaces
• Maintains steering composure to allow throttle-on powerslides
• Never dulls throttle or slows the truck
• Adjusts from off to 100% assistance from the transmitter

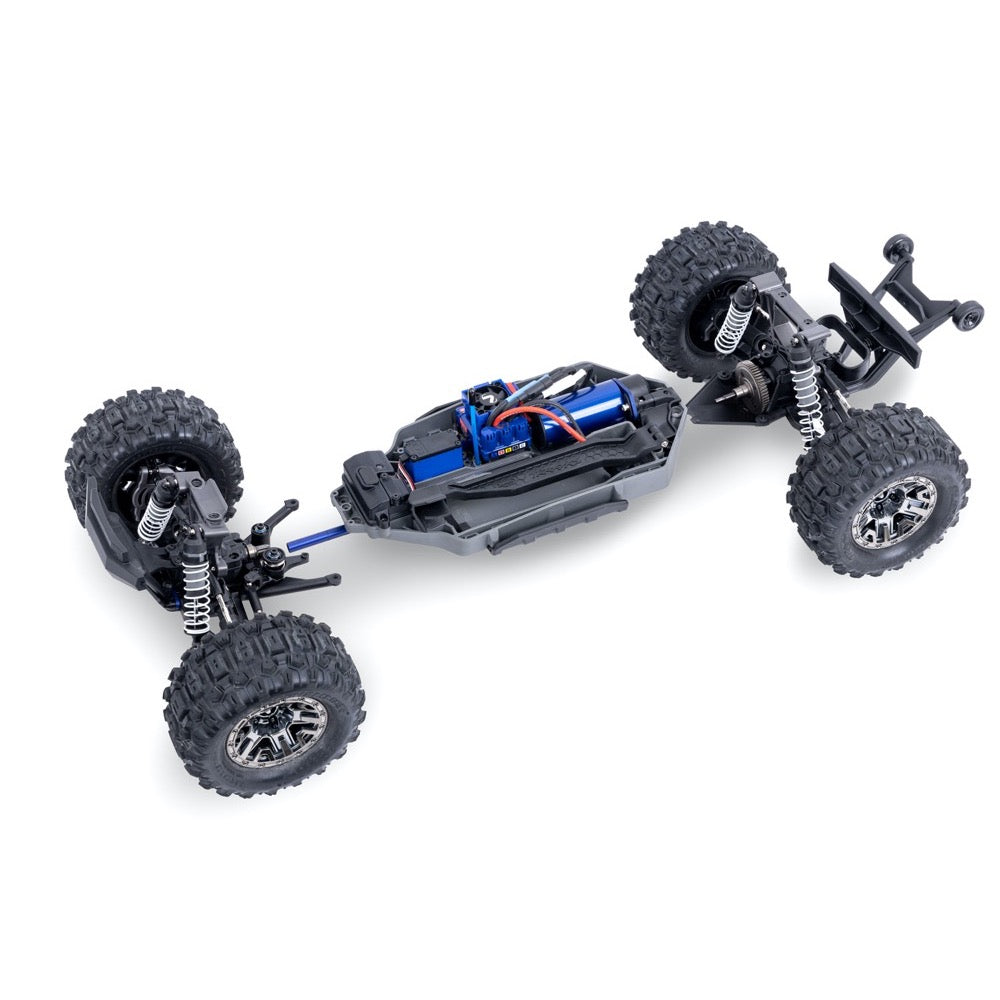

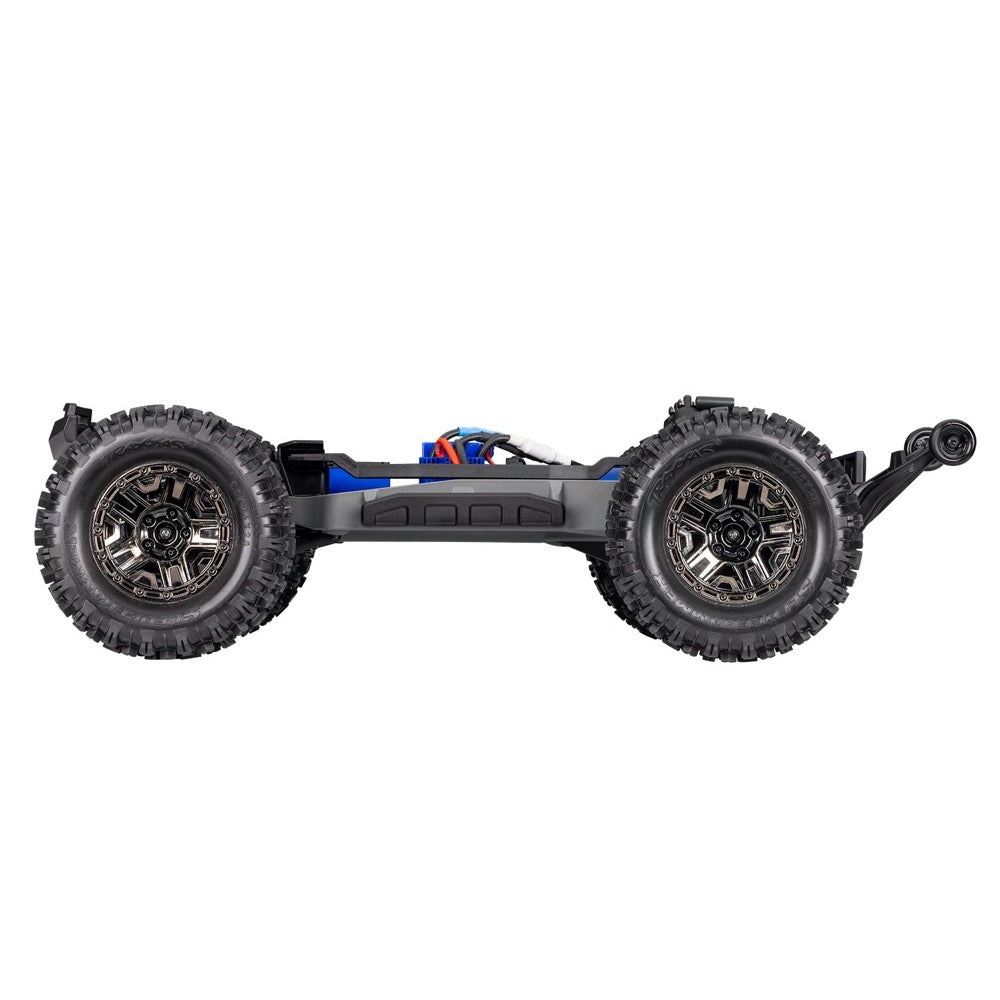

Chassis

• Tall ground clearance design

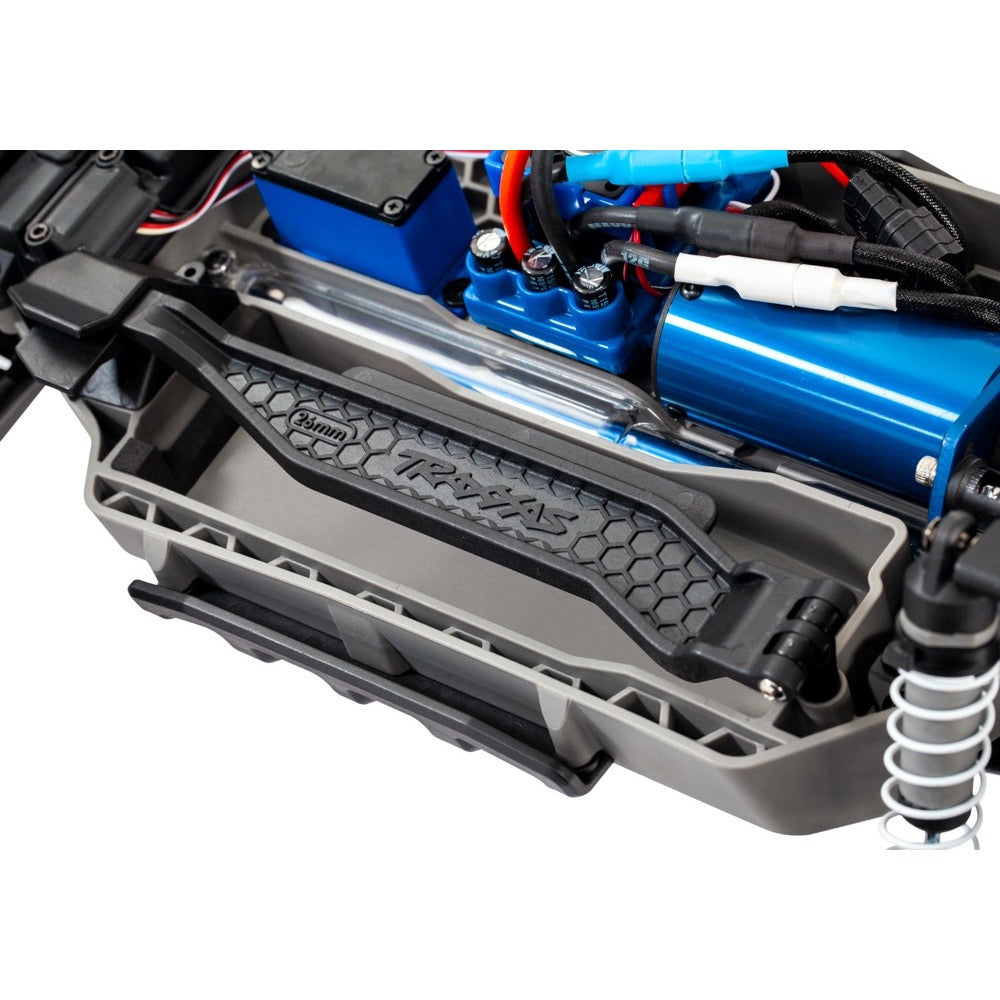

• Secure battery hold-down latch
• Reinforced integrated wheelie bar
• High-approach bumpers
• Integrated nerf bars for side impact resistance

Drivetrain

• Torque-Biasing Center Drive absorbs shocks and distributes power evenly
• Maxx-duty driveshafts
• Sealed steel gear front and rear differentials
• Large 32-pitch steel spur gear
• Anodized-aluminum center driveshaft

Steering

• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver

Suspension

• Adjustable 4 mm steel toe and camber links
• Impact-resistant suspension arm composite

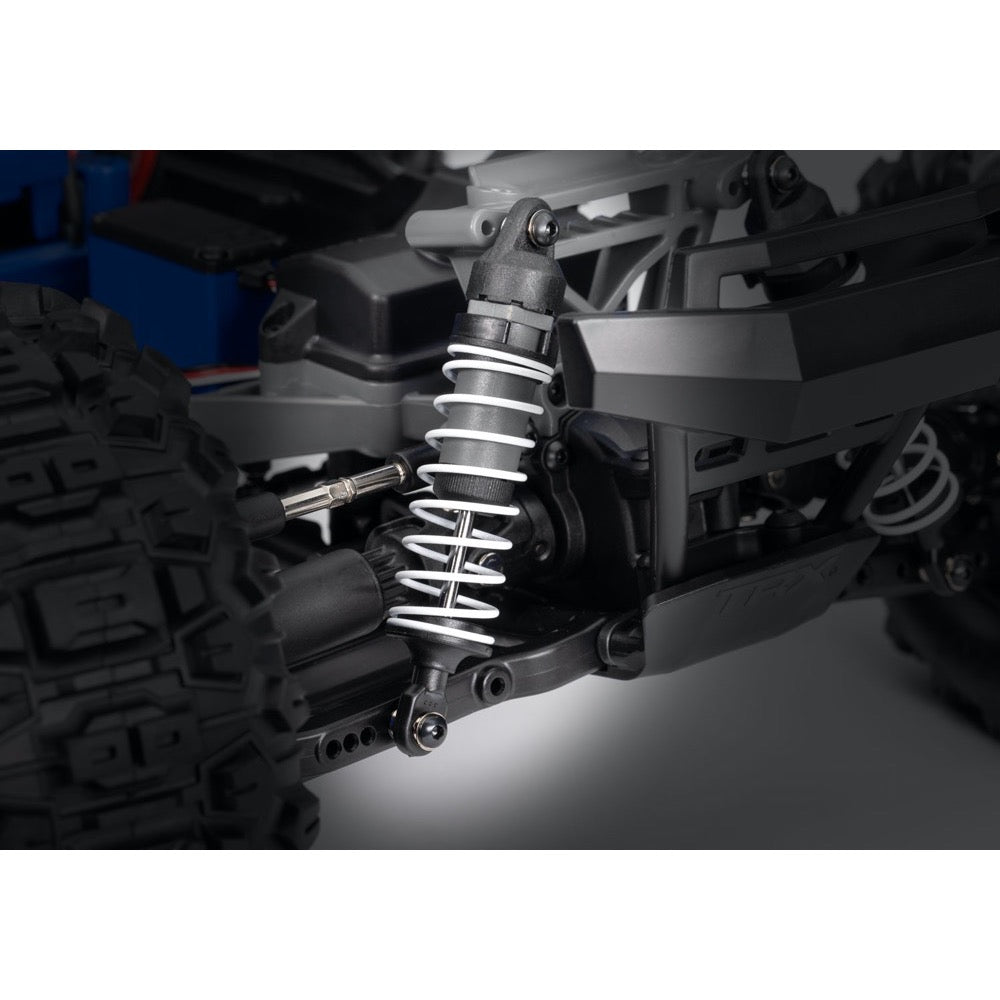

• Oil-filled Ultra Shocks
• Rugged front and rear shock towers
• White powder-coated progressive springs

Wheels and Tires

• Large 2.8″ black chrome wheels
• Tall 5.3″ Sledgehammer® tires

Sealed Ball Bearings

Hex hardware with Rust-Resistant Black Oxide Coating

Contents

• Stampede 4X4 VXL with Velineon VXL-3s and 540XL
• Quick Start Guide
• TQi 2.4G Hz radio system
• High quality maintenance tools

Requires

Batteries

Stampede 4X4 VXL requires a single NiMH or LiPo battery. See full list of batteries

Charger

Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance

AA Alkaline Batteries

Four AA alkaline batteries for the transmitter

• Length : 20.24 inches (514 mm)
• Width : 13.10 inches (333 mm)
• Ground Clearance : 2.75 inches (70 mm)
• Weight : 6.3 pounds (2.9 kg) without batteries
• Height : 8.34 inches (212 mm)
• Wheelbase : 11.62 inches (295 mm)
• Front Shock Length : Long
• Rear Shock Length : XX-long
• Tires (pre-glued) : 5.3″ (133 mm) tall Sledgehammer®
• Wheels : 2.8″ (71 mm) black chrome
• Speed Control : VXL-3s™
• Motor (electric) : Velineon® 540XL brushless
• Transmission : Single speed with Torque-Biasing Center Drive
• Overall Drive Ratio : 10.99:1
• Differentials : Sealed, 2-gear
• Chassis : Modular composite tub
• Brake Type : Electronic
• Drive System : Shaft driven 4WD
• Steering : Dual bellcrank with integrated servo saver
• Radio System : TQi™ 2.4 GHz 2-ch transmitter with 6533 TSM® receiver
• Servo : Waterproof 2075
• Top Speed (optional gearing) : 60+ mph with 3-cell LiPo and 23/50 gearing
• Skill Level : 1
• Battery Compartment :
• 162 mm x 47 mm x 26 mm
• *35 mm with optional battery strap (9026, sold separately)
