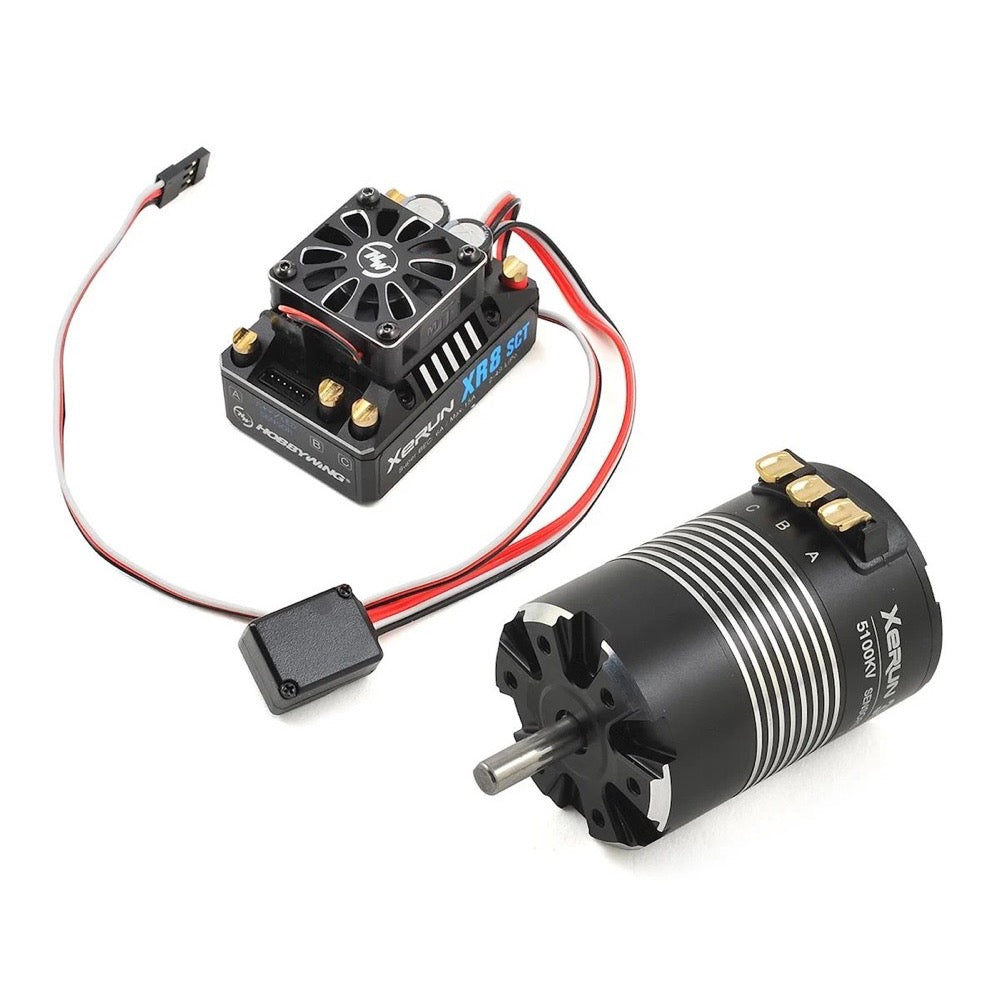

Hobbywing 38020418 Xerun XR8 SCT Brushless ESC/3652SD G2 Motor Combo (5100kV) with 5mm Motor Shaft

Product Code: HW38020418
Barcode: 6938994416184
$279.99
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

ESC

  • Scale: 1/8th 1/10th
  • Brushed/Brushless: Brushless
  • Sensored/Sensorless: Sensored
  • Waterproof: No
  • Cont./Peak Current: 140A/880A
  • Input: 2-4S Lipo/6-12 Cell NiMH
  • BEC Output: Switch Mode:6V/7.4V,6A
  • Input Wires: Red-12AWG-200mm*1/Black--12AWG-200mm*1
  • Output Wires: Blue -12AWG-200mm*1; Yellow-12AWG-200mm*1; Orange -12AWG-200mm*1
  • Input Connectors: No
  • Output Connectors: No
  • Fan Size: 30x30x10mm
  • Fan Voltage Range: 5-7.4V
  • Fan Powered by: Powered by BEC
  • ESC Programing via LCD Program Box: Supported
  • ESC Programing via WiFi Module: Supported *WiFi Module not included and sold separately: part# HWA30503000
  • Program Port: FAN/Program Port
  • Firmware Upgrade: Supported
  • Size: 54.1x37.2x36.1mm
  • Weight: 90.5g
  • Motors: Sensored & Sensorless Brushless Motors
  • Vehicles: 1/10th SCT/Truck/Monster Truck & 1/8th Buggy/On-road Racing

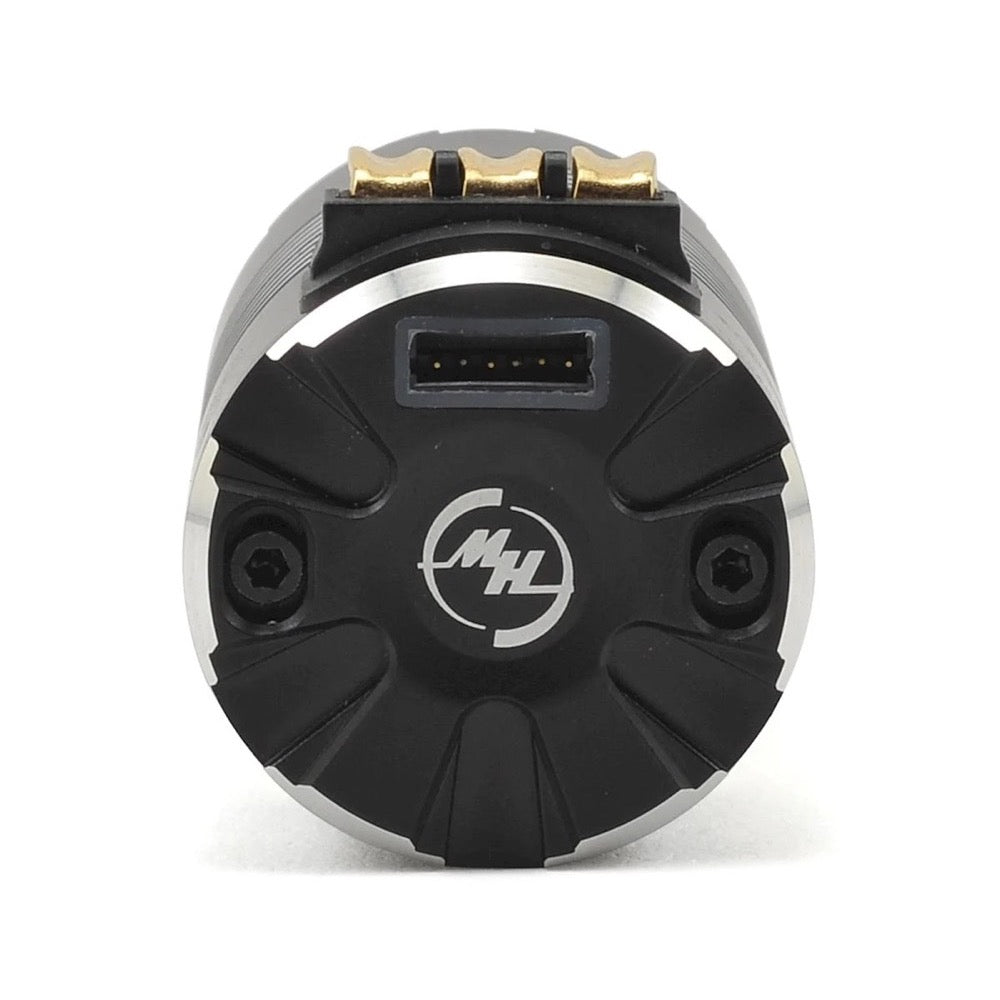

Motor

  • kV (no load): 5100
  • LiPo: 2S
  • Resistance: 4.7
  • No-load Current: 3.5A
  • Motor Diameter: 36mm (1.417in)
  • Motor Length: 52.5mm (2.067in)
  • Shaft Diameter: 5mm (0.197in)
  • Shaft Length: 15mm (0.591in)
  • Poles: 4
  • Weight: 192g (6.60oz)
  • Applications: 1/10 light duty SCT, truck, monster truck
