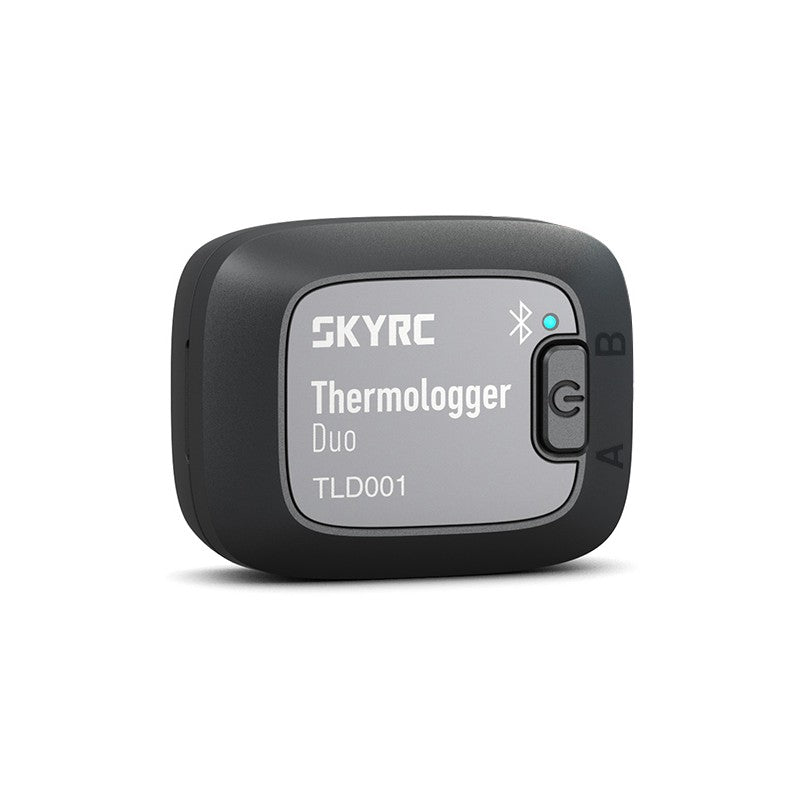

Sky RC 500043 Thermologger Duo

Product Code: SK-500043
Barcode: 6930460007964
$35.09
-
+

Stock levels are subject to continuous change and may vary from store to store. Store transfers and holds available on request by emailing support@metrohobbies.com.au

Right Temperature for Peak Performance

It is a well-known fact that electronics and heat do not mix well, so it is always an advantage if the motor and controller are as cool as possible during operation. After all, that affects performance and longevity. To help drivers monitor temperatures, SkyRC has developed the Thermologger Duo. In contrast to the well-known infrared thermometer, the thermologger offers the advantage that it not only measures the temperature at a specific point in time, but records and monitors it throughout the journey. With this thermograph created in this way, the course of the temperature is displayed in an easily understandable way.

The Thermologger Duo offers precise temperature measurement with amazingly short reaction times at two different points at the same time. A high level of accuracy for temperatures between -20°C (-4°F) and 100°C (212°F) with a deviation of ±2.0°C (35.6°F) is of course essential when creating the graph. The data can then be called up wirelessly via the RC Gears mobile app from SkyRC.

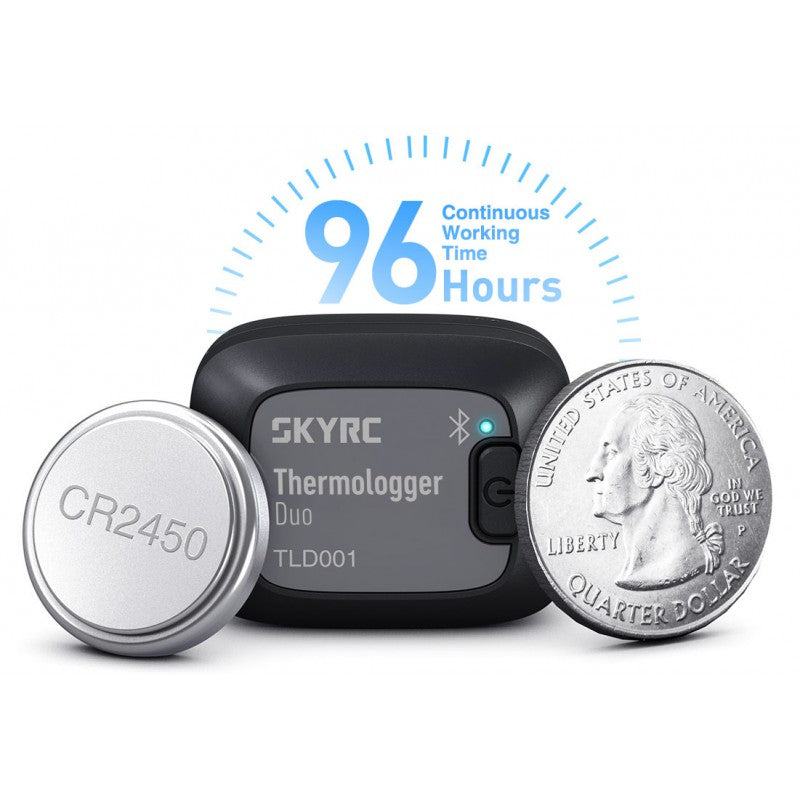

Thermologger Duo is compact in size, but it boasts a long battery life. It is powered by a CR2450 coin cell battery, which is included with the device and lasts for approximately ninety-six hours of continuous work* under normal operation. When the battery eventually runs out, it can be easily replaced by prying open the covers.

*A ninety-six hour battery life is tested by SkyRC labs. There may be some slight differences in the battery life for different batteries and scenarios. Please refer to the actual product for it.

Measure on the Go

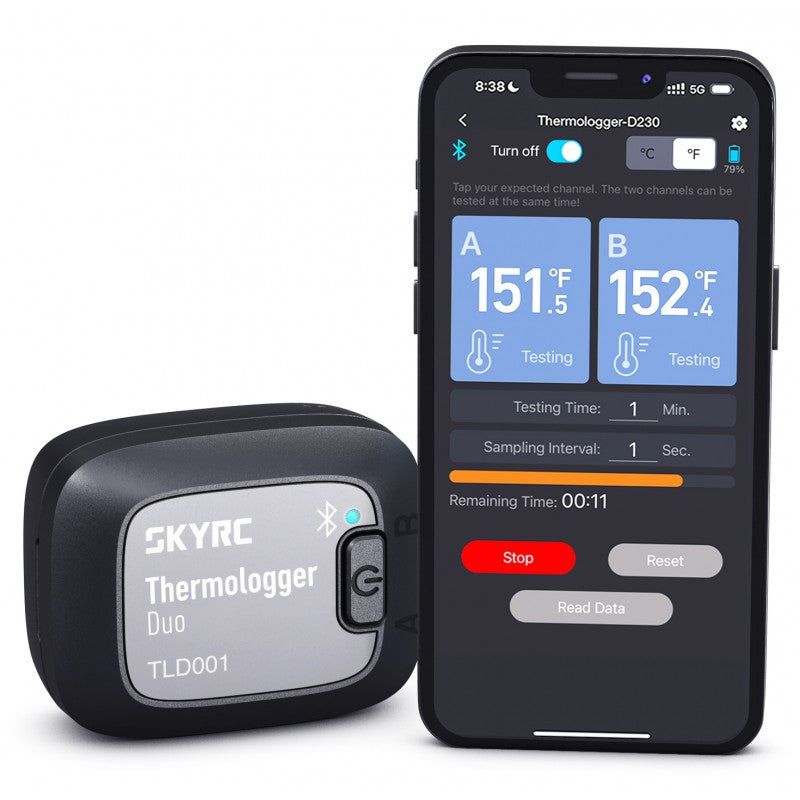

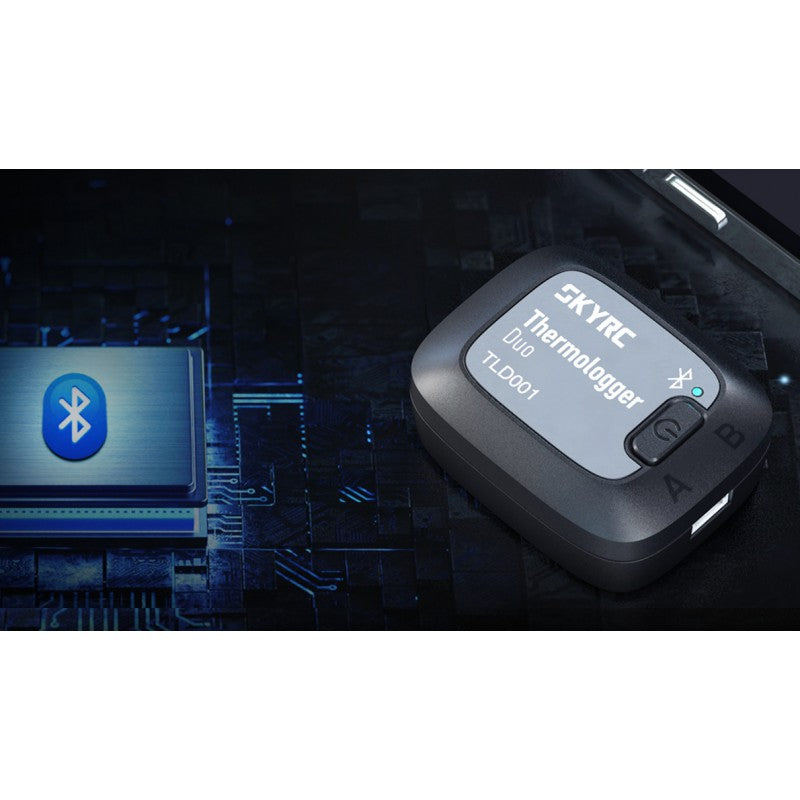

With its built-in Bluetooth, the Thermologger duo allows instant communication via a mobile app. Through the RC Gears app, you can easily read data, check thermograph and troubleshoot problems. Using this free app, you can capture mechanical, electrical and thermal measurements from this wireless-enable thermologger. Measurements can be saved and share with other RC player via text or email showing them exectly what you'r tweaking

Features

  • Ideal helper to protect Your motor and ESC

  • Quick temperature monitoring - At any time

  • Equipped with two thermocouple wires for measuring at two different points

  • Data can be conveniently accessed via Bluetooth and the "RC Gears" app

  • Operated with a CR2450 button cell battery for up to 96 hours of continuous measurement



  • Working Voltage: 2.4V~3.6V
  • Working Current: ＜4.6mA@DC3V
  • Battery Type: CR2450 3V Lithium Coin Battery
  • Measurement Range: -20℃~210℃ (-4℉~410℉)
  • Measurement Accuracy: -20℃~100℃(-4℉~212℉): ±2.0℃(35.6℉), >100℃(212℉): ±2%
  • Thermocouple Cable Length: 30cm
  • Thermocouple Type: Type K
  • Communication: BLE 5.0
  • Range: ≤15m Working Temperature: 0℃~40℃(32℉~104℉)
  • Working Humidity: 5%-90%(no condensation)
  • Storage Temperature: -10℃~50℃(14℉~122℉)
  • Storage Humidity: 1%-75%(no condensation)
  • Size: 38*30*16mm
  • Weight: Approx. 17.5g
