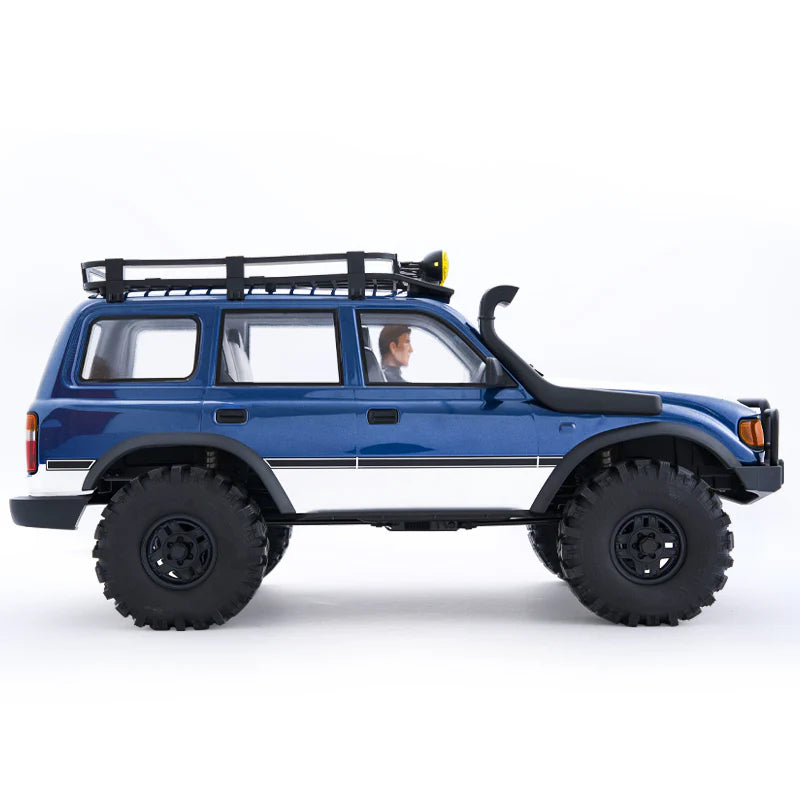

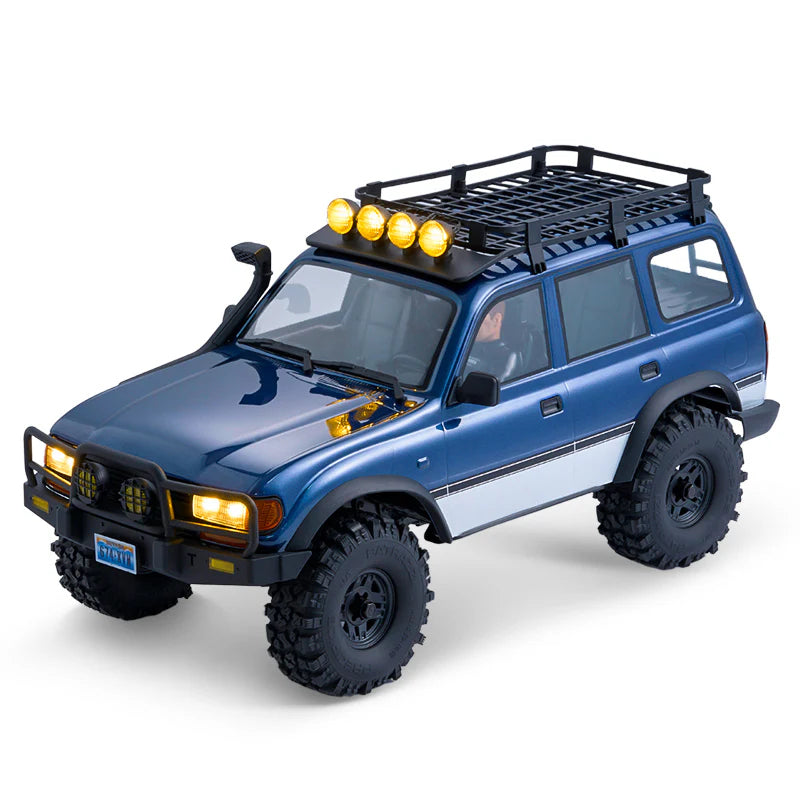

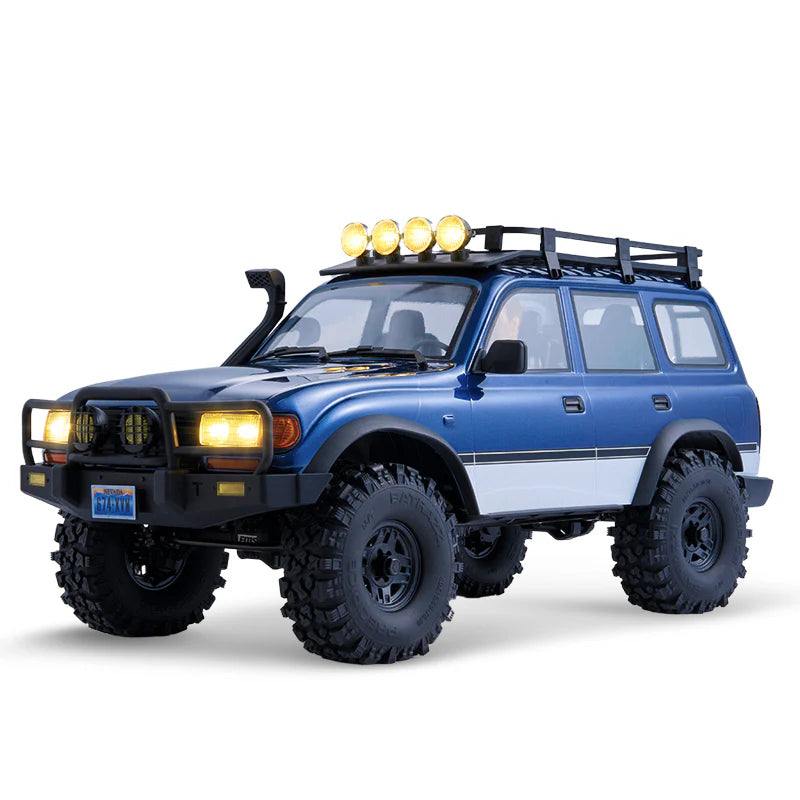

FMS 1/10 FCX10 PRO Toyota Land Cruiser LC80 RS Brushless RC Crawler

Meet the Land Cruiser 80 P, marking the debut of the FCX10 PRO series. The LC80 PRO takes the best of the FCX10 series and elevates it with the FCX10 P chassis—where "P" stands for Performance. It features a higher class 25kg digital servo, a brushless motor, and an independent brushless ESC, ensuring superior off-road performance. Standard features such as switchable 2WD/4WD, lockable front and rear differentials, two-speed transmission, and portal axles, the LC80 PRO is the professional's choice for 1/10 scale brushless RC crawlers.

Outrunner Power System

The LC80 PRO's outrunner power system includes a 50A independent brushless ESC and a 3541 outer rotor brushless motor. Compared to brushed combos, it provides an exceptionally delicate smooth and linear control experience, allowing for snail-like low-sprrd crawling. Meanwhile, the outer rotor structure has excellent dynamic balancing characteristics, which reduces the end effect of the stator winding and improve running performance.

Linear Control

OPS system offers precise linear control, allowing for ultra-slow speed maneuvers with a smooth and stable transition as you gradually increase the throttle.

High Torque

The brushless motor provides high torque, which ensures superior performance at startup and low speeds, delivering rapid acceleration and robust traction capabilities

Waterproof

The 3541 brushless motor is designed for reliable underwater performance, ensuring quality and durabilit while the entire vehicle maintains splash resistance.

Independent ESC

The separate ESC and receiver setup provides greater flexibility and easier maintenance compared to combo units, allowing for lower cost on upgrades or repairs.

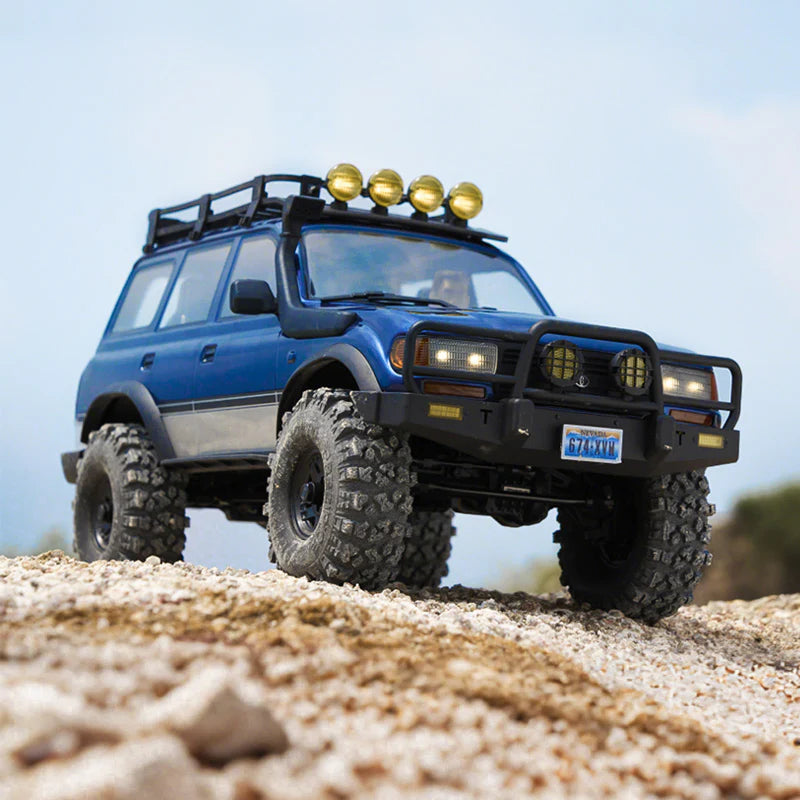

Perfect Appearance, Excellent Performance

Authorized by Toyota, the FCX10 PRO LC80 features a detailed exterior, interior, and lighting system. The car body is crafted from durable PC material, with a premium two-color spray paint process that includes silver powder for a sparkling finish. It also maintains key features like two-speed switching, selectable drive modes, and portal axles, ensuring outstanding performance and versatility.

Ultra Realistic Details

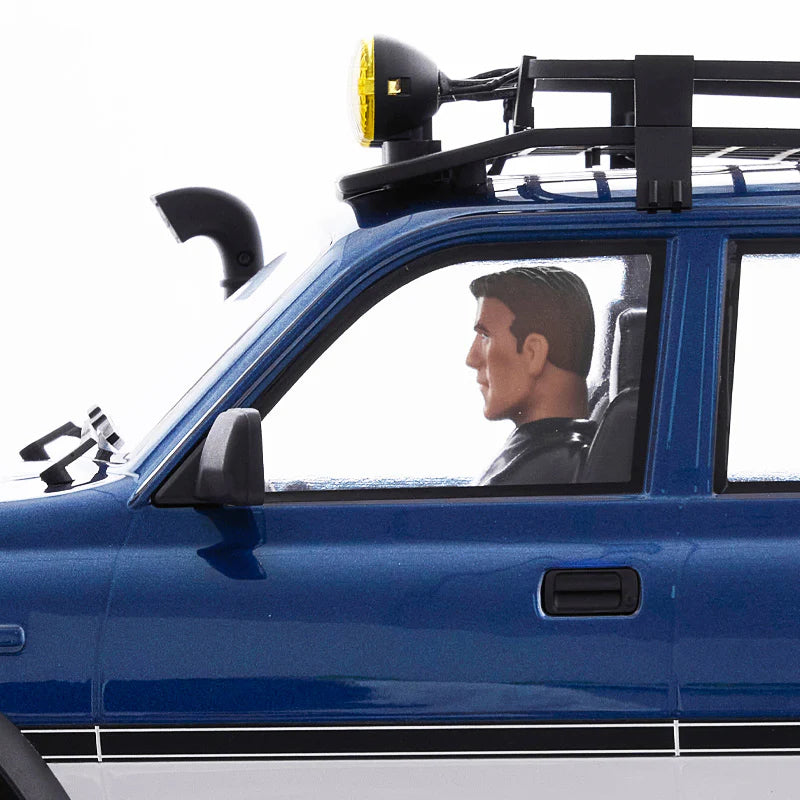

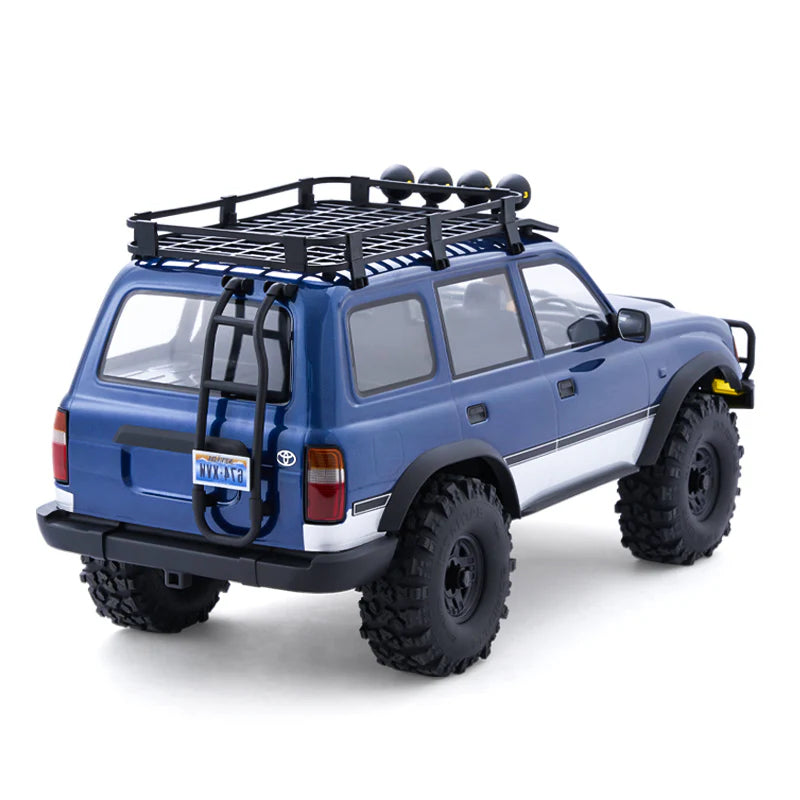

The LC80 PRO is equipped with ultra-realistic features like a snorkel, wipers, door handles, off-road bumper, roof rack, rear ladder, and more. The interior includes a driver figure, dashboard, and steering wheel.

Selectable Drive Modes

The default factory drive mode is RD/4WD/FD, with an optional part available to set DIG/4WD/FD to enhance the hobbyist’s experience.

Two-Speed Transmission

The vehicle features adjustable high and low speed settings, with a maximum speed of 6.2 mph in low gear and 13.7 mph in high gear.

Magnetic Lighting System

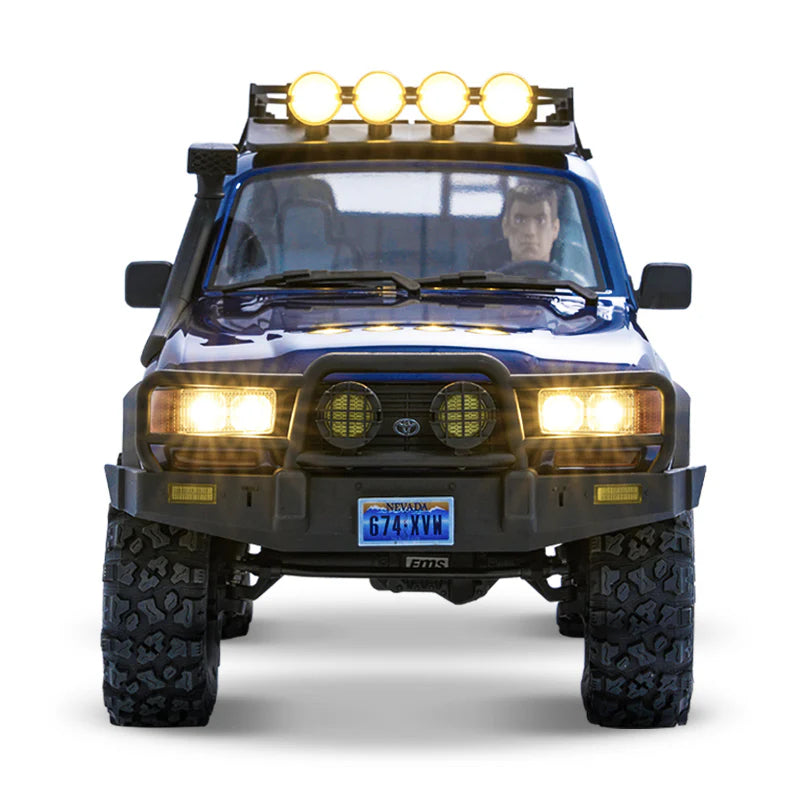

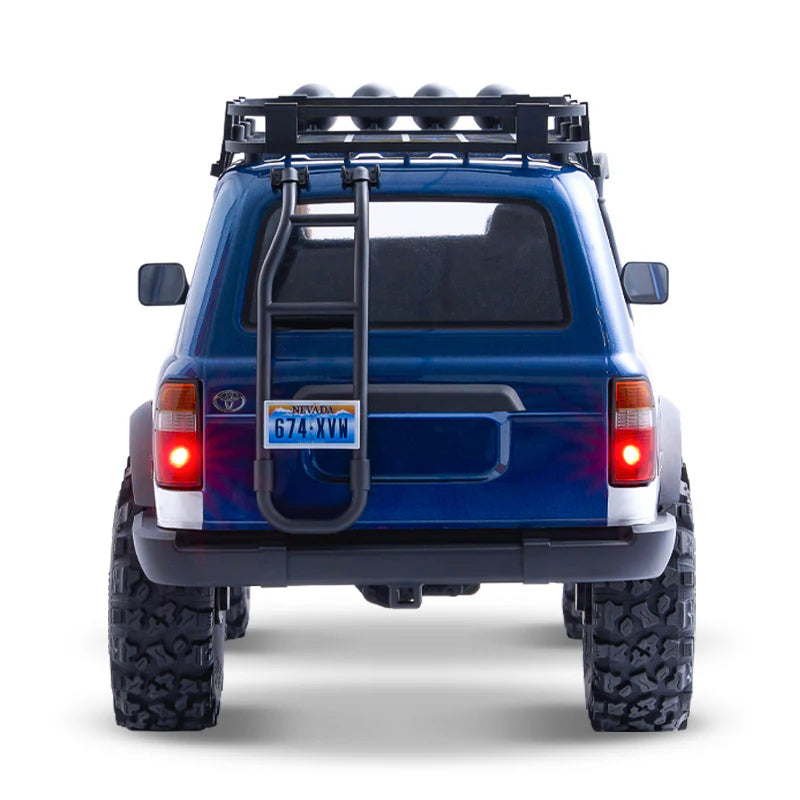

Pre-installed with headlights, front turn signals, side turn signals, rear turn signals, and reverse lights, this lighting system seamlessly draws power through the car shell's magnetic connection to the chassis.

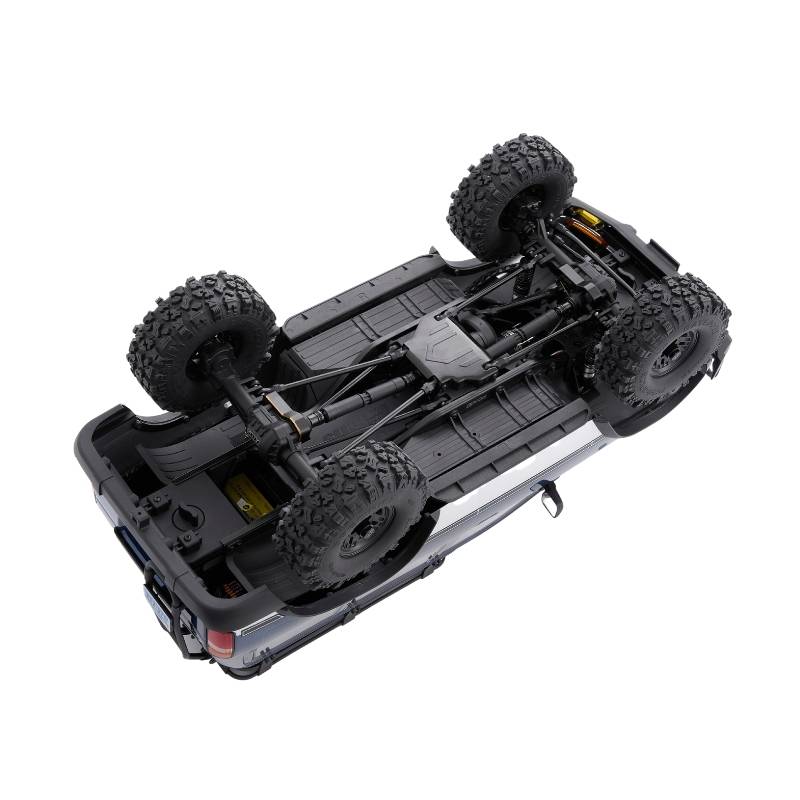

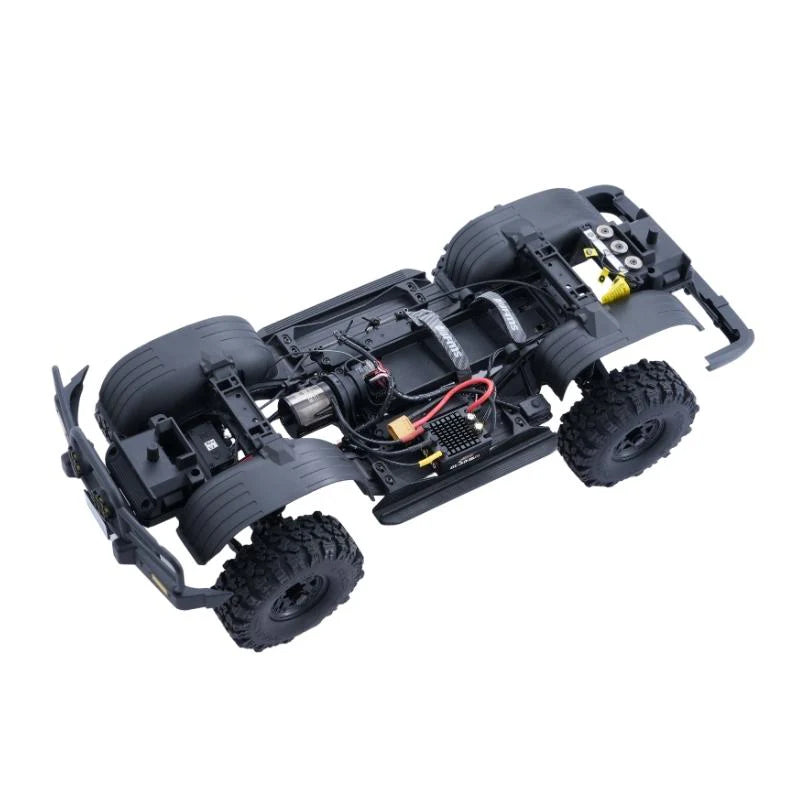

FCX10P LC80 Chassis Components

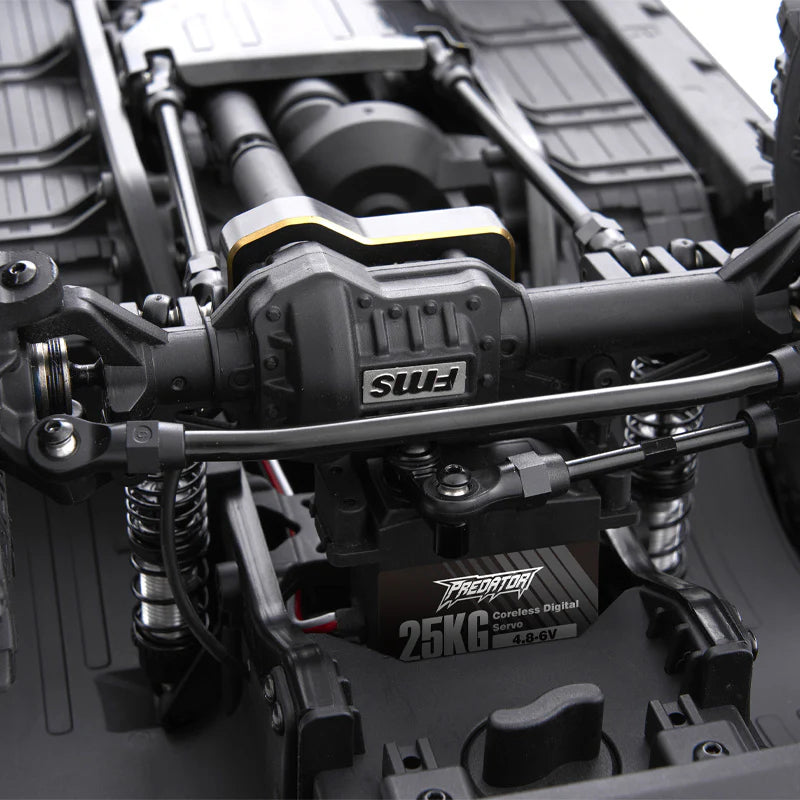

The FCX10P LC80 chassis is engineered with metal for critical parts, including the frame, oil-filled shocks, links, gears, servos, differential lock protector, ball bearings throughout, and differential cable protector, ensuring durability and readiness for the toughest off-road conditions.

Portal Axles

Metal gears increase ground clearance for better off-road performance.

Metal Gears

Straight axle gears, metal transmission gears.

Metal Oil-Filled Shock Absorbers

Adjustable height metal suspension.

Metal Chassis Rails

Provides a strong and stable chassis foundation.

Metal Ball Bearings

Throughout the vehicle.

Metal Links

Radio-Controlled Locking Differentials

Front and rear differentials can be locked individually for superior traction and control.

Independent Receiver

Brushless Motor

Waterproof 3541-KV1500.

Contents

• 1 x 1:10 FCX10 PRO Brushless Toyota Land Cruiser LC80 RS
• 1 x 2.4GHz MG11 Radio
• 1 x R11D-BS Receiver (installed)
• 1 x SL50A 2-3S brushless ESC (installed)
• 1 x 3541-KV1500 brushless motor (installed)
• 1 x Product Manual

Requires

• 4 x AA Batteries for Transmitter
• Battery & Charger for Kit (Recommended 2S or 3S 5000mAh XT60 plug x1)


• Vehicle:1/10 Scale Car
• Car Size (mm):572 x 251 x 288
• Wheel Base (mm):325
• Tire Size (mm):D45 x W120
• Ground Clearance:76mm
• Approach Angle:51°
• Departure Angle:42°
• Motor:3541-KV1500 Brushless Motor
• Recommended Battery:2S or 3S 5000mAh XT60 plug x1
• Battery Compartment:140x47x40mm / 170x47x40mm (without receiver)
• Radio Control:2.4GHz 11CH Radio
• Radio Control Distance:150m in clear space
• Length : 572mm
• Width : 251mm
• Height : 288mm
• Wheelbase : 325mm
• Tire F/R : Φ 45*120mm
• Approach Angle : 51°
• Departure Angle : 42°
• Ground Clearance : 76mm
• Motor : 3541-KV1500 Brushless Motor
• Remote control distance : 150m in clear space
• Remote control : 2.4GHz 11CH Remote Control System
• Recommended Battery : 2S or 3S 5000mAh XT60 plug x1 (Product does not include batteries.)
