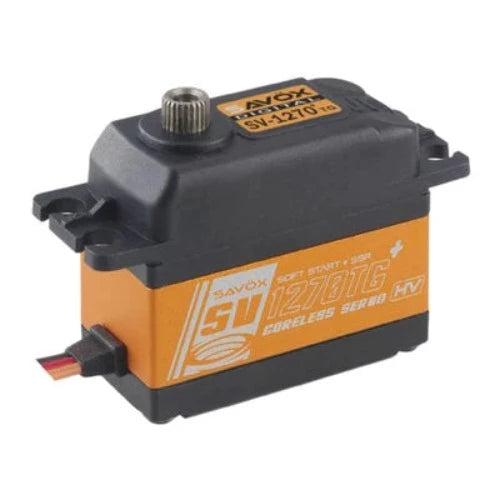

Savox SV1270TGP Coreless Motor .11s/s Digital Servo

The Savox SV-1270TG Plus Digital High Voltage "Monster Torque" Titanium Gear Servo is built to handle extreme requirements, with a great combination of speed and high torque. It's a fantastic choice for 1/8 applications.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features

• Super strong, precision made titanium gears provide durability that will survive heavy use.

• Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications

• The servo that racers desire.

Specifications

• Torque @ 7.4v - 40.0kg/555.5oz-in

• Torque @ 8.4v - 45.0kg/624.9oz-in

• Speed @ 7.4v - 0.11 sec/60 deg

• Speed @ 8.4v - 0.10 sec/60 deg

Technical Details

• Operating Temperature: 14° - 122°F (-10° - 50°C)

• Running Current (no load): 120mA @6.0V, 150mA @7.4V

• Stall Current (at locked): 5500mA @6.0 V, 6800mA @7.4V

• Idle Current: 5mA @4.8V, 5mA @6.0V

• Wire Length: 200 ± 5mm

• Output Gear Spline: 25 Tooth

• Bearings: 2BB

• Operating Travel: 100° (1000 → 2000 µ second)

• Neutral Position: 1500 µ second

• Pulse Width Range: 800 → 2200 µ second

• Maximum Travel: Appx 130° (900 → 2100 µ second)

• Refresh Rate: 333 Hz

• Motor Type: Coreless

Spare Parts

• SGSV1270TG - Servo Gear Set with Bearings, for SV1270TG

• CSV1270TG - Top & Bottom Servo Case with Screws, for SV1270TG
